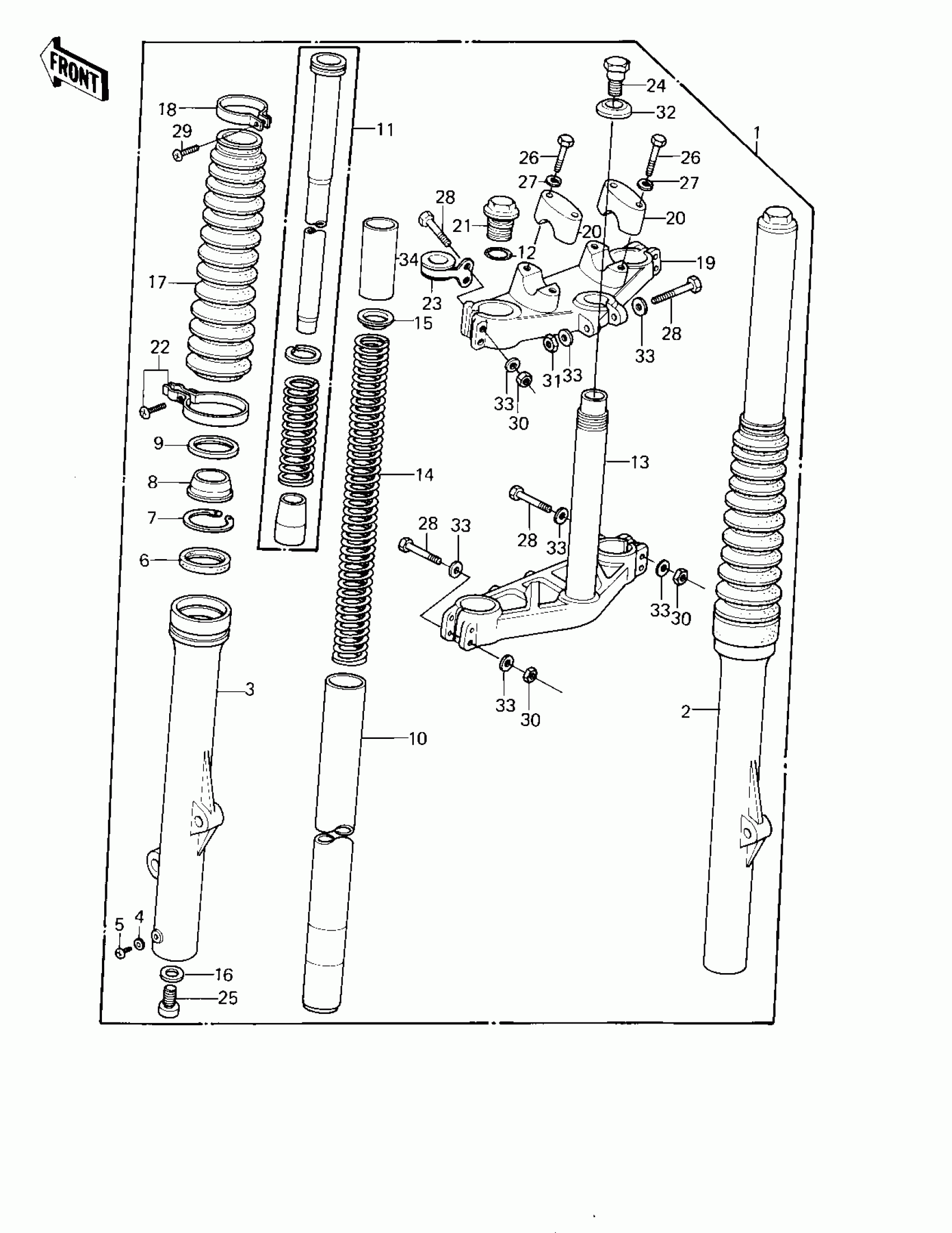

Kawasaki KDX175 FRONT FORK ('80 A1) Diagram

#

Description
Price

1

FORK-FRONT

44001-1120

$1,060.92

2

TUBE,RH,FORK OUTER

44006-1030

$346.84

3

TUBE,LH,FORK OUTER

44005-1030

$346.84

4

GASKET,FORK DRAIN PLUG

44045-002

$3.95

5

SCREW PAN HEAD 4X8

220B0408

Unavailable

6

OIL,SEAL,FORK OUTER

92049-1009

$18.72

7

RING,SNAP,FORK OUTER

92033-1005

Unavailable

8

DUST SHIELD,FORK OUT

92093-1036

Unavailable

9

CASE,DUST SHIELD

32099-1012

Unavailable

10

TUBE,FORK INNER

44013-1041

$143.82

11

CYLINDER-FORK

44022-1030

$118.54

12

RING-O,FORK TOP CAP

92055-1051

$4.85

13

STEM,STEERING

44037-1021

$218.33

14

SPRING,FORK INNER

44026-1043

$39.03

15

GUIDE-FORK SPRING

44028-1004

$10.83

16

GASKET

44045-057

$3.71

17

BOOTS,FORK

49006-1009

$74.37

18

BAND,BOOT

92072-1008

$11.32

19

HEAD,STEERING STEM

44039-1018

$223.61

20

HOLDER,HANDLE BAR

46012-1003

$12.05

21

CAP,FORK TOP

44029-1015

Unavailable

22

BAND,BOOTS L.H.

92072-1011

Unavailable

23

BAND,CABLE

92072-1040

Unavailable

24

BOLT,FORK TOP

44041-065

Unavailable

25

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

26

BOLT

92001-1578

$6.54

27

WASHER SPRING 8MM

461F0800

Unavailable

28

BOLT FLANGED 8X55

92001-1398

$3.49

29

SCREW-PAN-CROS

220B0420

Unavailable

30

NUT-HEX,8MM

311G0800

Unavailable

31

NUT,LOCK,8MM

92015-1124

$4.10

32

WASHER

44043-052

$7.47

33

WASHER PLAIN 8MM

410B0800

Unavailable

34

SPACER,FORK SPRING

92026-1072

$3.81
