1980 Kawasaki KDX175 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

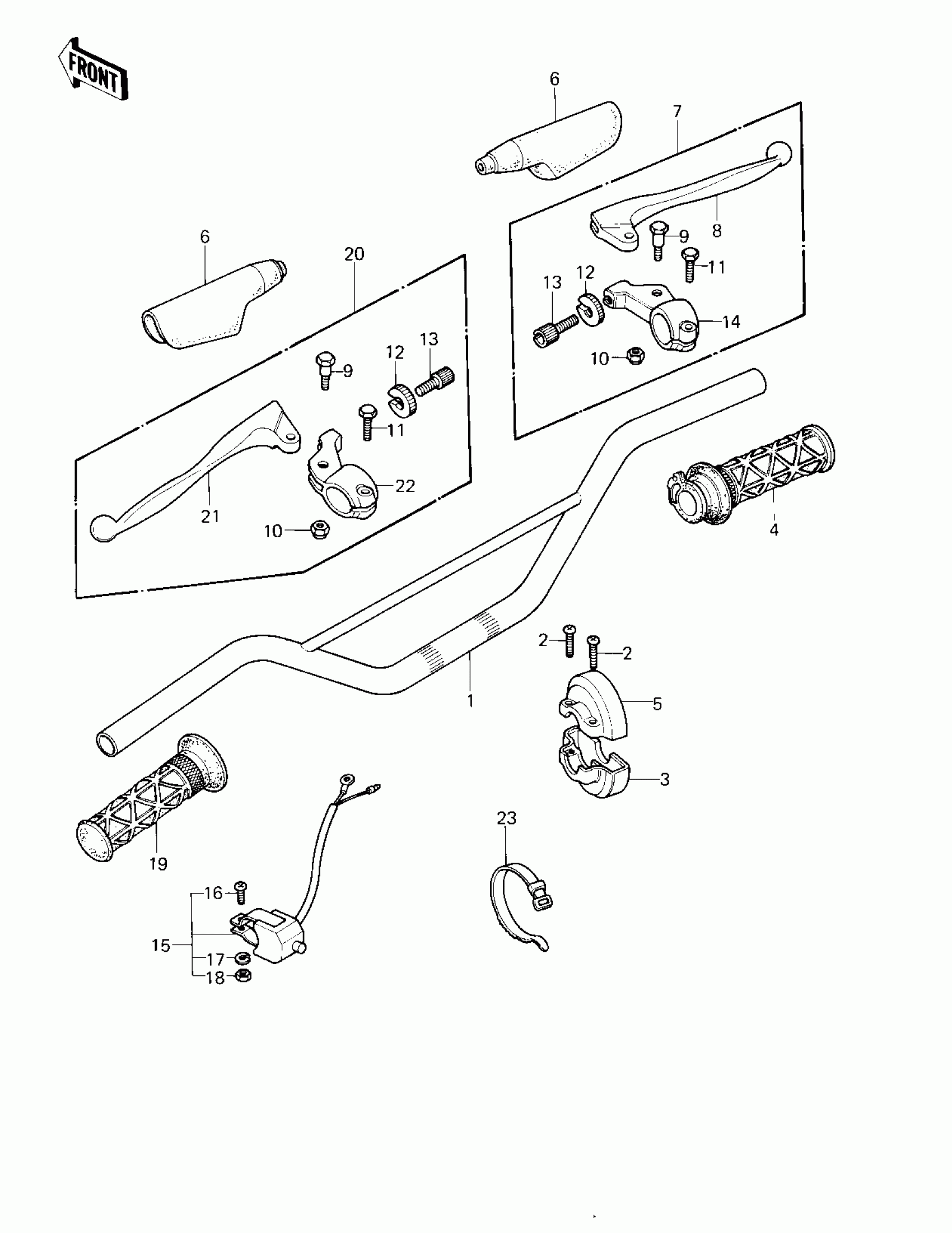

1980 Kawasaki KDX175 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

46003-1054

1

$121.83

In stock

2

SCREW-PAN-CROS

220B0520

1

$0.71

In stock

3

HOUSING CONTROL,R.H.

32099-1011

1
Out of stock

4

GRIP-ASSY

46019-1012

1
Out of stock

5

CASE,R.H,GRIP,UPPER

32099-1014

1
Out of stock

6

DUST COVER

46071-003

1
Out of stock

7

LEVER ASSY,FRONT BRA

46076-1003

1
Out of stock

8

FRONT BRAKE LEVER

46058-018

1

$58.85

In stock

9

BOLT,HEX HEAD,6MM

92001-140

1
Out of stock

10

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

11

BOLT-UPSET

112N0620

1
Out of stock

12

NUT,CABLE ADJUST

46056-006

1

$8.71

In stock

13

1

$14.99

In stock

14

HOLDER,F.BRAKE LEVER

46060-010-21

1

$69.80

In stock

15

SWITCH,ASSY,ENG STOP

27010-1018

1
Out of stock

16

SCREW PAN HEAD 3X14

220E0314A

1
Out of stock

17

WASHER SPRING 3MM

461F0300

1
Out of stock

18

NUT-HEX

311B0300

1

$0.46

In stock

19

GRIP

46075-1015

1
Out of stock

20

LEVER ASSY,CLUTCH

46076-1004

1
Out of stock

21

LEVER, CLUTCH

46092-021

1
Out of stock

22

HOLDER,CLUTCH LEVER

46094-014-21

1

$61.97

In stock

23

BAND,L=123

92072-030

1

$3.97

In stock
