1980 Kawasaki KDX175 Cables/meter Diagram

← All diagrams

Find the part on the Cables/meter diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

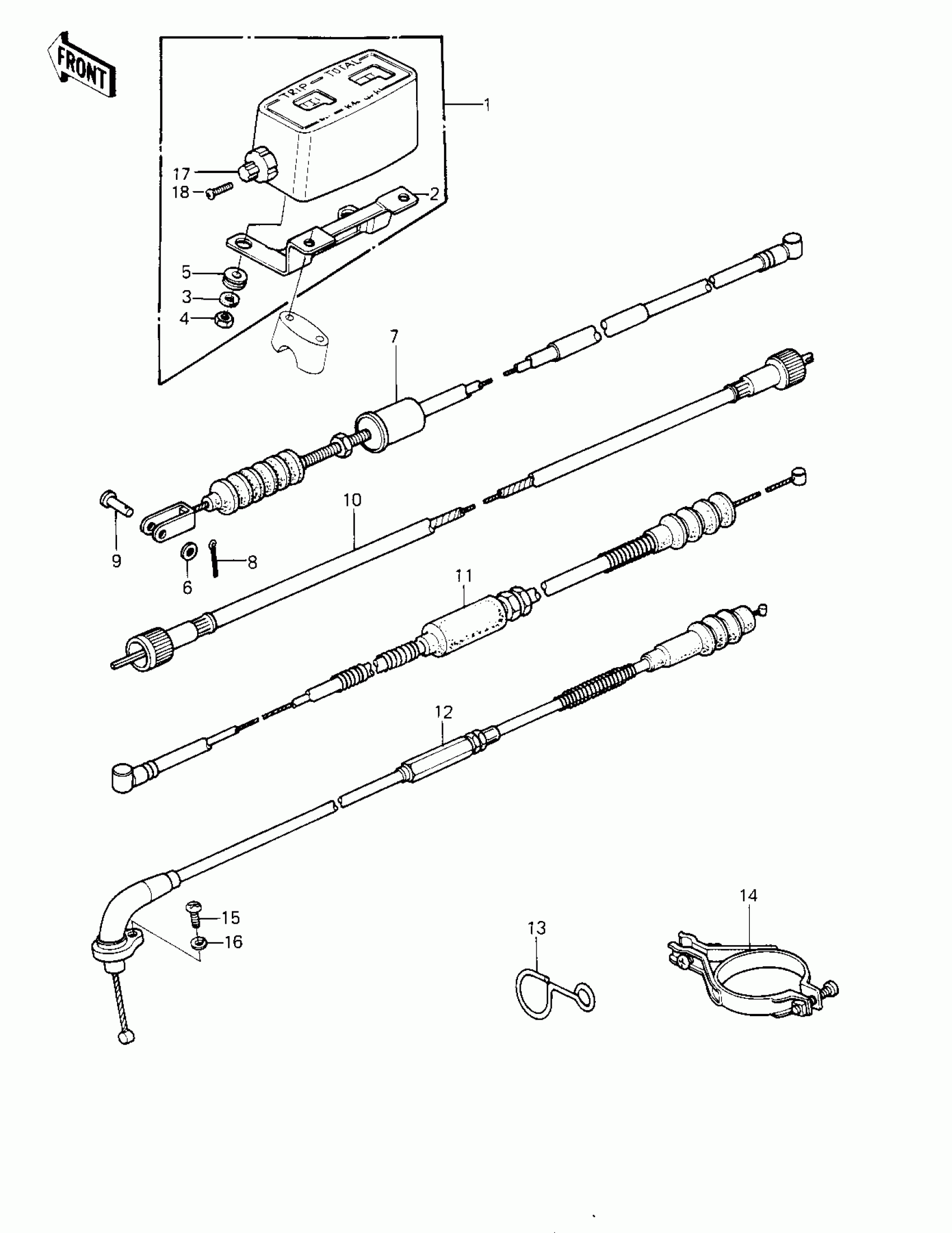

1980 Kawasaki KDX175 Cables/meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY

25001-1099

1

$238.52

In stock

1

METER ASSY,KPH (Canada)

25001-1103

1
Out of stock

2

BRACKET,METER

11034-1574

1
Out of stock

3

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

4

NUT-CAP,5MM

322N0500

1
Out of stock

5

DAMPER,METER

92075-1209

1
Out of stock

6

1

$1.19

In stock

7

CABLE,FRONT BRAKE

54005-1020

1
Out of stock

8

PIN COTTER 2.0X15

550D2015

1
Out of stock

9

PIN,6X17

92043-064

1

$3.72

In stock

10

CABLE,SPEEDOMETER

54001-1020

1

$48.23

In stock

11

CABLE,CLUTCH

54011-1068

1
Out of stock

12

CABLE,THROTTLE

54012-1059

1
Out of stock

13

CLAMP,CABLE

92037-1064

1

$6.82

In stock

14

CLAMP,CABLE

92037-1072

1
Out of stock

15

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

16

WASHER SPRING 5MM

461F0500

1
Out of stock

17

KNOB,METER TRIP

92077-1013

1
Out of stock

18

SCREW,2X6

92009-1159

1
Out of stock
