1980 Kawasaki KDX175 Ignition/generator Diagram

← All diagrams

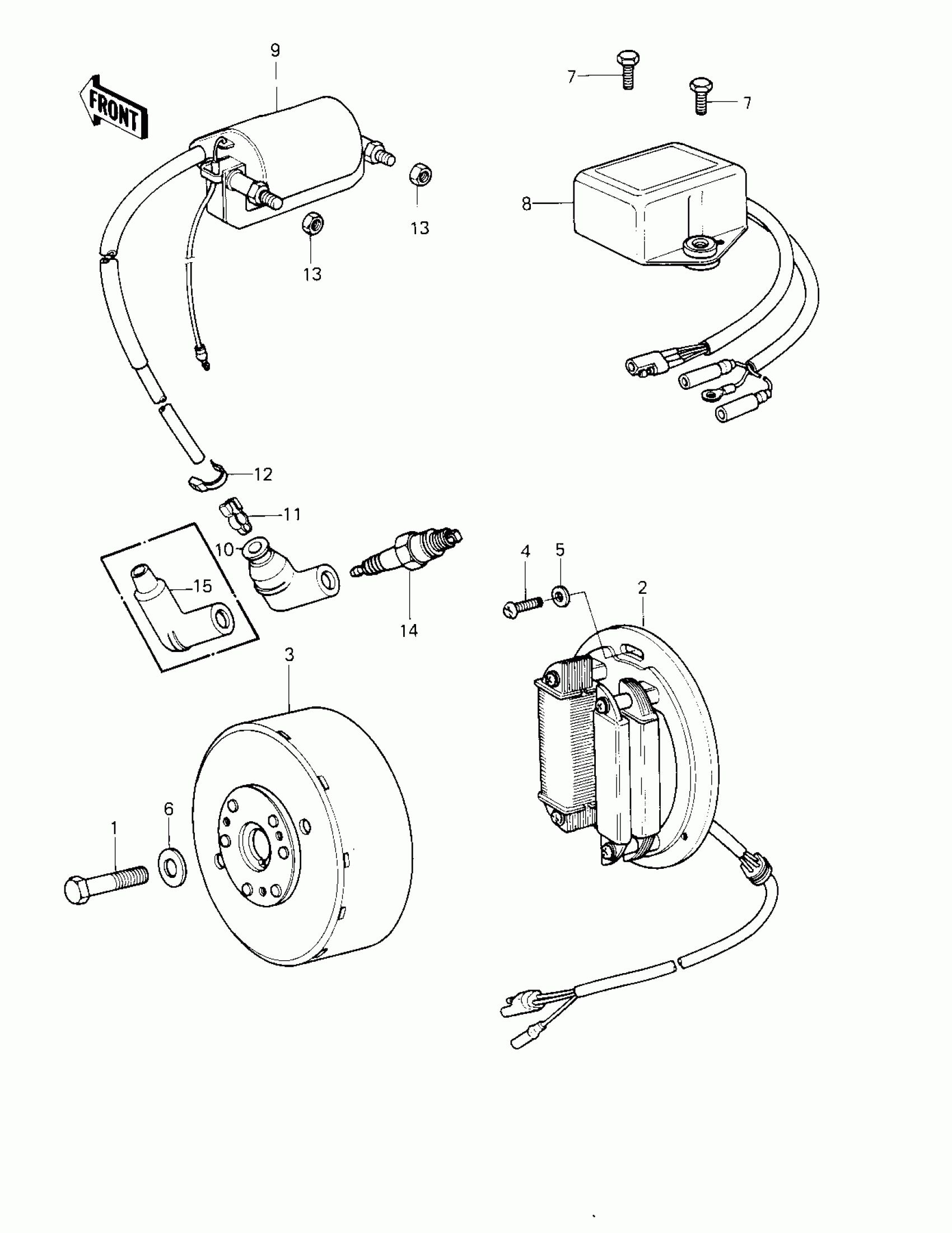

Find the part on the Ignition/generator diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KDX175 Ignition/generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT

92001-1578

1

$6.81

In stock

2

STATOR ASSY,MAGNETO

21003-1029

1

$681.95

In stock

3

FLYWHEEL,MAGNETO

21007-1027

1
Out of stock

4

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

5

1

$1.19

In stock

6

WASHER,8.5X22X3.2

92022-276

1
Out of stock

7

BOLT-UPSET

112G0618

1
Out of stock

8

IGNITER

21119-1015

1

$459.05

In stock

9

COIL,IGNITION

21121-1032

1
Out of stock

10

CAP-SPARK PLUG

21130-1006

1
Out of stock

11

TERMINAL,PLUG CAP

21169-001

1
Out of stock

12

CLAMP

92037-1173

1

$2.92

In stock

13

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

14

SPARK PLUG B9ES

B9ES

1
Out of stock

14

SPARK PLUG BR9EV

92070-3002

1

$11.29

In stock

15

CAP-ASSY-PLUG

21160-1009

1
Out of stock
