1980 Kawasaki KDX175 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

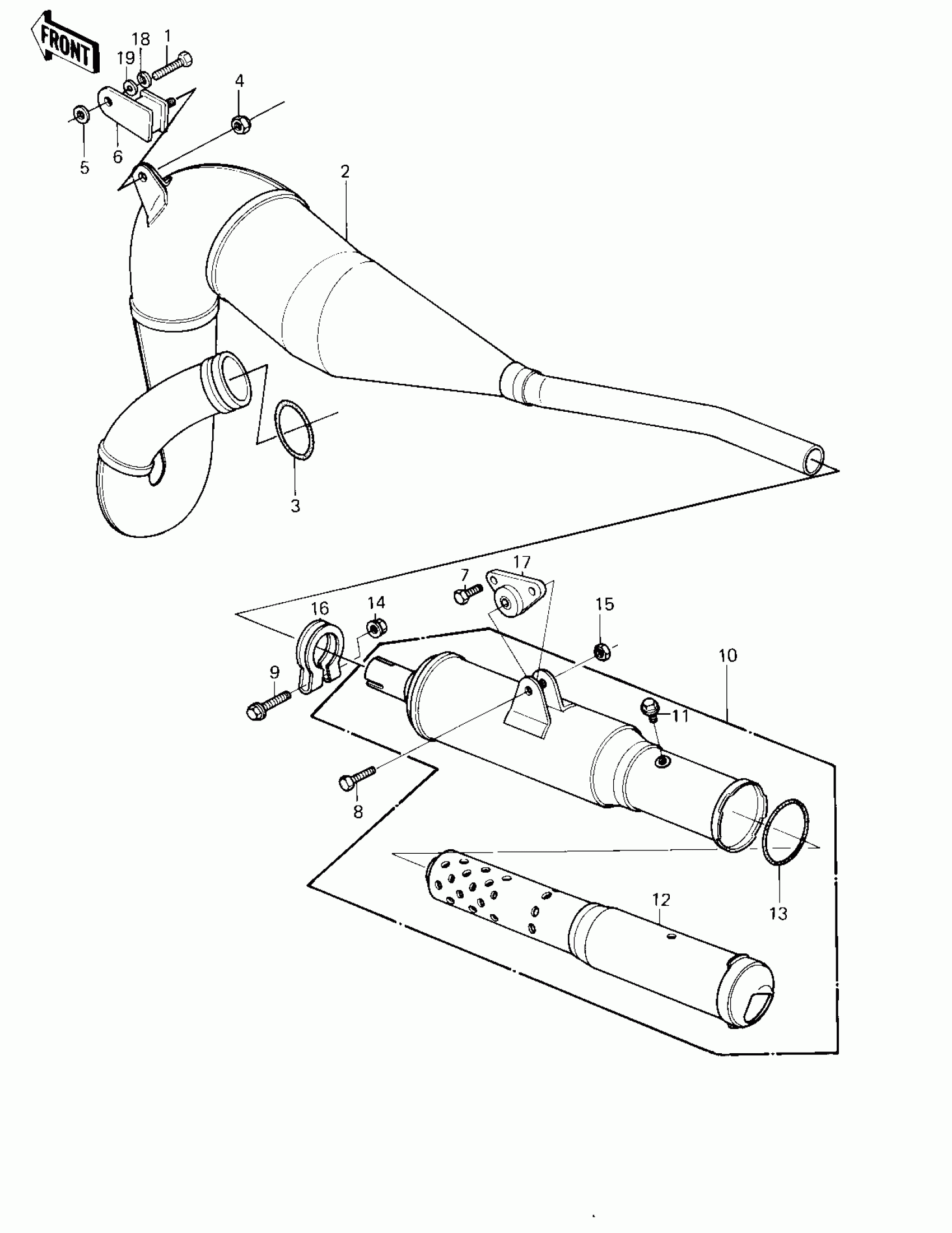

1980 Kawasaki KDX175 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

2

BODY,MUFFLER

18002-1081

1

$405.69

In stock

3

O RING,46MM

670E3046

1

$20.00

In stock

4

NUT,LOCK,8MM

92015-1124

1
Out of stock

5

WASHER 8.5X23.5X4.5

92022-218

1
Out of stock

6

DAMPER,MUFFLER FITING

92075-1060

1
Out of stock

7

BOLT-UPSET

112G0618

1
Out of stock

8

BOLT-UPSET

112G0625

1
Out of stock

9

BOLT,FLANGED,6X35

130H0635

1
Out of stock

10

MUFFLER ASSY

18001-1106

1
Out of stock

11

BOLT-FLANGED,6X8

130B0608

1
Out of stock

12

BUFFLE PIPE,MUFFLER

49099-1025

1

$116.90

In stock

13

"0" RING,50.8MM,MUFL

92055-1077

1
Out of stock

14

NUT,FLANGED,6MM

92015-1078

1
Out of stock

15

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

16

CLAMP,MUFFLER

92037-1169

1
Out of stock

17

DAMPER RUBBER

92075-1046

1
Out of stock

18

WASHER SPRING 8MM

461F0800

1
Out of stock

19

WASHER PLAIN 8MM

411B0800

1
Out of stock
