1980 Kawasaki KDX175 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

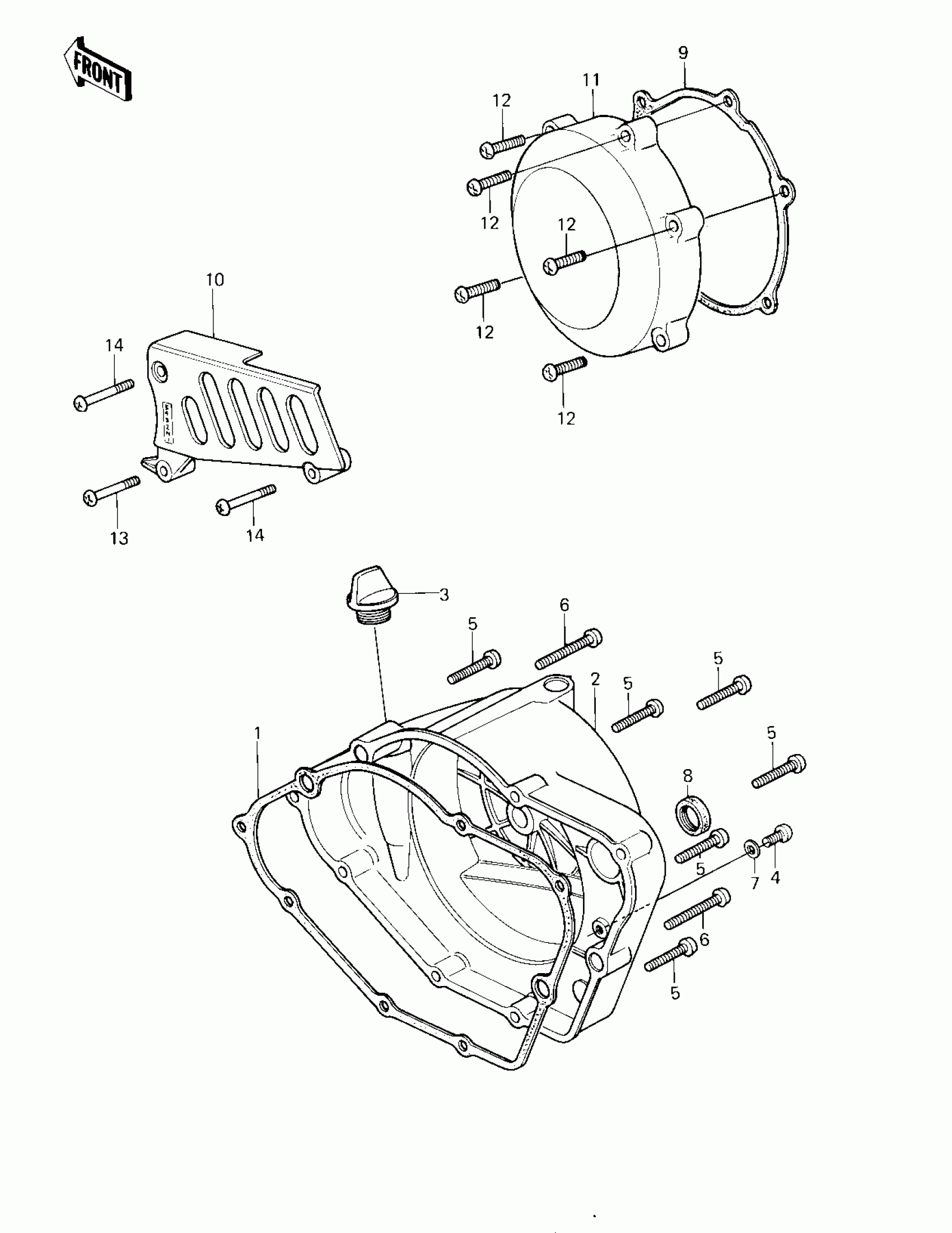

1980 Kawasaki KDX175 Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET,R.H ENGIN CVE

11009-1040

1
Out of stock

2

COVER,RH,ENGINE,F.BL

14032-1034

1
Out of stock

3

CAP-OIL FILLER

16115-018

1

$8.38

In stock

4

1

$0.63

In stock

5

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

6

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

7

1

$3.13

In stock

8

SEAL-OIL,SB16244

92049-002

1
Out of stock

9

GASKET,LH,ENGINE COV

11009-1177

1
Out of stock

10

COVER,FRONT CHAIN

14026-1012-21

1
Out of stock

11

COVER,LH.ENGINE,F.BL

14031-1048

1
Out of stock

12

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

13

1

$1.44

In stock

14

SCREW PAN HEAD 6X40

220B0640

1
Out of stock
