1980 Kawasaki KDX175 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

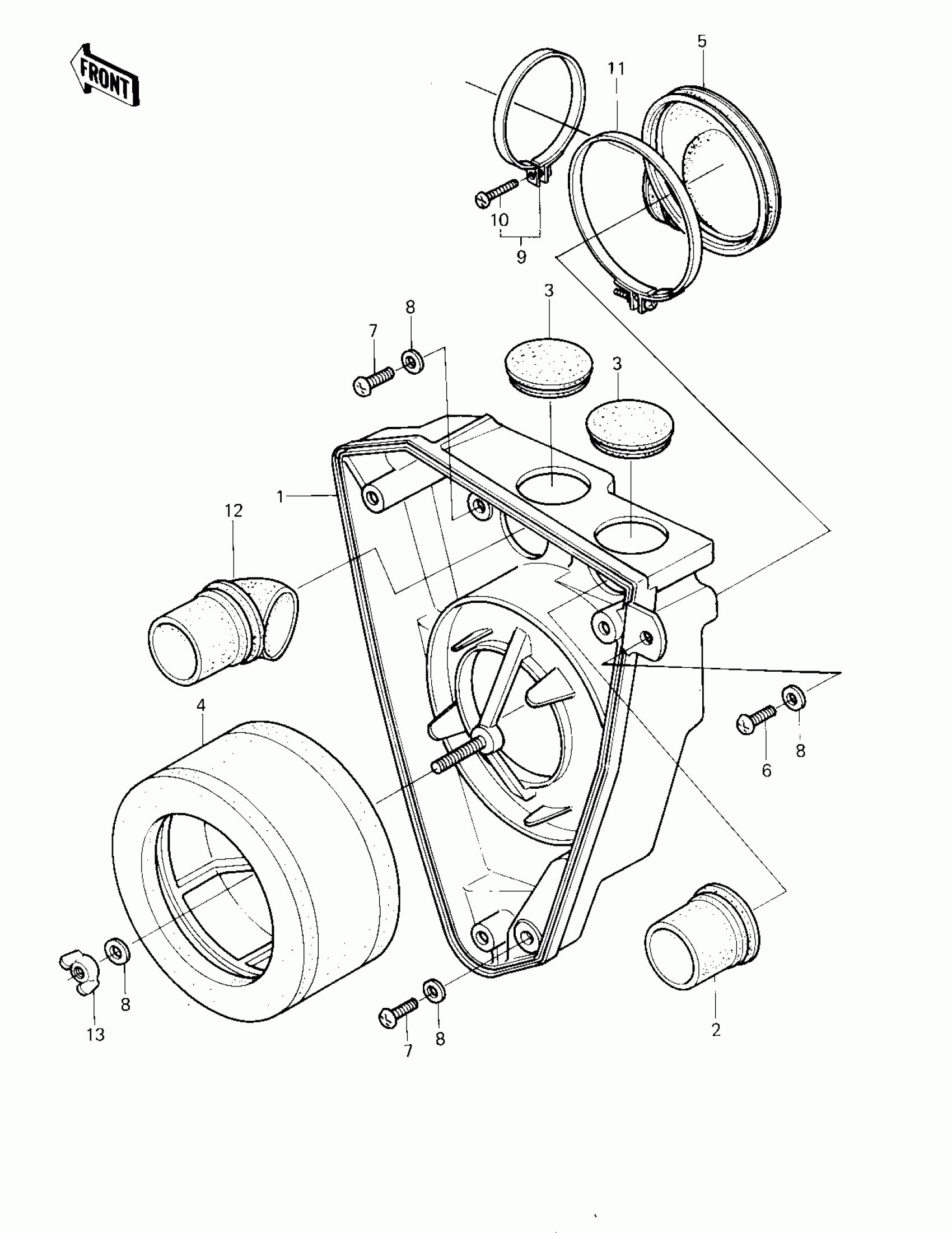

1980 Kawasaki KDX175 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY,AIR CLEANER

11011-1047

1
Out of stock

2

CAP,AIR CLEANER

11012-1109

1
Out of stock

3

CAP,AIR CLEANER

11012-1111

1
Out of stock

4

ELEMENT,AIR CLNR

11013-1031

1
Out of stock

5

DUCT

14073-1066

1

$41.79

In stock

6

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

7

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

8

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

9

CLAMP,AIR FILTER

92037-171

1

$10.26

In stock

10

SCREW-PAN-CROS

220B0535

1

$2.94

In stock

11

CLAMP,AIR CLANER DUC

92037-1186

1
Out of stock

12

CAP,AIR CLEANER

11012-1123

1
Out of stock

13

NUT,AIR CLEANER CAP

92016-062

1
Out of stock
