Find the part on the Handlebar diagram for your 1982 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

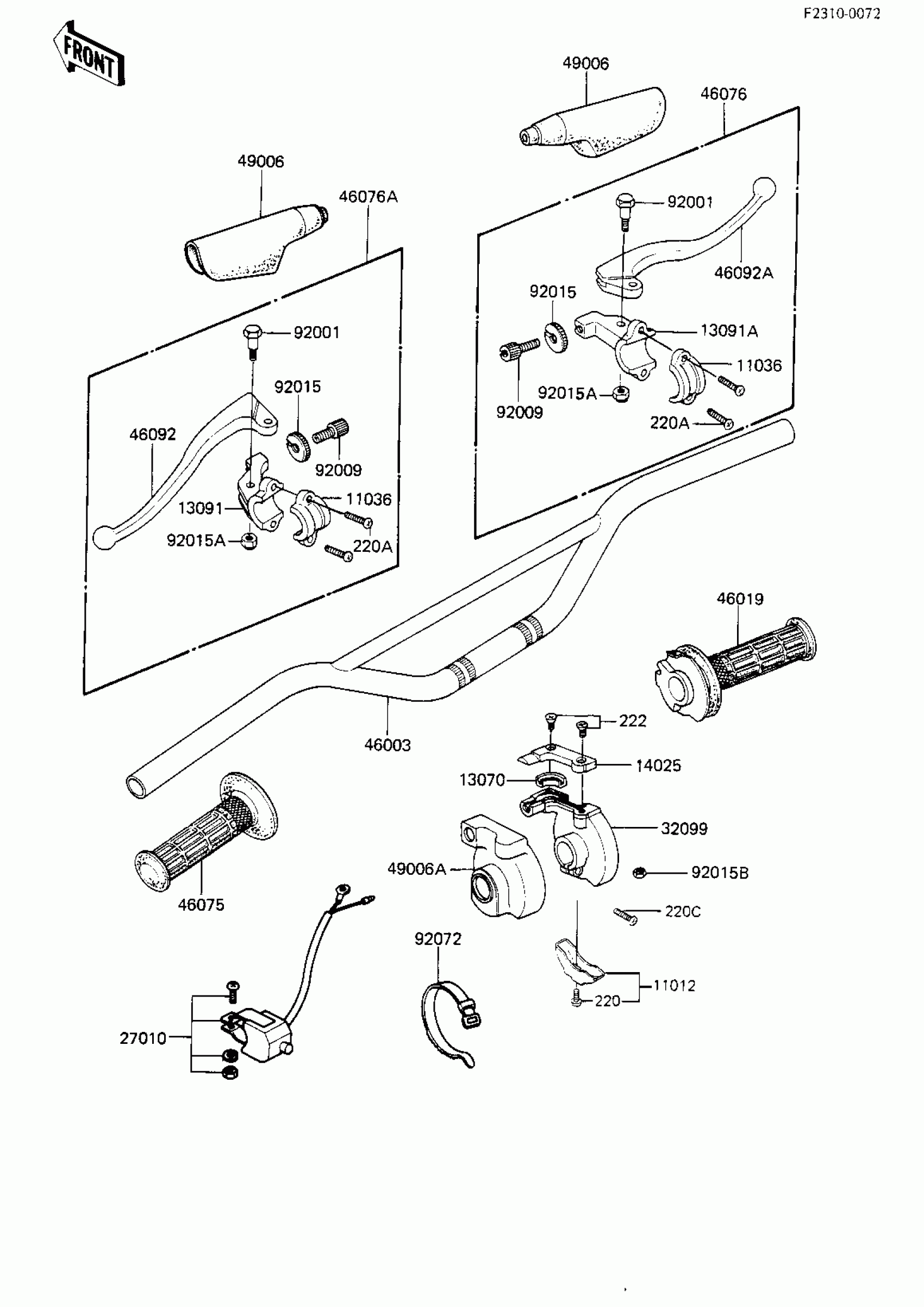

1982 Kawasaki KDX175 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP, THROTTLE CASE

11012-1271

1
Out of stock

11036

BRACKET-A,LEVER HOLDER

11036-1297

1
Out of stock

13070

GUIDE,THROTTLE PEACE

13070-1053

1
Out of stock

13091

HOLDER,CLUTCH LEVER

13091-1131

1

$47.82

In stock

13091A

HOLDER,BRAKE LEVER

13091-1135

1
Out of stock

14025

COVER,THROTTLE UPP,R

14025-1392

1
Out of stock

27010

SWITCH,ASSY,ENG STOP

27010-1018

1
Out of stock

32099

CASE,THROTTLE LWR,RH

32099-1024

1
Out of stock

46003

HANDLEBAR

46003-1054

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-1020

1
Out of stock

46075

GRIP,LH

46075-1024

1

$23.37

In stock

46076

LEVER-ASSY-GRIP

46076-1120

1
Out of stock

46076A

1

$62.52

In stock

46092

LEVER-GRIP,CLUTCH

46092-1110

1
Out of stock

46092A

LEVER-GRIP,BRAKE

46092-1109

1
Out of stock

49006

DUST COVER

46071-003

1
Out of stock

49006A

BOOT,THROTTLE CASE,R

49006-1082

1
Out of stock

92001

BOLT,HEX HEAD,6MM

92001-140

1
Out of stock

92009

1

$14.99

In stock

92015

NUT,CABLE ADJUST

46056-006

1

$8.71

In stock

92015A

NUT,LOCK,6MM

92019-008

1
Out of stock

92015B

NUT,LOCK,4MM

92019-010

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

220A

SCREW-PAN-CROS

220B0514

1
Out of stock

220B

SCREW-PAN-CROS

220B0520

1
Out of stock

222

SCREW-CSK-RD-CROS,4X12

222E0412A

1
Out of stock
