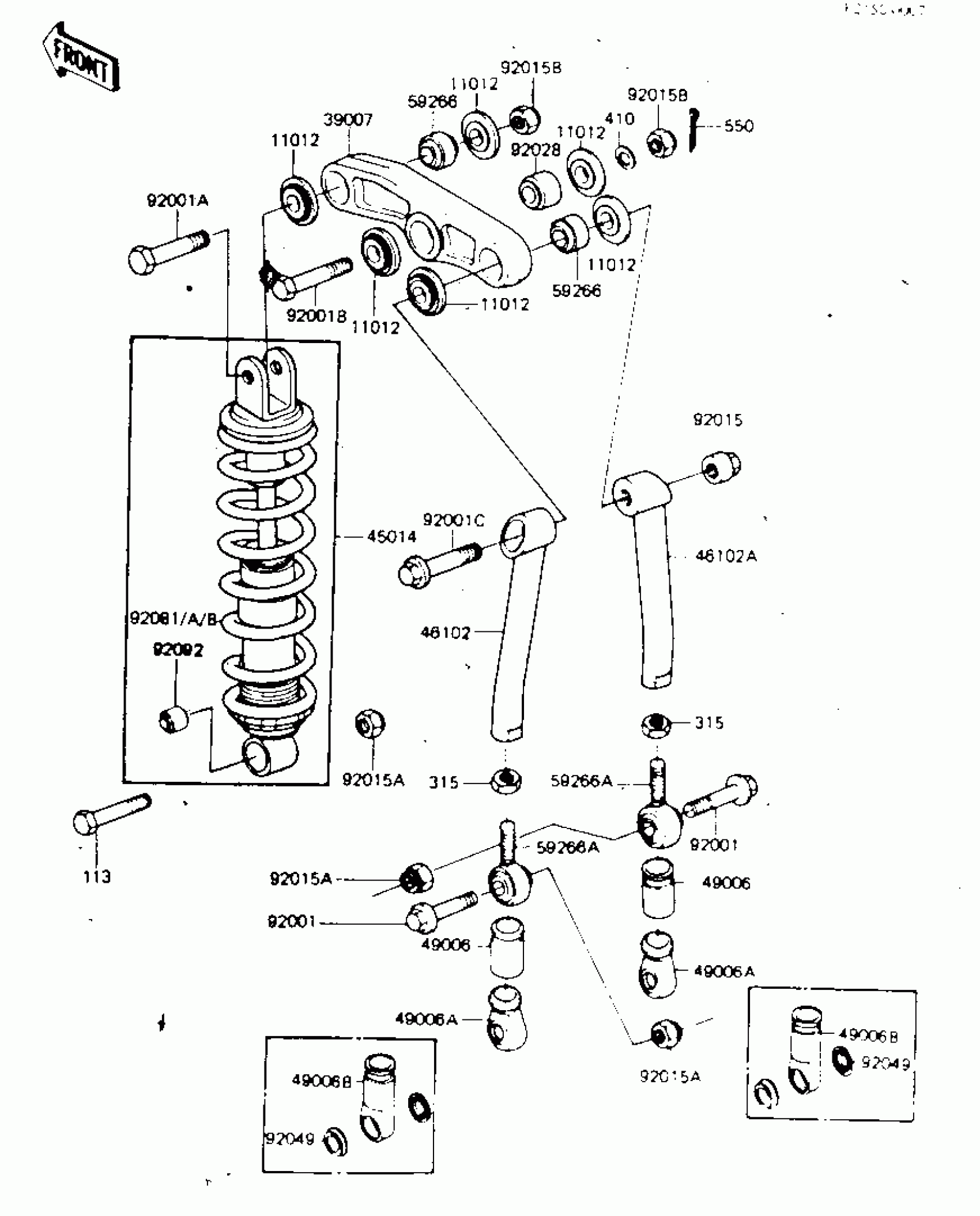

Kawasaki KDX175 REAR SUSPENSION/SHOCK ABSORBER ('81-'82 Diagram

Description

Price

11012

CAP,SUSPENSION ARM

11012-1117

Unavailable

39007

ARM,SUSPENSION

39007-1003

$125.03

45014

SHOCK ABSBR RR

45014-1108

$603.97

46102

ROD,UNITRAK,LH

46102-1020

$62.05

46102A

ROD,UNITRAK,LH

46102-1021

$66.80

59266

JOINT,BALL,SUSPENSIO

59266-1001

$172.33

59266A

JOINT,BALL,SUSPENSIO

59266-1002

Unavailable

92001

BOLT,HEX HEAD,12X40

92001-1306

Unavailable

92001A

BOLT,HEX HEAD,14X50

92001-1317

Unavailable

92001B

BOLT,HEX HEAD,14X60

92001-1335

Unavailable

92001C

BOLT,14X60

92001-1344

Unavailable

92015

NUT,UNITRAK LINK

92015-1123

Unavailable

92015A

NUT-LOCK,12MM

92019-009

$7.20

92015B

NUT-LOCK,14MM

92019-011

Unavailable

92028

BUSHING,SUSPENSION A

92028-1087

Unavailable

92081

SPRING,REAR SHOCK

92081-1315

$315.81

92081A

SPRING,REAR SHOCK

92081-1316

$337.32

92081B

SPRING,REARSHOCK,STD

92081-1338

$315.81

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1008

$35.15

113

BOLT,HEX HEAD,12X55

113P1255A

Unavailable

315

NUT-HEX-FINE

315B1200

Unavailable

410

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

550

PIN-COTTER,2.5X25

550D2525

Unavailable
