1982 Kawasaki KDX175 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1982 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

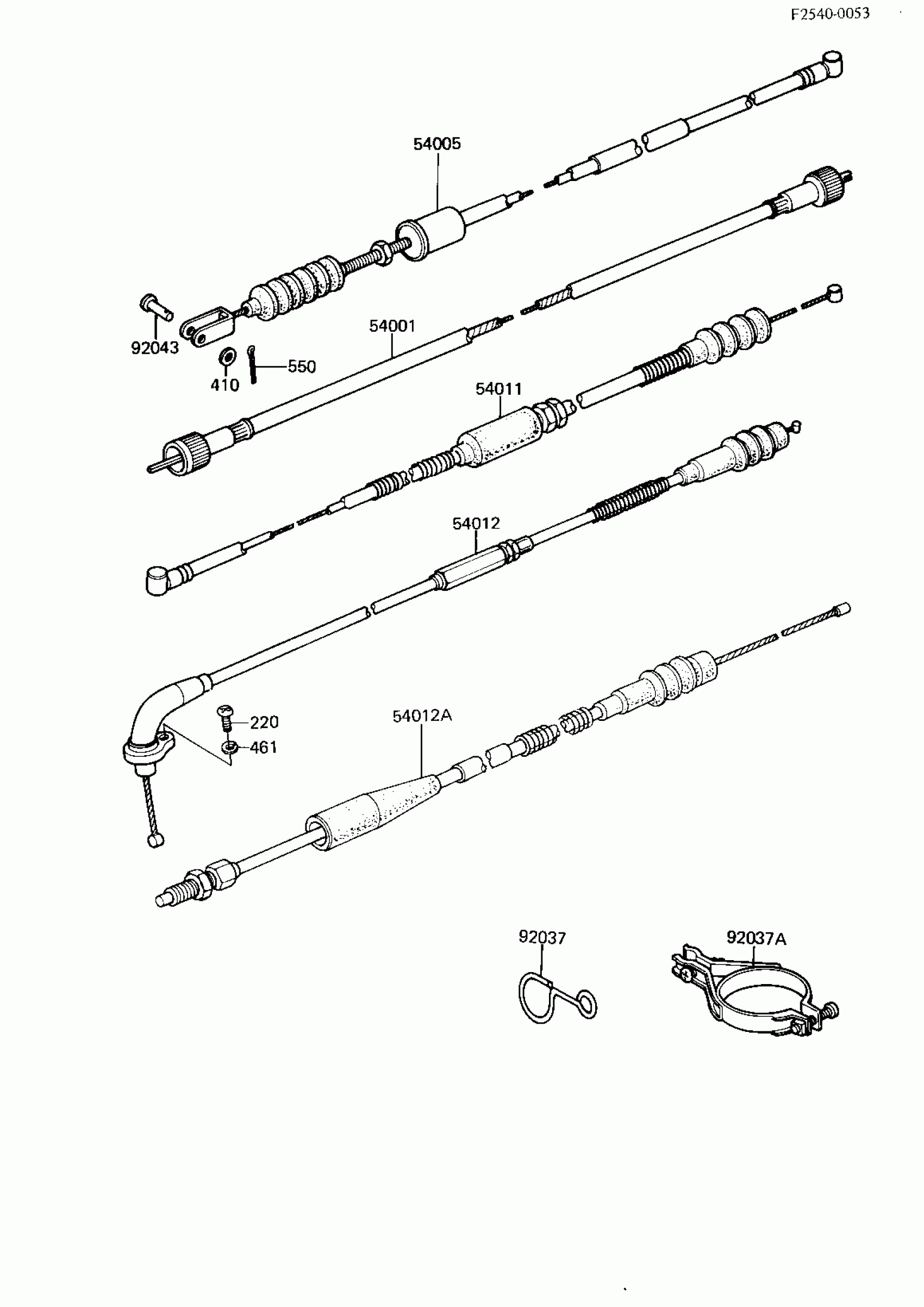

1982 Kawasaki KDX175 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54001

CABLE,SPEEDOMETER

54001-1020

1
Out of stock

54005

CABLE,FRONT BRAKE

54005-1020

1
Out of stock

54011

CABLE,CLUTCH

54011-1068

1
Out of stock

92037

CLAMP,CABLE

92037-1064

1
Out of stock

92037A

CLAMP,CABLE

92037-1072

1
Out of stock

92043

PIN,6X17

92043-064

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
