1982 Kawasaki KDX175 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1982 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

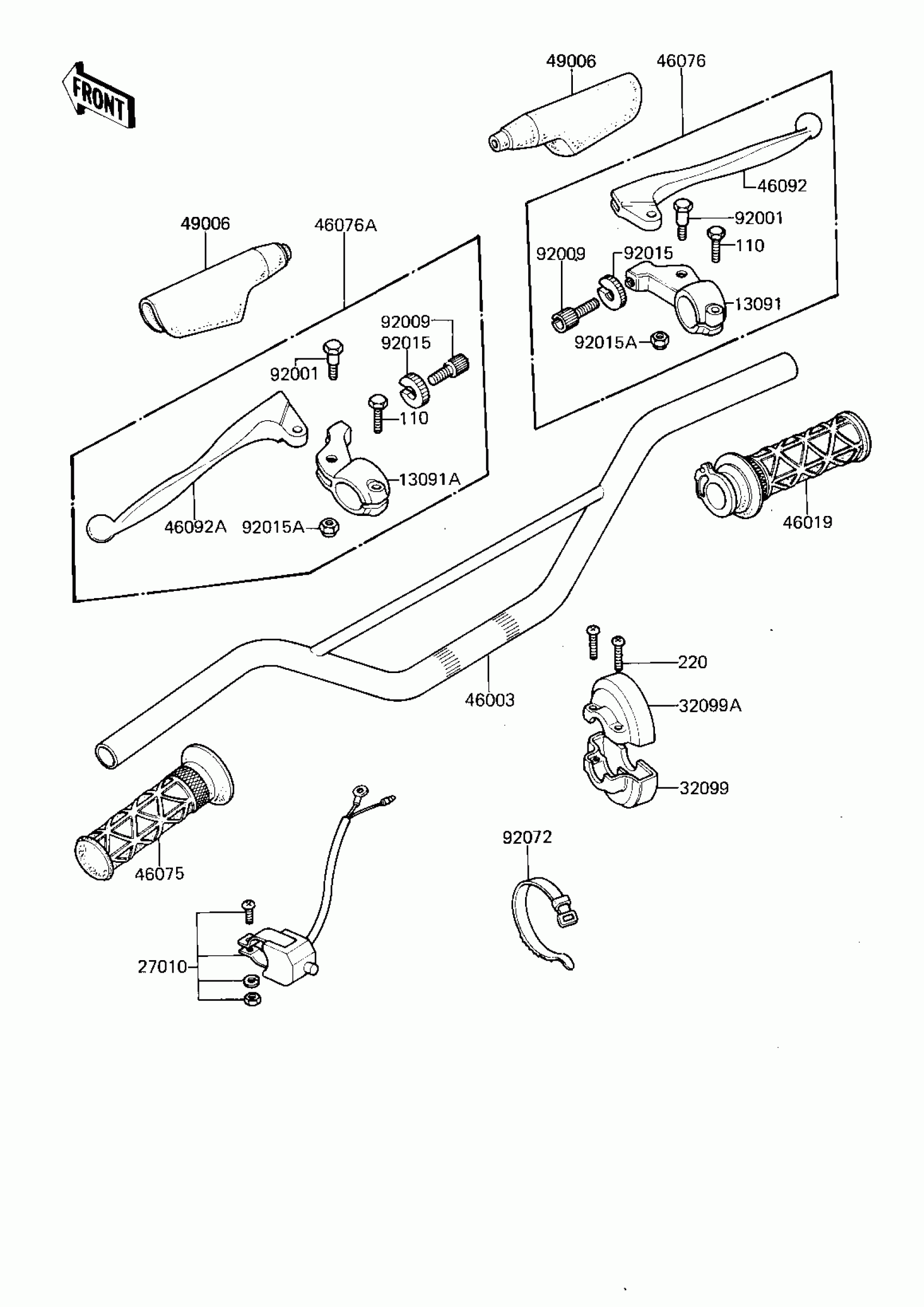

1982 Kawasaki KDX175 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,F.BRAKE LEVER

46060-010-21

1

$69.80

In stock

13091A

HOLDER,CLUTCH LEVER

46094-014-21

1
Out of stock

27010

SWITCH,ASSY,ENG STOP

27010-1018

1
Out of stock

32099

HOUSING CONTROL,R.H.

32099-1011

1
Out of stock

32099A

CASE,R.H,GRIP,UPPER

32099-1014

1
Out of stock

46003

HANDLEBAR

46003-1054

1
Out of stock

46019

GRIP-ASSY

46019-1012

1
Out of stock

46075

GRIP

46075-1015

1
Out of stock

46076

LEVER ASSY,FRONT BRA

46076-1003

1
Out of stock

46076A

LEVER ASSY,CLUTCH

46076-1004

1
Out of stock

46092

FRONT BRAKE LEVER

46058-018

1

$58.85

In stock

46092A

LEVER, CLUTCH

46092-021

1
Out of stock

49006

DUST COVER

46071-003

1
Out of stock

92001

BOLT,HEX HEAD,6MM

92001-140

1
Out of stock

92009

1

$14.99

In stock

92015

NUT,CABLE ADJUST

46056-006

1

$8.71

In stock

92015A

NUT,LOCK,6MM

92019-008

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

110

BOLT-UPSET

112N0620

1
Out of stock

220

SCREW-PAN-CROS

220B0520

1
Out of stock
← Front Fork Handlebar →
