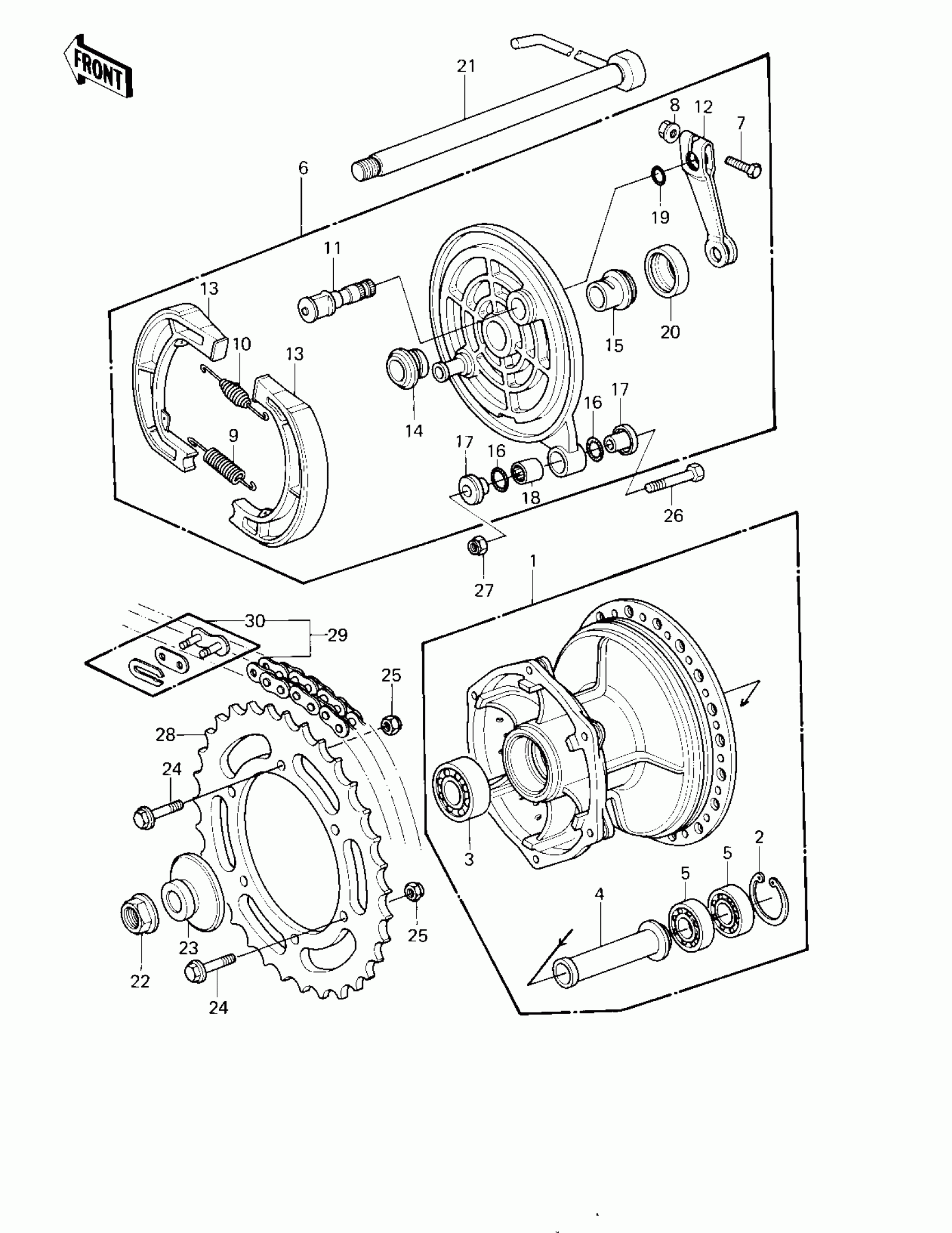

Kawasaki KDX175 REAR HUB/BRAKE/CHAIN ('80 A1) Diagram

#

Description
Price

1

DRUM-ASSY,RR BRK

41034-1017

$449.32

2

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

3

BEARING-BALL,#6004UUC3

601B6004UU

$28.82

4

COLLAR,REAR BRAKE

92027-1207

$45.82

5

BEARING-BALL,#6003UC3

601B6003U

$22.40

6

PANEL-ASY,RR BRK

41035-1031

$385.63

7

BOLT-UPSET

112G0630

$1.36

8

NUT,FLANGED,6MM

92015-1078

Unavailable

9

SPRING,BRAKE SHOE

92081-1766

$8.03

10

SPRING,BRAKE SHOE

92081-1550

$9.49

11

CAM SHAFT,RR BRAKE

41050-1017

Unavailable

12

LEVER-BRAKE CAM

41053-1019

Unavailable

13

SHOE,BRAKE

42019-010

$38.07

14

SLEEVE,REAR BRAKE

42036-1009

Unavailable

15

SLEEVE,REAR PANEL,R.

42036-1035

$79.01

16

O RING,11MM

670B2011

$1.28

17

COLLAR,L=11.5

92027-1040

Unavailable

18

BEARING-NEEDLE,HK1216LL

92046-1009

$18.45

19

O RING,12MM

670B2012

$3.23

20

OIL SEAL

92093-1004

Unavailable

21

AXLE,REAR

41068-1043

$54.56

22

NUT,16MM

92015-1015

Unavailable

23

COLLAR,REAR AXLE

92027-1206

Unavailable

24

BOLT,HEX HEAD,8X32

92001-1040

Unavailable

25

NUT,LOCK,8MM

92015-1124

$5.42

26

BOLT,FLANGED,8X35

92001-1577

Unavailable

27

NUT,LOCK,8MM

92015-1124

$5.42

28

REAR SPROCKET,52T

42041-1044

$218.62

28

REAR SPROCKET,50T

42041-1043

$93.75

28

REAR SPROCKET,47T

42041-1038

$119.67

29

CHAIN,520X118TR

92057-1051

$141.43

30

CHAIN JOINT 520

92058-1002

$10.92
