1990 Kawasaki KD80 Tires Diagram

← All diagrams

Find the part on the Tires diagram for your 1990 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

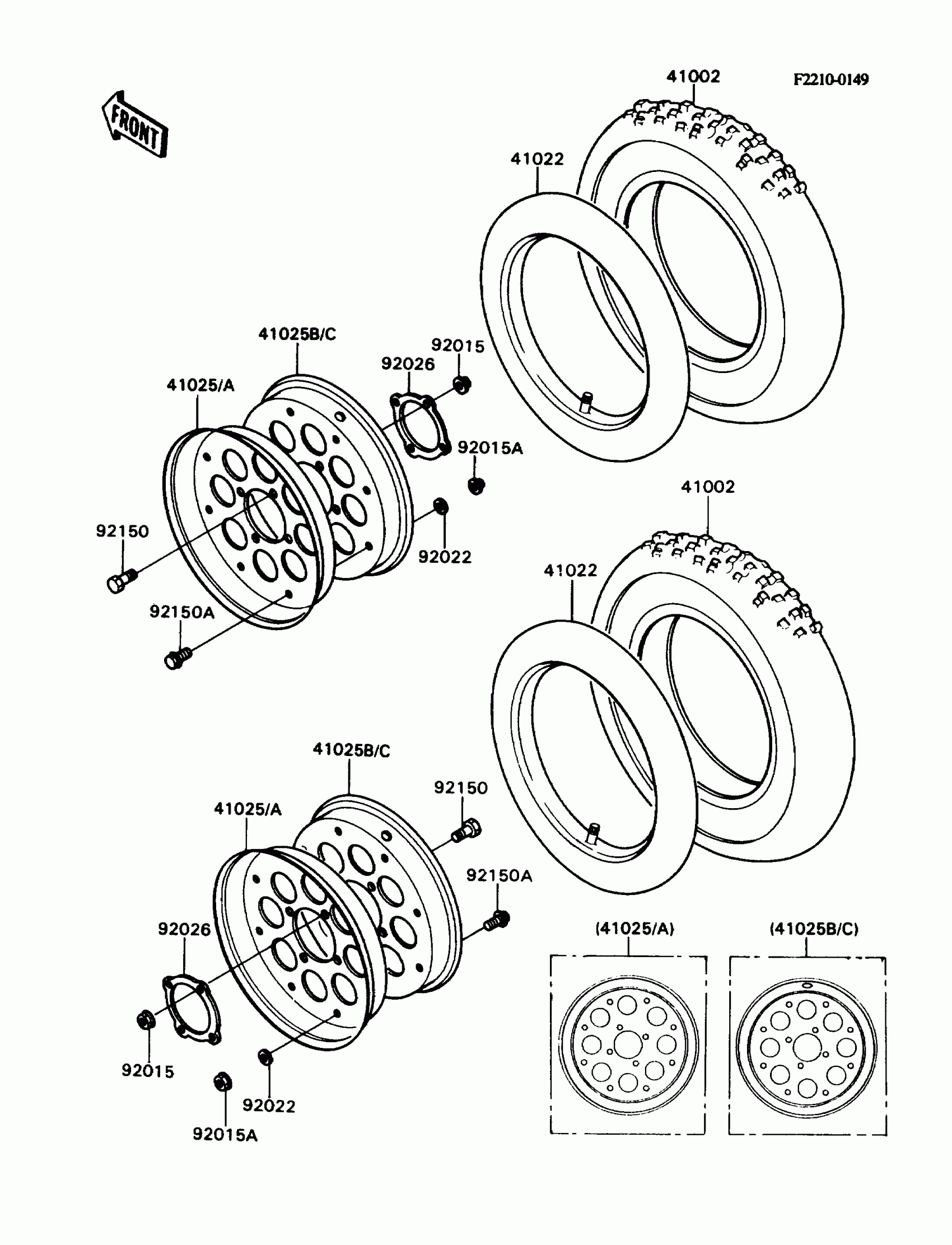

1990 Kawasaki KD80 Tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41002

TIRE,3.50-10 2PR,E-503(Y)

41002-1699

1
Out of stock

41022

1

$42.78

In stock

41025

RIM,LH,SILVER NO.25

41025-1215-CE

1

$102.42

In stock

41025B

RIM,RH,SILVER NO.25

41025-1216-CE

1

$102.42

In stock

92015

1

$3.38

In stock

92015A

NUT,FLANGED,6MM

92015-1699

1

$4.34

In stock

92022

WASHER,6.5X16X1.0

92022-1093

1

$1.73

In stock

92026

SPACER,RIM,T=1.6

92026-1350

1

$9.19

In stock

92150

BOLT,8X27

92150-1053

1

$3.49

In stock

92150A

BOLT,FLANGED,6X15

92150-1135

1
Out of stock
← Swingarm Generator →

More Suspension & Wheels diagrams
