1990 Kawasaki KD80 Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 1990 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

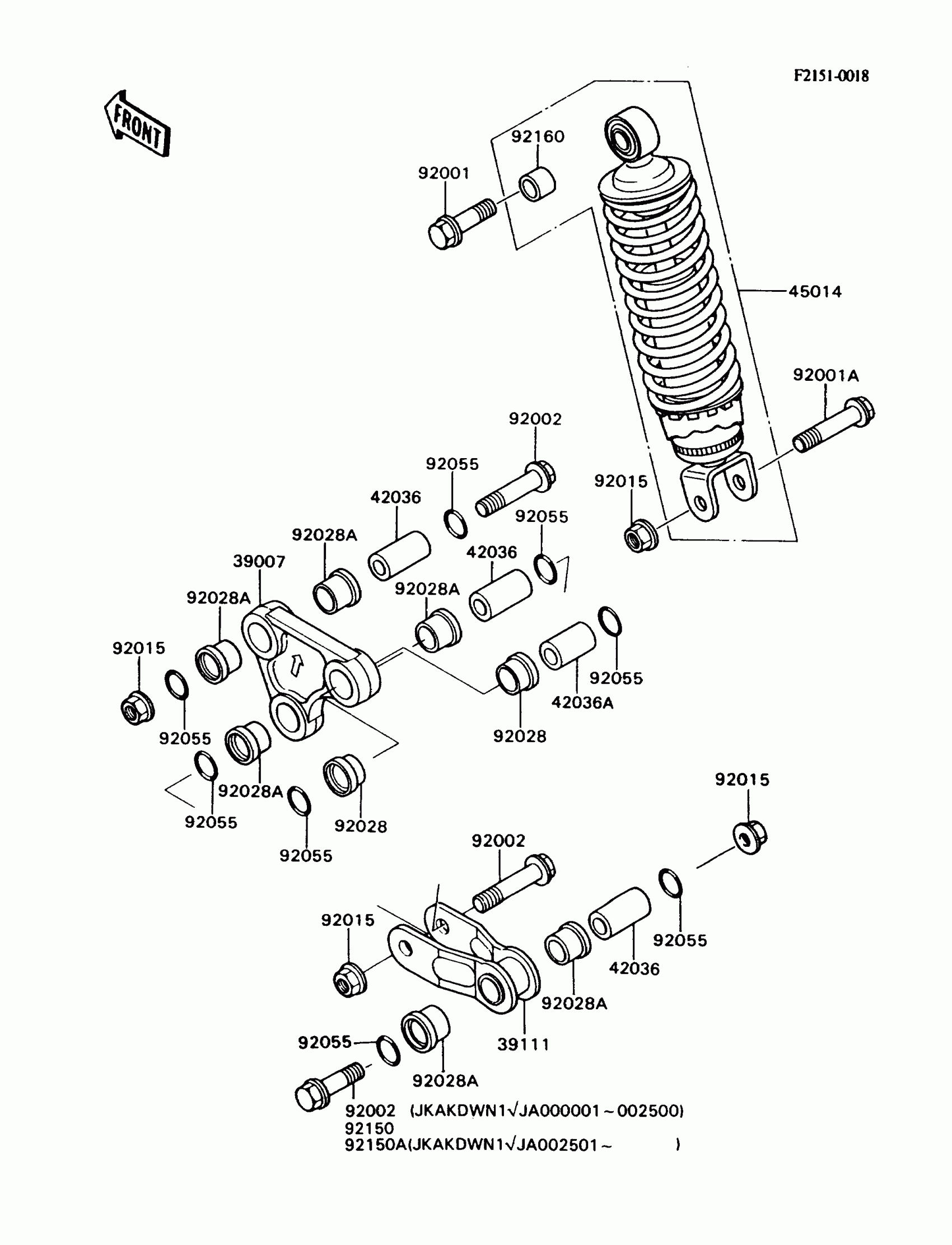

1990 Kawasaki KD80 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1146

1

$82.73

In stock

39111

ROD-TIE

39111-1082

1

$32.44

In stock

42036

SLEEVE,10.1X18X35

42036-1226

1

$14.44

In stock

42036A

SLEEVE,10.1X18X30

42036-1258

1

$11.81

In stock

45014

SHOCKABSORBER

45014-1421

1

$178.39

In stock

92001

BOLT,FLANGED,10X38

92001-1293

1

$7.55

In stock

92001A

BOLT,10X50

92001-1584

1
Out of stock

92002

BOLT,FLANGED,10X53

92002-1936

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92028

BUSHING

92028-1528

1
Out of stock

92028A

BUSHING

92028-1529

1
Out of stock

92055

RING-O

92055-078

1

$5.95

In stock

92150

BOLT,FLANGED,10X57

92150-1227

1

$6.82

In stock

92160

1

$14.72

In stock
