1976 Kawasaki KD80 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1976 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

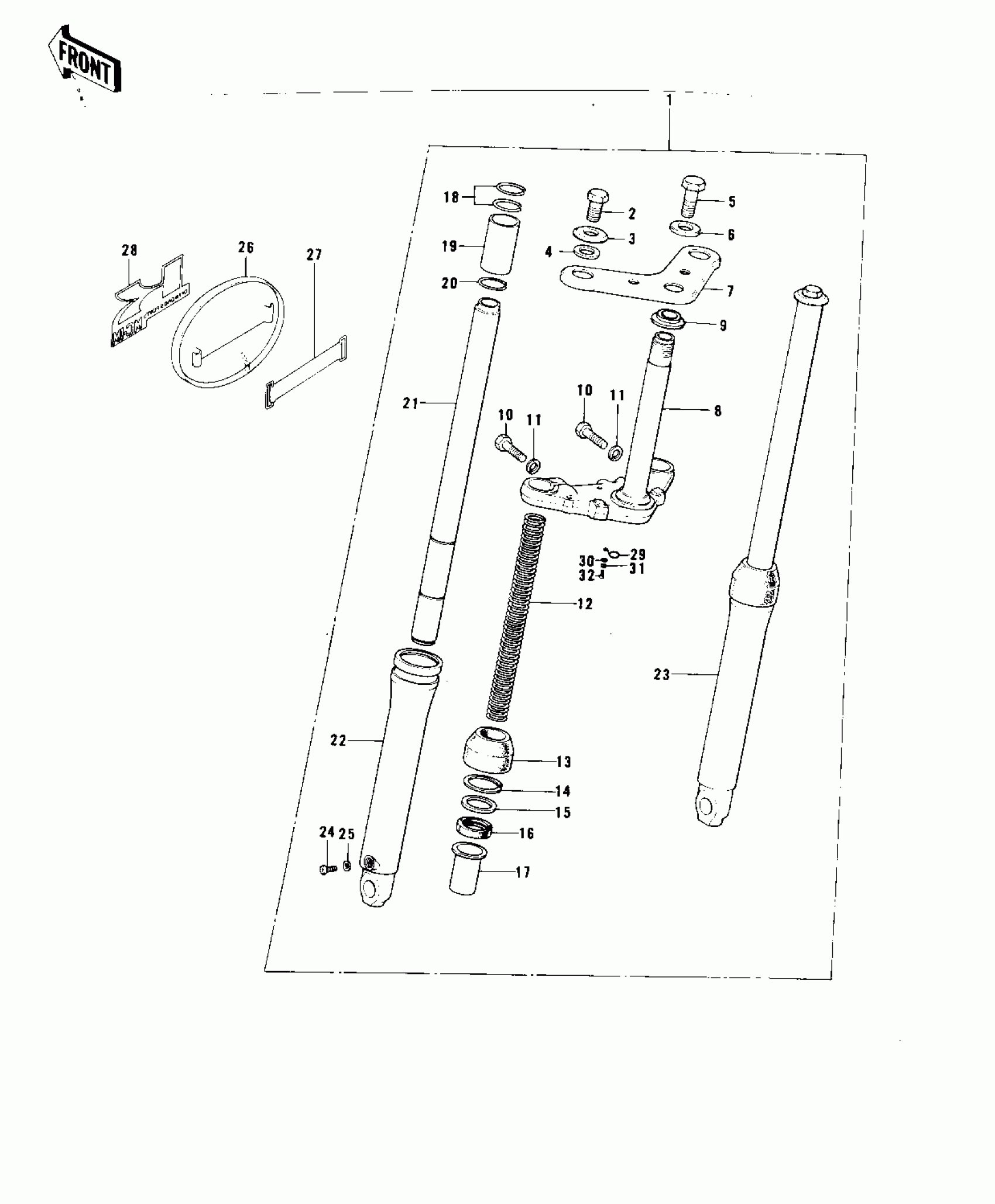

1976 Kawasaki KD80 Front Fork Diagram

#

Description
Price
Status
Order Qty

1

FORK-FRONT

44001-161

Out of stock

2

BOLT

92001-1742

$18.37

In stock

3

WASHER

92022-1381

$9.15

In stock

4

GASKET,FORK TOP BOLT

44045-053

Out of stock

5

BOLT-UPSET,10X30

112G1030

Out of stock

6

WASHER

92022-1381

$9.15

In stock

7

HEAD,STEERING

44039-056

Out of stock

8

STEM,STEERING

44037-069

$224.02

In stock

9

RACE,LOWER BEARING

92047-004

Out of stock

10

BOLT,HEX HEAD 10X35

92001-1252

Out of stock

11

WASHER SPRING 10MM

461F1000

Out of stock

12

SPRING,FORK INNER

44026-051

Out of stock

13

DUST SHIELD,FORK

44010-024

Out of stock

14

CIRCLIP,40MM

44044-016

$9.02

In stock

15

WASHER,FORK OUTER TUB

44043-054

Out of stock

16

SEAL-OIL,OUTER TUBE

92049-1075

Out of stock

17

GUIDE,FORK INNER TUBE

44015-016

Out of stock

18

RING,INNER TUBE GUIDE

44020-003

Out of stock

19

PISTON,FORK

44018-007

$14.07

In stock

20

CIRCLIP,FORK PISTON

44044-017

Out of stock

21

TUBE,FORK INNER

44013-051

Out of stock

22

TUBE,LH,FORK OUTER

44005-052

Out of stock

23

TUBE,RH,FORK OUTER

44006-050

Out of stock

24

$1.46

In stock

25

GASKET,FORK DRAIN PLUG

44045-046

Out of stock

26

PLATE,FRONT NUMBER

58029-025

Out of stock

27

BAND,L=142.1

92072-006

$10.11

In stock

28

EMBLEM,NUMBER PLATE

56018-179

Out of stock

28

EMBLEM NUMBER PLAT

56018-235

Out of stock

29

CLAMP,CABLE

92037-046

$4.41

In stock

30

WASHER PLAIN 6MM

411B0600

Out of stock

31

WASHER SPRING 6MM

461F0600

Out of stock

32

BOLT-UPSET,6X12

112G0612

Out of stock
