1990 Kawasaki KD80 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1990 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

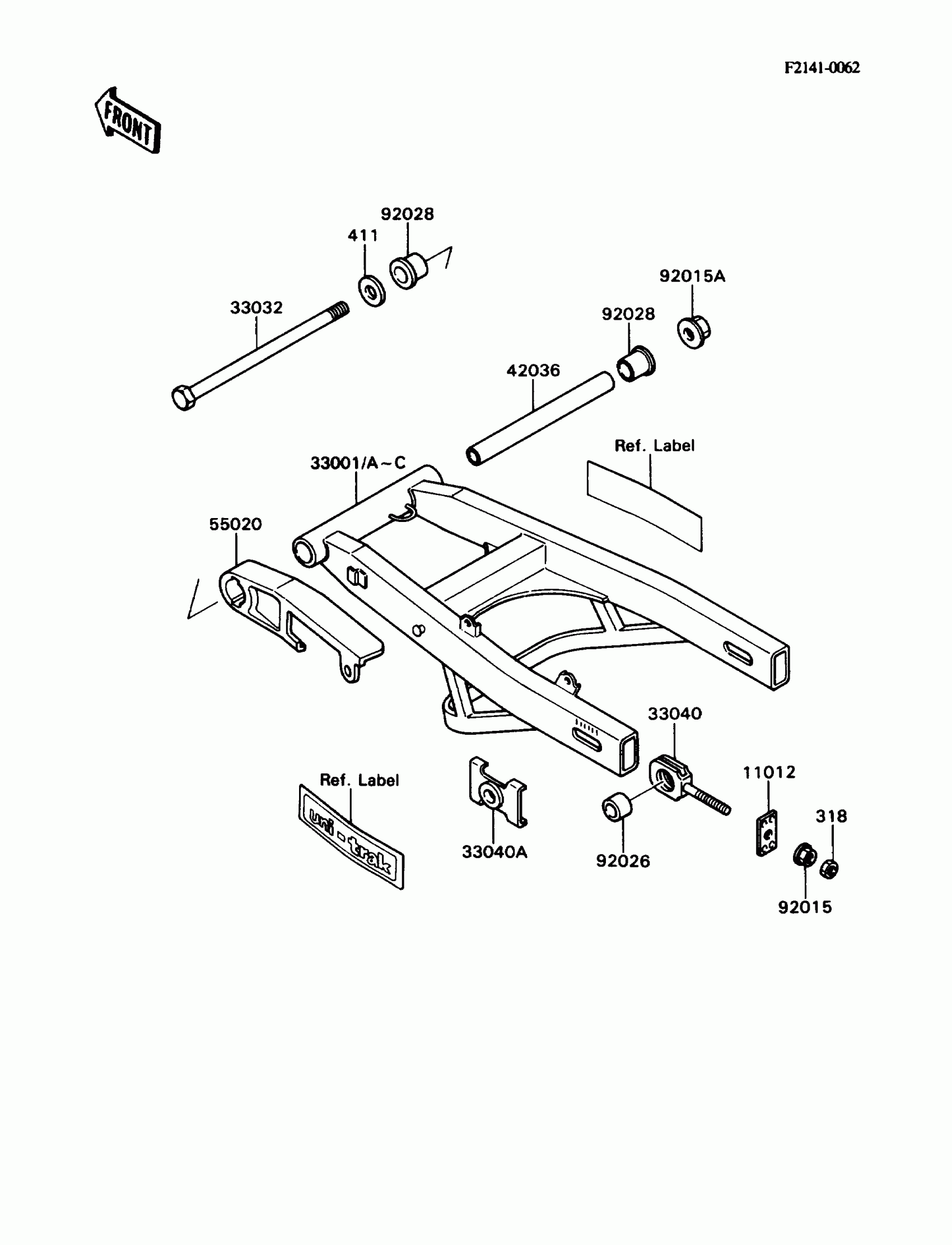

1990 Kawasaki KD80 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CHAIN ADJUSTER

11012-1621

1
Out of stock

33001B

ARM-COMP-SWING,SILVER NO.25

33001-1330-CE

1
Out of stock

33032

SHAFT-SWING ARM

33032-1143

1

$31.06

In stock

33040

1

$14.19

In stock

33040A

ADJUSTER-CHAIN,OUTSIDE

33040-1088

1
Out of stock

42036

SLEEVE,12.1X17X183

42036-1239

1

$50.16

In stock

55020

GUARD

55020-1299

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,FLANGED,12MM,BLACK

92015-1249

1
Out of stock

92026

SPACER,12.2X22X16.2

92026-1309

1
Out of stock

92028

BUSHING,L=25

92028-1359

1

$17.98

In stock

318

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

411

WASHER-PLAIN

411F1200

1

$3.53

In stock
