1986 Kawasaki KD80 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1986 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

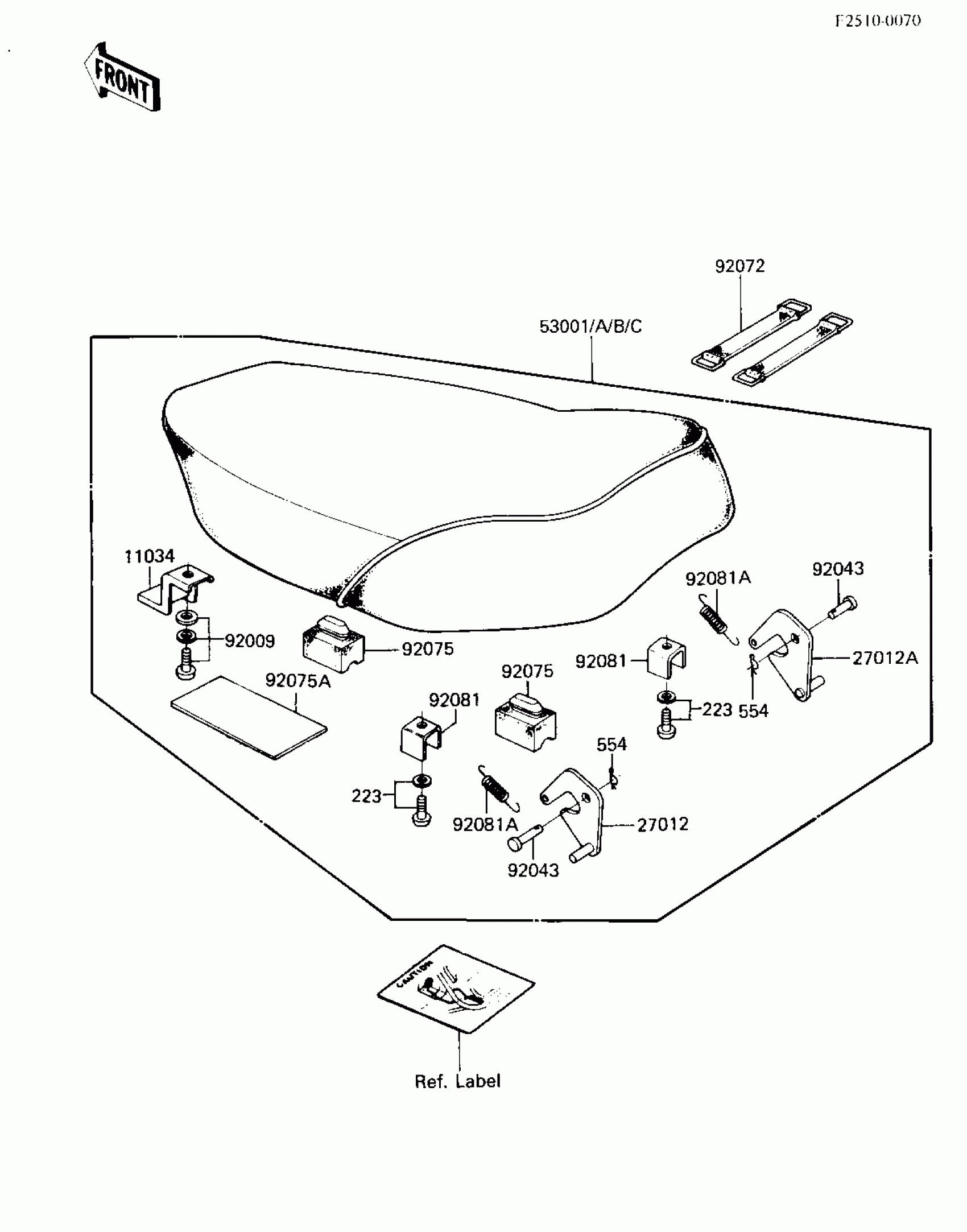

1986 Kawasaki KD80 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,SEAT

53032-004

1
Out of stock

27012

HOOK,L.H SEAT

53008-031

1
Out of stock

27012A

HOOK,R.H SEAT

53008-032

1
Out of stock

53001C

SEAT-ASSY

53001-1460

1
Out of stock

92009

SCREW

92009-1282

1
Out of stock

92043

1

$4.92

In stock

92075

DAMPER

92075-099

1

$4.37

In stock

92081

SPRING,SEAT HOOK

53012-012

1

$2.58

In stock

92081A

SPRING,HOOK

53012-013

1
Out of stock

223

1

$0.93

In stock

554

PIN,SNAP

554A0600

1
Out of stock
