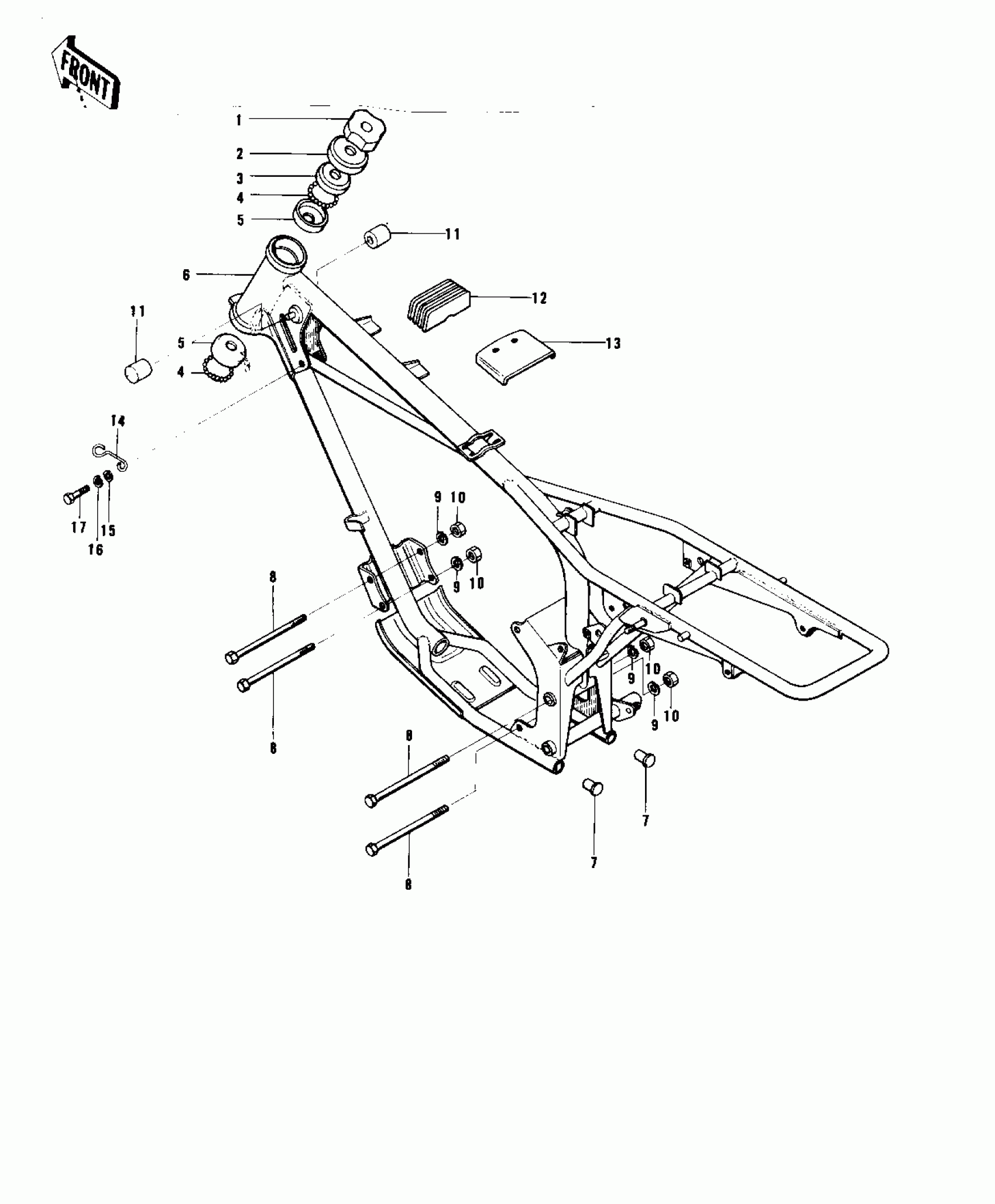

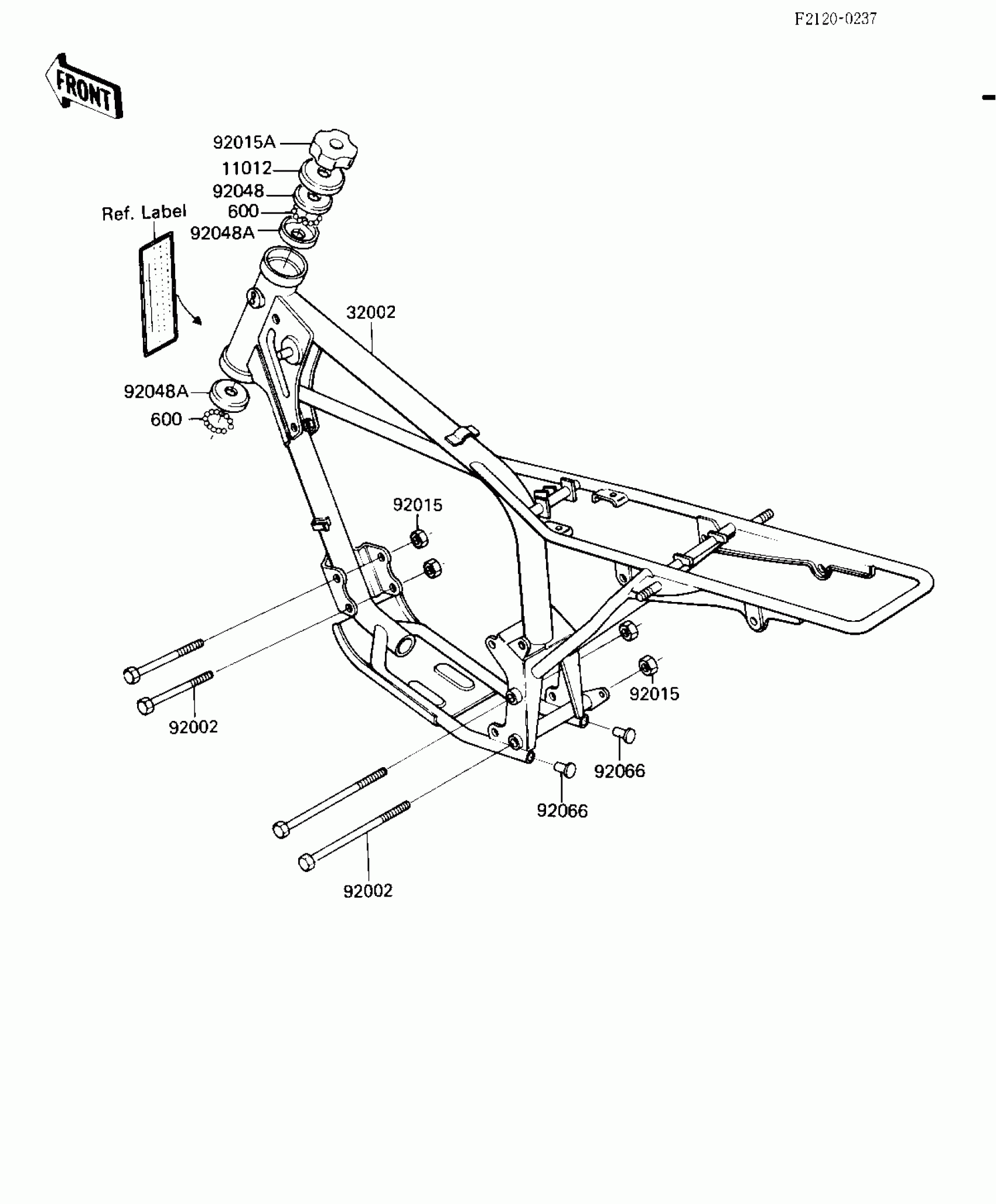

Kawasaki KD80 FRAME/FRAME FITTINGS Diagram

#

Description
Price

1

NUT STEERING STEM LCK

92090-006

$14.24

2

CAP,STEERING STEM

46098-004

$5.37

3

RACE,UPPER BEARING

92047-005

$11.59

4

BALL-STEEL,3/16

600A0600

$1.02

5

RACE,BEARING

92048-004

Unavailable

6

FRAME

32002-110

$285.19

7

CAP PIPE END

32112-001

Unavailable

8

BOLT,FLANGED,10X115

92001-1603

$10.25

9

WASHER SPRING 10MM

461F1000

Unavailable

10

NUT-HEX-FINE,10MM

314B1000

Unavailable

11

DAMPER,FUEL TANK

92075-044

$4.06

12

DAMPER RUBBER,FL TANK

92075-195

Unavailable

13

DAMPER RUBBER,FL TANK

92075-230

Unavailable

14

CLAMP,CABLE

92037-117

Unavailable

15

WASHER PLAIN 6MM

411B0600

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

BOLT-UPSET,6X12

112G0612

Unavailable
