1976 Kawasaki KD80 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1976 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

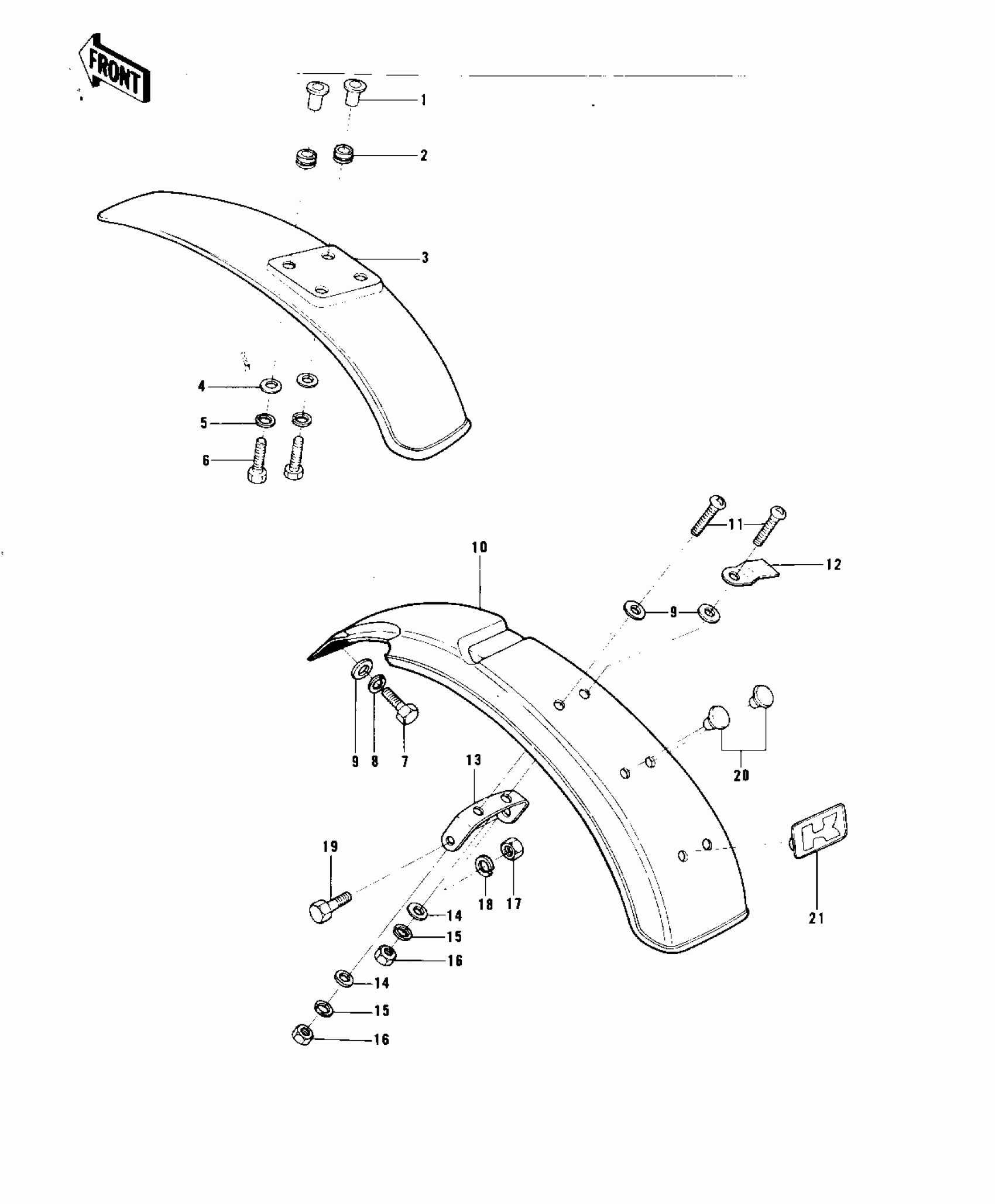

1976 Kawasaki KD80 Fenders Diagram

#

Description
Price
Status
Order Qty

1

COLLAR

92027-153

$4.93

In stock

2

DAMPER RUBBER

92075-103

$3.49

In stock

3

FENDER-FR,BLACK

35004-080-10

Out of stock

4

WASHER,6.5X20X1.6

92022-125

$1.25

In stock

5

WASHER SPRING 6MM

461F0600

Out of stock

6

BOLT-UPSET

112G0618

Out of stock

7

BOLT-UPSET 6X14

112B0614

Out of stock

8

WASHER SPRING 6MM

461F0600

Out of stock

9

WASHER,6.5X20X1.6

92022-125

$1.25

In stock

10

FENDER,REAR,BLACK

35022-094-10

Out of stock

11

SCREW-PAN-CROS,6X16

220B0616

Out of stock

12

CLAMP CABLE

92037-020

Out of stock

13

BRACKET,REAR FENDER

35025-025

Out of stock

14

WASHER PLAIN 6MM

411B0600

Out of stock

15

WASHER SPRING 6MM

461F0600

Out of stock

16

NUT 6MM

311B0600

Out of stock

17

NUT-HEX-FINE

315B1200

Out of stock

18

WASHER-SPRING,12MM

461F1200

Out of stock

19

BOLT,HEX HEAD,12X26

113B1226A

Out of stock

20

PLUG,RR FENDR RUBBER

92074-034

Out of stock

21

PLUG,RR FENDR RUBBER

92074-033

Out of stock
