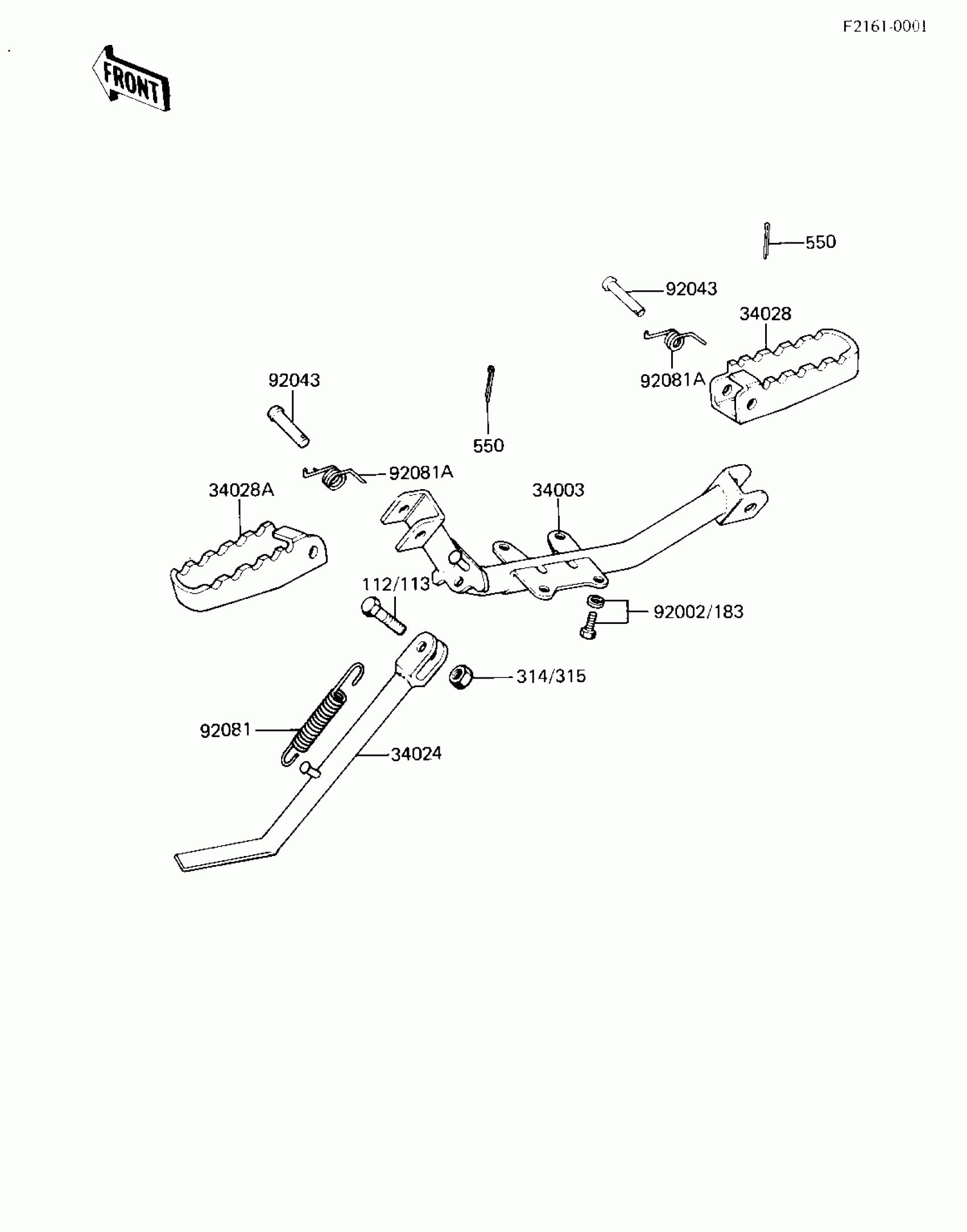

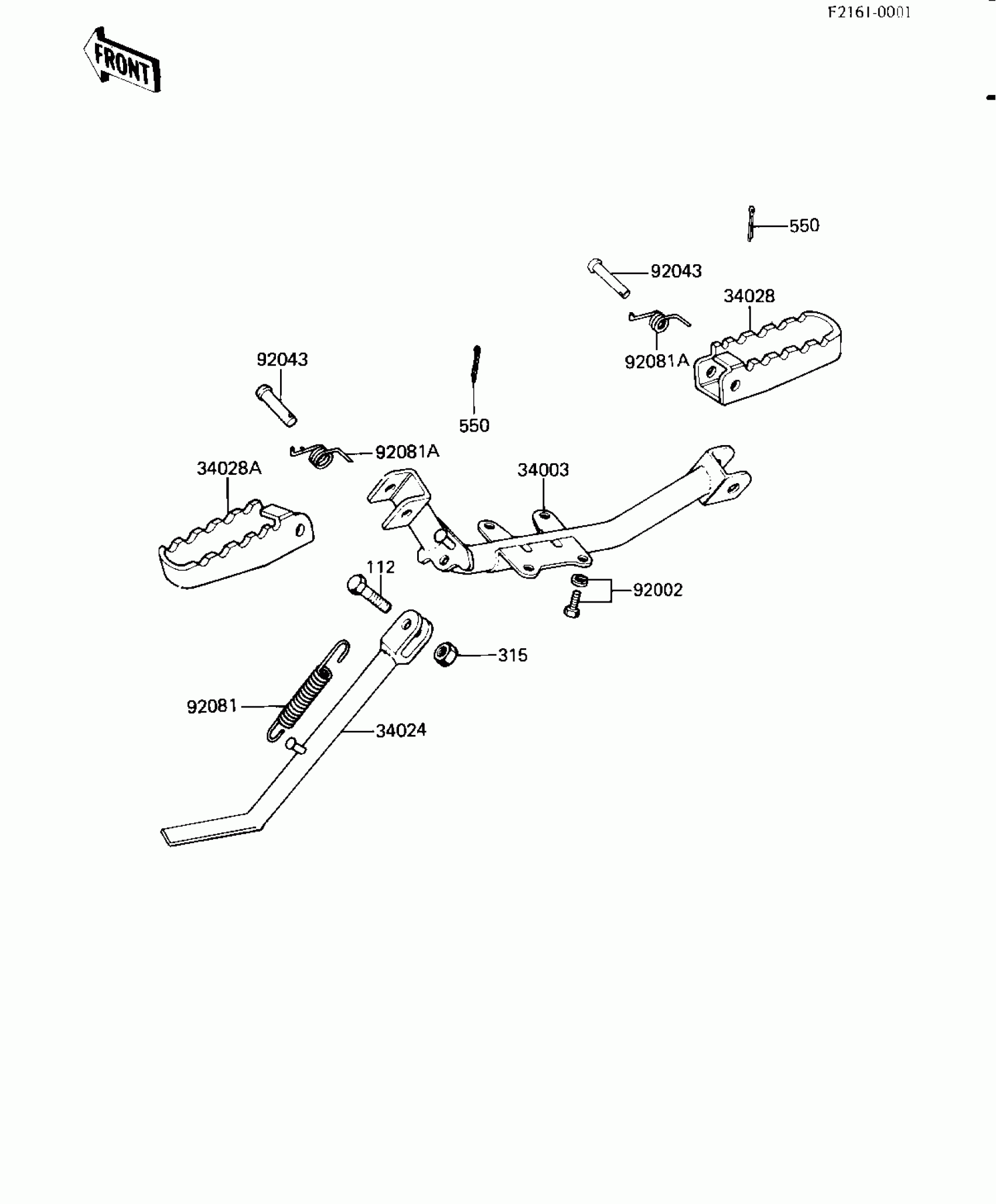

Kawasaki KD80 FOOTRESTS/STAND Diagram

#

Description
Price

34003

BAR,FOOTREST

34002-047

$127.05

34024

STAND-SIDE

34024-1013

Unavailable

34028

BAR,R.H FOOTREST

34028-023

$37.55

34028A

BAR,L.H FOOTREST

34028-024

Unavailable

92002

BOLT,8X18

92002-1231

Unavailable

92043

PIN,8X31

92043-080

$5.03

92081

SPRING MAIN STAND

34023-005

$8.66

92081A

SPRING,FOOTRESTBAR

92083-027

Unavailable

112

BOLT-UPSET

112C1030

Unavailable

315

NUT-HEX-FINE,10MM,BLACK

315C1000

Unavailable

550

PIN-COTTER,2.5X15

550D2515

$0.51
