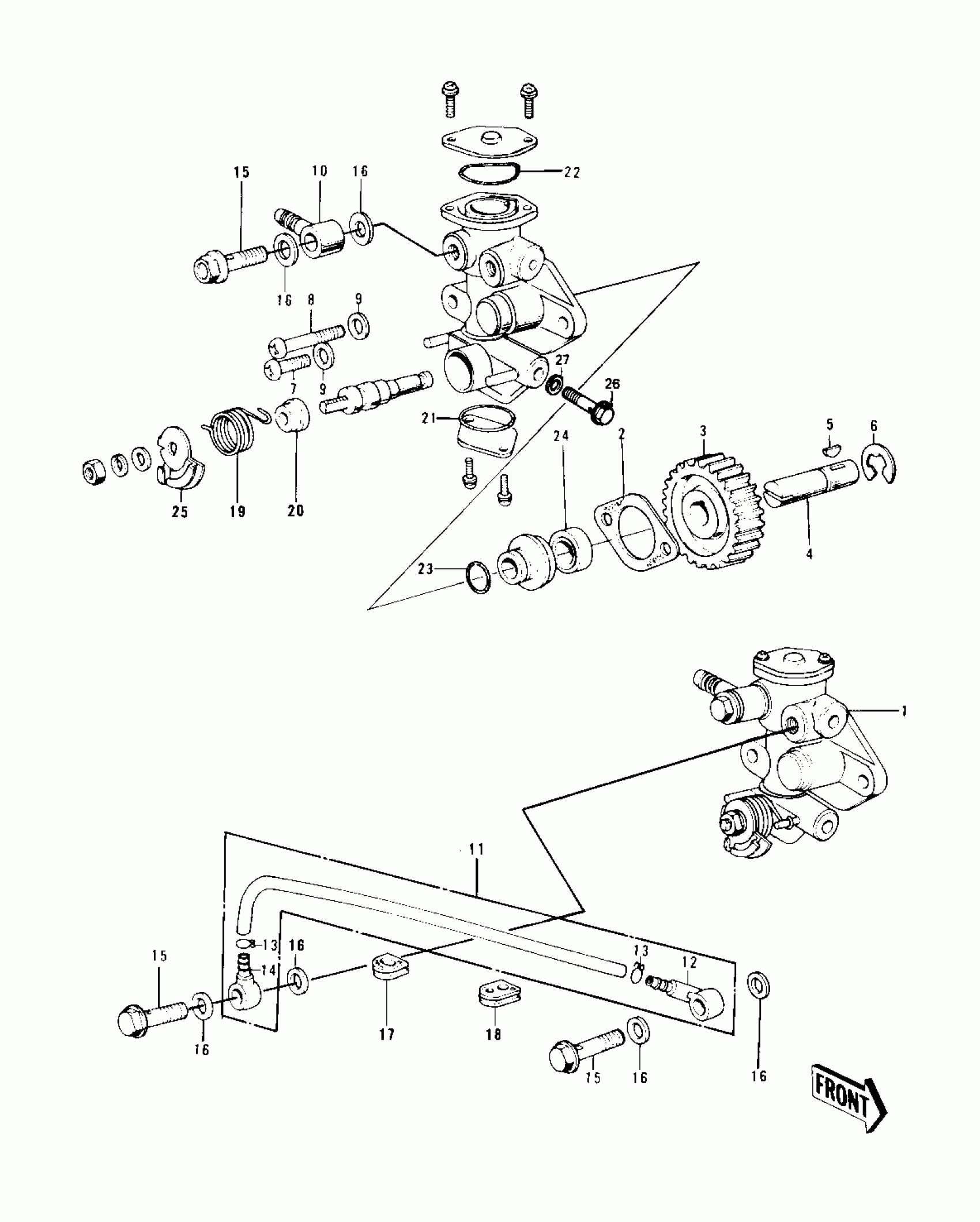

Find the part on the Oil Pump diagram for your 1979 Kawasaki KD100-M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Kawasaki KD100-M4 Oil Pump Diagram

#

Description
Price
Status
Order Qty

1

PUMP-ASSY-OIL

16082-067

$261.72

In stock

1

PUMP-ASSY-OIL

16082-067

$261.72

In stock

2

GASKET,OIL PUMP

11060-1160

$4.41

In stock

3

GEAR,OIL PUMP

16085-004

$21.24

In stock

4

SHAFT,OIL PUMP

16086-001

$15.56

In stock

5

KEY-WOODRUFF

510A3100

$2.17

In stock

6

CIRCLIP-TYPE-E,9MM

482K9000

Out of stock

7

SCREW-PAN-CROS

220B0514

Out of stock

8

SCREW-PAN-CROS

220B0528

$1.34

In stock

9

$3.12

In stock

10

FITTING,BANJO

92061-009

Out of stock

11

TUBE,OIL

16134-021

Out of stock

12

VALVE-CHECK

16128-009

$22.83

In stock

13

RING-SNAP

92036-022

Out of stock

14

FITTING,BANJO

92061-018

$8.45

In stock

15

BOLT,BANJO,L=16

92060-013

$5.16

In stock

16

$3.13

In stock

17

GROMMET

21017-002

$4.23

In stock

18

GROMMET,OIL PIPE

92071-067

$4.96

In stock

19

$9.02

In stock

20

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

Out of stock

21

"0" RING,LOWER CAP

16090-003

Out of stock

21

RING-O,CAP,CAMSHAFT SIDE

16090-004

Out of stock

22

$7.84

In stock

23

$3.43

In stock

24

$5.76

In stock

25

LEVER-OIL PUMP

16096-012

$18.19

In stock

26

BOLT,AIR VENT

92009-1010

Out of stock

27

WASHER

92022-1006

$5.14

In stock
