1979 Kawasaki KD100-M4 Crankcase Diagram

← All diagrams

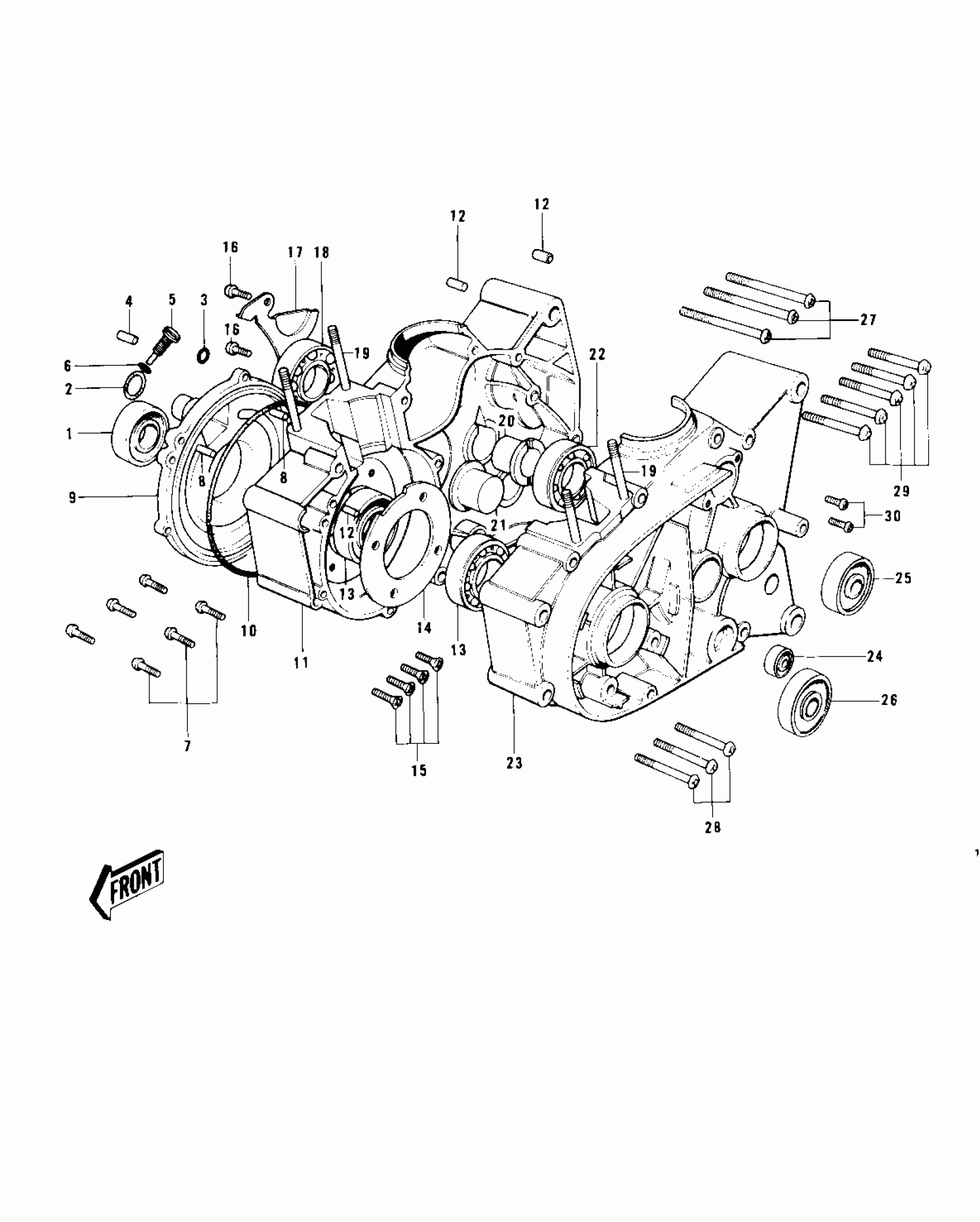

Find the part on the Crankcase diagram for your 1979 Kawasaki KD100-M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Kawasaki KD100-M4 Crankcase Diagram

#

Description
Price
Status
Order Qty

1

OIL SEAL, TB25407

653B254007

Out of stock

2

O RING,26MM

670B3026

Out of stock

3

RING-O,7.8X3.5

92055-029

Out of stock

4

PIN,DOWEL,8X16

92042-017

Out of stock

5

NOZZLE OIL INJECTION

92062-004

Out of stock

6

"0" RING,5MM

92055-011

Out of stock

7

SCREW-PAN-CROS,6X20,WHITE

220B0620

Out of stock

8

ROLLER,5X12

610A0512

Out of stock

9

COVER ROTARY DISC VLV

14019-032

Out of stock

9

COVER,ROTARY DISC VALVE

14019-056

Out of stock

10

RING-O,100MM

92055-010

Out of stock

11

CRANKCASE,R.H

14003-063

Out of stock

12

PIN DOWEL 8X16

551A0816

Out of stock

13

BEARING-BALL,#6204C3

601B6204

Out of stock

14

PLATE-POSITION

14014-017

Out of stock

15

SCREW-CSK-CROS,6X16

221B0616

Out of stock

16

SCREW PAN HEAD 6X12

220B0612

Out of stock

17

PLATE-POSITION

14014-008

Out of stock

18

BEARING-BALL,#6005C3

601B6005

Out of stock

19

STUD 6X115

172G06115

Out of stock

20

BUSHING,L=14

92028-069

Out of stock

21

BUSHING,L=23.5

92028-025

Out of stock

22

BEARING-BALL,#6004C3

601B6004

Out of stock

23

CRANKCASE,L.H.

14002-1072

Out of stock

24

SEAL-OIL,SB12205

92049-004

Out of stock

25

SEAL-OIL,SC25376

92050-013

Out of stock

26

SEAL-OIL

92049-1240

Out of stock

27

SCREW PAN HEAD 6X65

220B0665

Out of stock

28

SCREW-PAN-CROS,6X60

220B0660

Out of stock

29

SCREW PAN HEAD 6X40

220B0640

Out of stock

30

SCREW PAN HEAD 6X25

220B0625

Out of stock
