1979 Kawasaki KD100-M4 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1979 Kawasaki KD100-M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

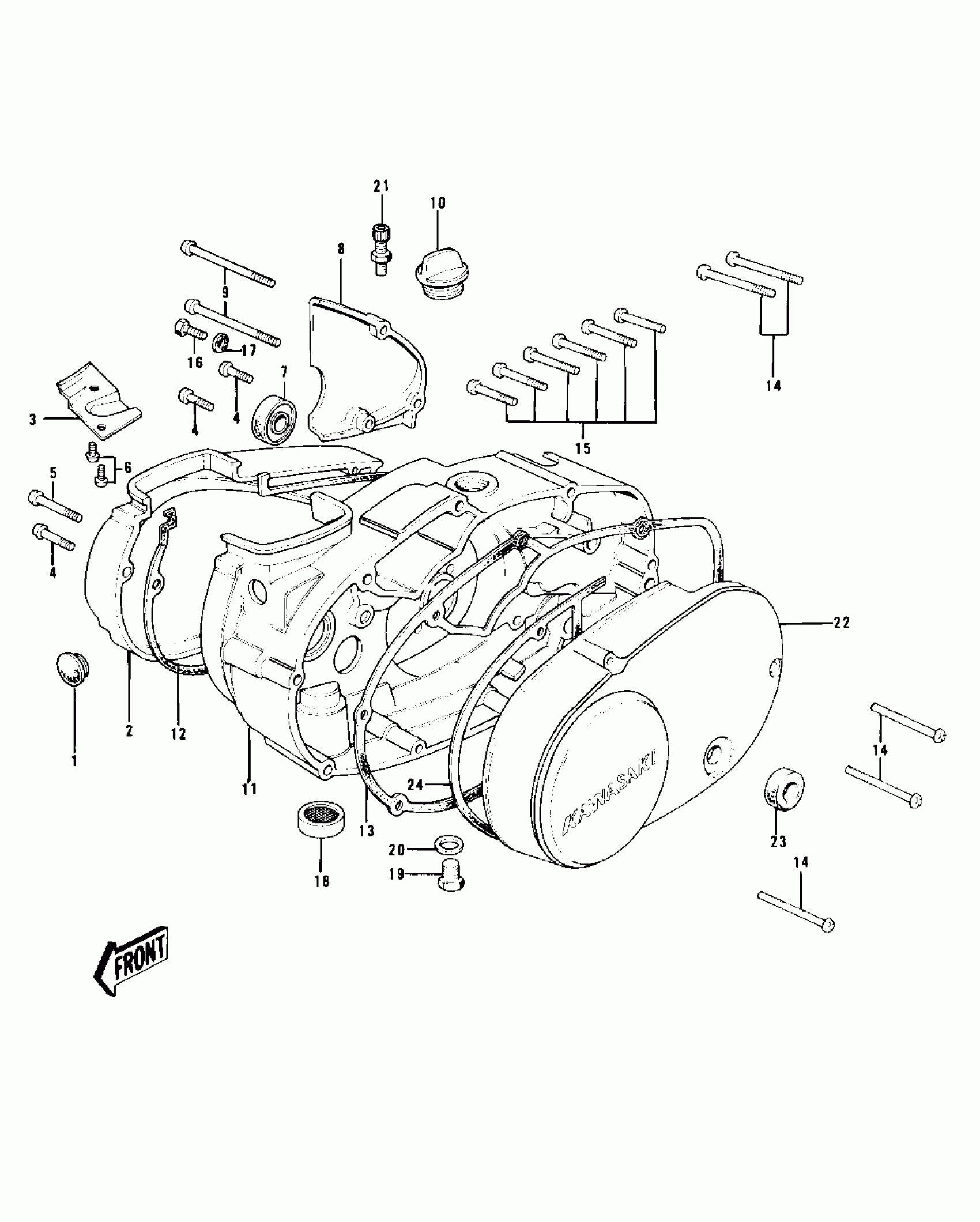

1979 Kawasaki KD100-M4 Engine Covers Diagram

#

Description
Price
Status
Order Qty

1

CAP,RUBBER

14039-001

$3.42

In stock

2

COVER,CARB BARREL

14030-1005

Out of stock

2

COVER,CARB BARREL

14030-1005

Out of stock

3

COVER,DRAIN PLUG

14025-1137

Out of stock

4

$4.61

In stock

5

$1.44

In stock

6

SCREW PAN HEAD 6X12

220B0612

Out of stock

7

OIL SEAL TB14257

653B142507

$19.62

In stock

8

COVER,OIL PUMP,BUFF

14030-050-80

Out of stock

9

SCREW-PAN-CROS,6X75

220B0675

Out of stock

10

CAP-OIL FILLER

16115-018

$8.38

In stock

11

COVER,R.H,ENG,BARREL

14032-1017

Out of stock

12

$26.35

In stock

13

GASKET,CLUTCH COVER

11060-1198

$25.87

In stock

14

$1.54

In stock

15

SCREW PAN HEAD 6X30

220B0630

Out of stock

16

BOLT,HEX HEAD,6X14

92001-121

Out of stock

17

$3.13

In stock

18

PLUG,25X12

16116-006

$13.02

In stock

19

PLUG,DRAIN,10X12

92067-001

$3.50

In stock

20

GASKET,10.5X16X1

92065-058

$3.16

In stock

21

ADJUSTER-CABLE

16002-012

Out of stock

22

COVER,L.H ENG.BUFF

14031-078-80

Out of stock

22

COVER,L.H.ENGINE

14031-1029

Out of stock

23

OIL SEAL, VB12185

656G121805

$8.20

In stock

24

$21.69

In stock
