1979 Kawasaki KD100-M4 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1979 Kawasaki KD100-M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

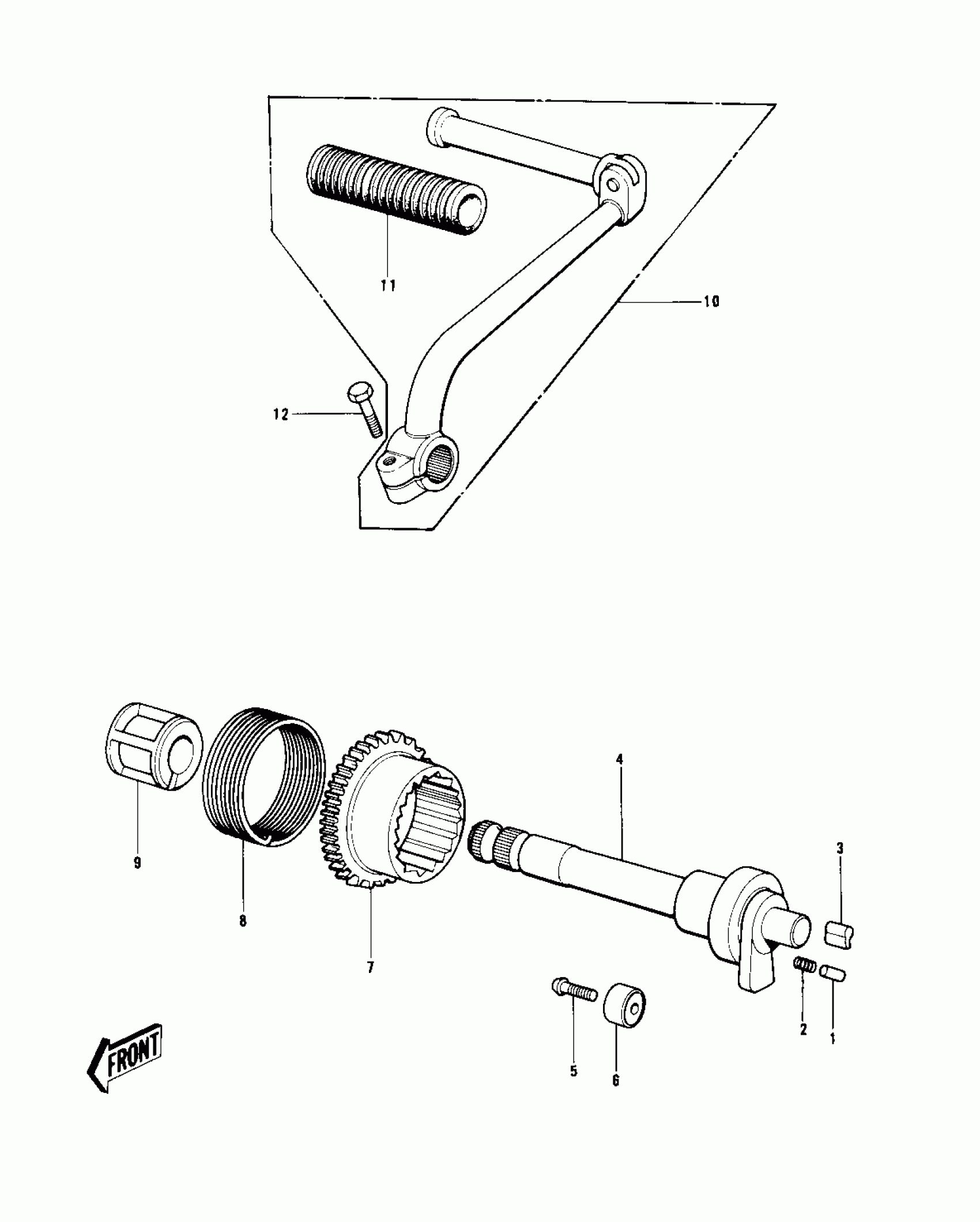

1979 Kawasaki KD100-M4 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PIN,DOWEL,3.9X10.8

92043-013

$4.08

In stock

2

SPRING,KICK PAWL

92081-014

$4.32

In stock

3

PAWL,KICKSTARTER

13069-005

$14.12

In stock

4

SHAFT-KICK

13066-1022

Out of stock

5

$1.98

In stock

6

$9.66

In stock

7

$79.07

In stock

8

$11.58

In stock

9

GUIDE KICK SPRING

13070-003

Out of stock

10

PEDAL, KICKSTARTER

13064-007

Out of stock

11

DAMPER,PEDAL

13063-002

$3.58

In stock

12

BOLT-SMALL-UPSET 8X25

115G0825

Out of stock
