1985 Kawasaki JS550 Hull/engine Hood Diagram

← All diagrams

Find the part on the Hull/engine Hood diagram for your 1985 Kawasaki JS550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

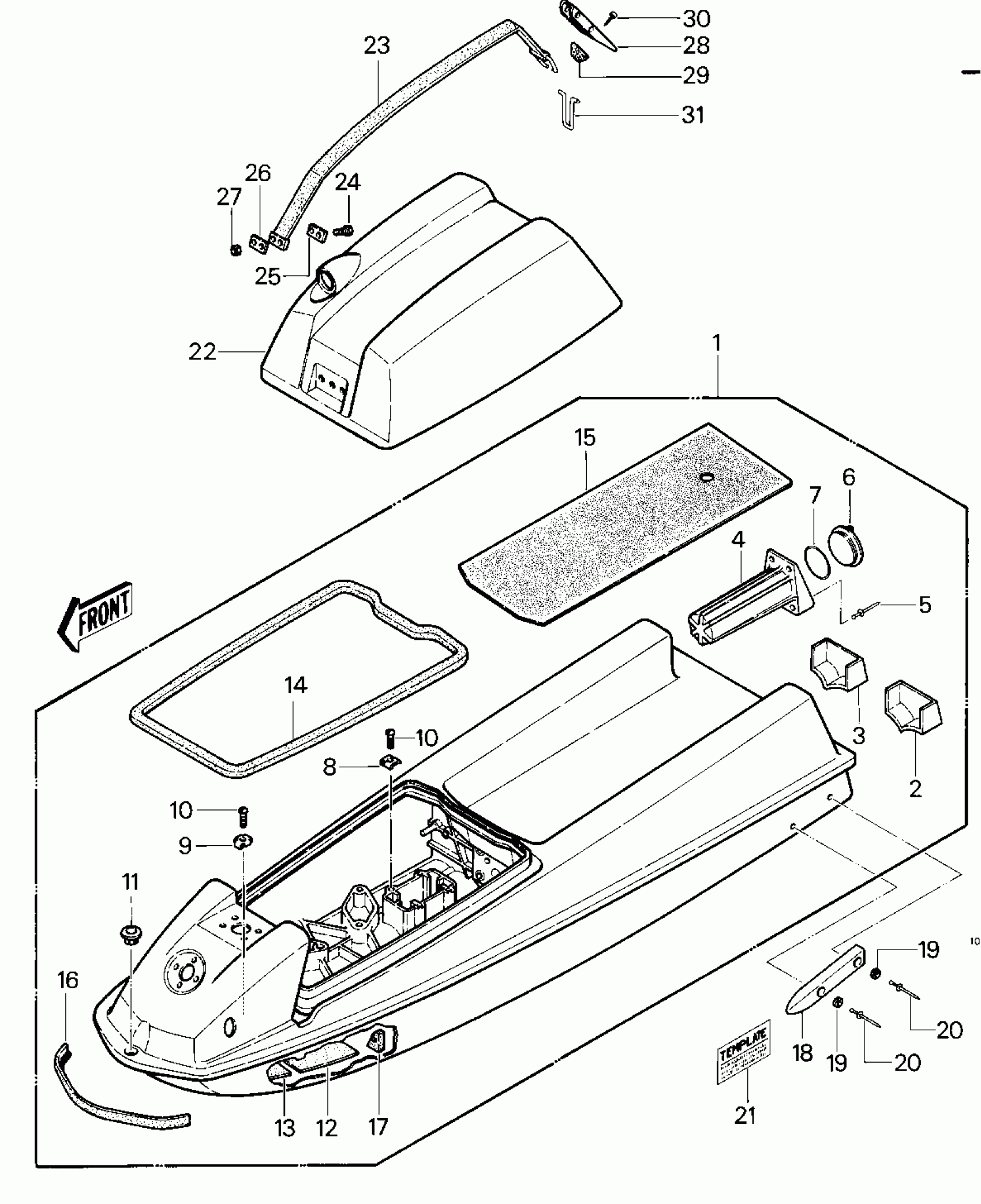

1985 Kawasaki JS550 Hull/engine Hood Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HULL-ASSY,JET-WHITE

59431-3704-8C

1
Out of stock

2

HULL,LH,EXTENSION,JET WHITE

59251-3006-8C

1
Out of stock

3

HULL,RH,EXTENSION,JET WHITE

59251-3005-8C

1
Out of stock

4

CASE-ASSY-FIRE

32099-5501

1
Out of stock

5

RIVET

59281-506

1
Out of stock

6

CAP,FIRE EXT.BLACK

11012-3724

1
Out of stock

7

O RING,85MM

671B2585

1
Out of stock

8

HOOK

27012-501

1
Out of stock

9

HOOK

27012-502

1
Out of stock

10

SCREW,TAPPING

92011-561

1
Out of stock

11

BUSHING

92028-3013

1
Out of stock

12

DAMPER,FUEL TANK

92075-521

1
Out of stock

13

DAMPER,MUFFLER

92075-522

1
Out of stock

14

GASKET,ENGINE HOOD

92065-539

1
Out of stock

15

MAT

59131-502

1
Out of stock

16

BUMPER

59201-502

1
Out of stock

17

DETENT

59346-504

1
Out of stock

18

STABILIZER

59437-3002

1
Out of stock

19

WASHER,5X16X1.5

92022-3041

1
Out of stock

20

RIVET

92039-3002

1
Out of stock

21

TEMPLATE,STABILIZER

99969-0560

—
Out of stock

22

HOOD-COMP-ENGINE,JET WHITE

59456-3719-8C

1
Out of stock

23

BAND,HOOD

92072-3746

1
Out of stock

24

BOLT,6X30

92001-3022

1
Out of stock

25

WASHER,BAND

92022-509

1
Out of stock

26

BRACKET,PLATE

59086-501

1
Out of stock

27

NUT-HEX,6MM

311R0600

1
Out of stock

28

LEVER

13168-3701

1
Out of stock

29

DETENT

59346-503

1
Out of stock

30

SCREW

92011-562

1
Out of stock

31

HINGE

53009-503

1

$14.08

In stock
