1985 Kawasaki JS550 Engine Mount/cooling & Bilge Diagram

← All diagrams

Find the part on the Engine Mount/cooling & Bilge diagram for your 1985 Kawasaki JS550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

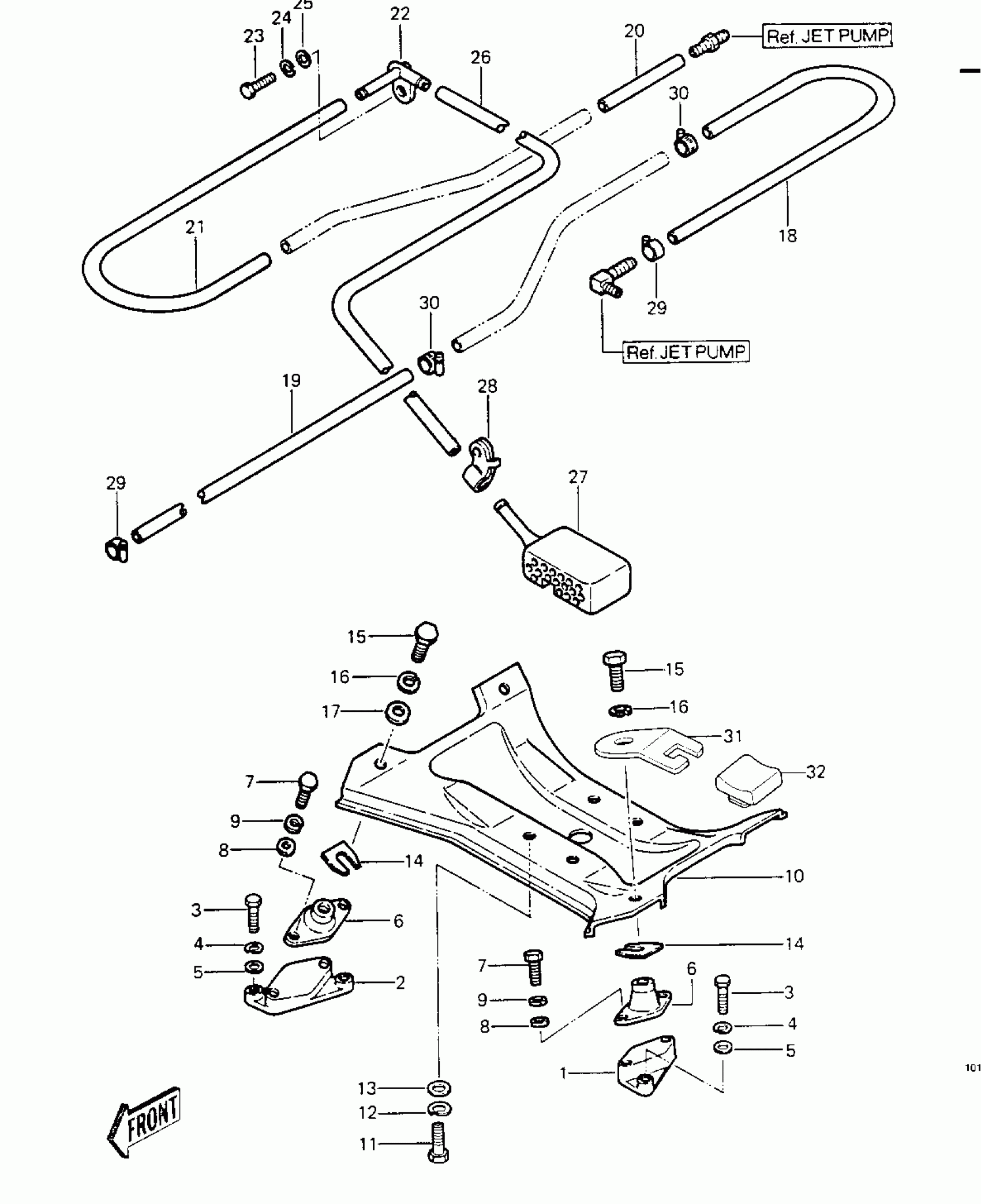

1985 Kawasaki JS550 Engine Mount/cooling & Bilge Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,ENGINE MOUNT

59016-532

1
Out of stock

2

BRACKET,ENGINE MOUNT

59016-533

1
Out of stock

3

BOLT,8X20

110R0820

1
Out of stock

4

WASHER SPRING 8MM

461S0800

1
Out of stock

5

WASHER-PLAIN,8MM

411S0800

1
Out of stock

6

DAMPER,ENGINE MOUNT

92160-3756

1
Out of stock

7

BOLT,8X20

110R0820

1
Out of stock

8

WASHER-PLAIN,8MM

411S0800

1
Out of stock

9

WASHER SPRING 8MM

461S0800

1
Out of stock

10

MOUNT-ENGINE

59181-509-9G

1
Out of stock

11

BOLT,1/2"X31

92003-533

1
Out of stock

12

WASHER-SPRING,14MM

461S1400

1
Out of stock

13

WASHER-PLAIN,14MM

411S1400

1
Out of stock

14

SHIM,T=0.3MM

92025-3701

—
Out of stock

14

SHIM,T=0.5MM

92025-3702

—
Out of stock

14

SHIM,T=1.0MM

92025-3703

—
Out of stock

14

SHIM,T=1.5MM

92025-3704

—
Out of stock

15

BOLT,10X25

110R1025

1
Out of stock

16

WASHER-SPRING,10MM

461S1000

1
Out of stock

17

WASHER,32X10.5X4

92022-3023

1
Out of stock

18

TUBE,9X360

92059-503

1
Out of stock

19

TUBE,9X280

92059-535

1
Out of stock

20

TUBE,9X90

92059-557

1
Out of stock

21

TUBE,9X280

92059-535

1
Out of stock

22

BREATHER,BILGE

14069-3001

1
Out of stock

23

BOLT,8X25

110R0825

1
Out of stock

24

WASHER SPRING 8MM

461S0800

1
Out of stock

25

WASHER,PLAIN

92022-3026

1
Out of stock

26

TUBE,9X280

92059-535

1
Out of stock

27

FILTER,BILGE

59236-504

1
Out of stock

28

CLAMP

92037-537

1
Out of stock

29

CLAMP

92037-504

1
Out of stock

30

CLAMP

92037-504

1
Out of stock

31

BRACKET-MUFFLER

32069-3701

1
Out of stock

32

DAMPER,MUFFLER

92075-3701

1
Out of stock
