1985 Kawasaki JS550 Cylinder Head/cylinder Diagram

← All diagrams

Find the part on the Cylinder Head/cylinder diagram for your 1985 Kawasaki JS550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

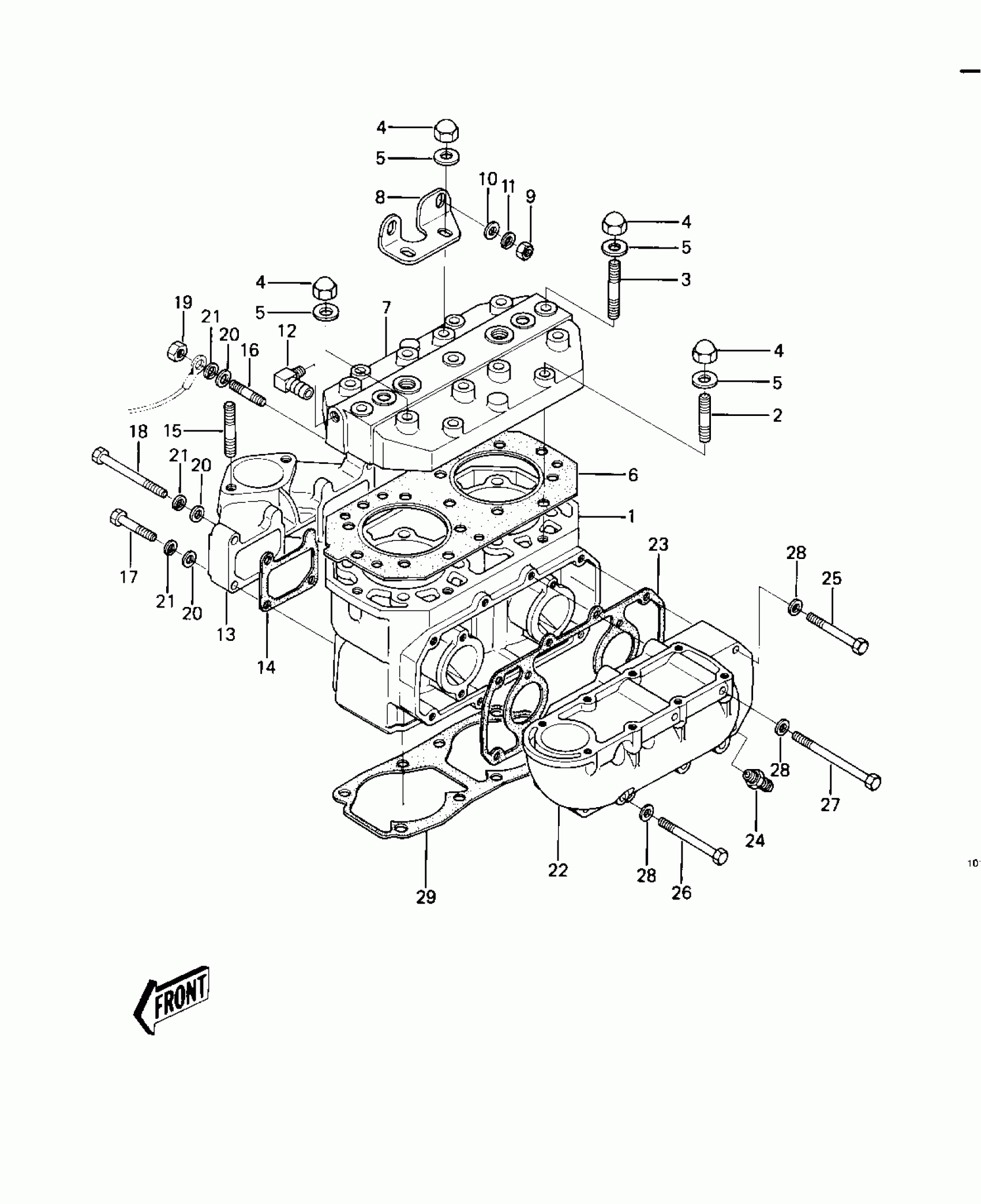

1985 Kawasaki JS550 Cylinder Head/cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER-ENGINE

11005-3030-YR

1
Out of stock

2

STUD,8X42

92004-3016

1
Out of stock

3

STUD,8X50

92004-3017

1
Out of stock

4

NUT-CAP,8MM

92015-3003

1
Out of stock

5

WASHER-PLAIN,8MM

411S0800

1
Out of stock

6

GASKET-HEAD

11004-3709

1
Out of stock

7

HEAD-COMP-CYLINDER

11008-3004-YR

1
Out of stock

8

BRACKET,CARBURETOR

11034-3002

1
Out of stock

9

NUT-HEX,6MM

311R0600

1
Out of stock

10

WASHER,PLAIN,6M/M

92022-3018

1
Out of stock

11

WASHER-SPRING,6MM

461S0600

1
Out of stock

12

ELBOW

52014-3002

1
Out of stock

13

MANIFOLD-INTAKE

59076-505-YR

1
Out of stock

14

GASKET,INTAKE

11009-3785

1
Out of stock

15

BOLT-STUD,8X35

172R0835

1
Out of stock

16

BOLT-STUD,6X35

171R0635

1
Out of stock

17

BOLT 6X35

110R0635

1
Out of stock

18

BOLT,6X70

110R0670

1
Out of stock

19

NUT-HEX,6MM

311R0600

1
Out of stock

20

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock

21

WASHER-SPRING,6MM

461S0600

1
Out of stock

22

MANIFOLD-EXHAUST

59081-3015-YR

1
Out of stock

23

GASKET,EXHAUST MANIFOLD

11009-3779

1
Out of stock

24

FITTING,HOSE

92005-3001

1
Out of stock

25

BOLT,6X50

110R0650

1
Out of stock

26

BOLT,6X70

110R0670

1
Out of stock

27

BOLT 6X90

110R0690

1
Out of stock

28

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock

29

GASKET,CYLINDER BASE

11009-3782

1
Out of stock
