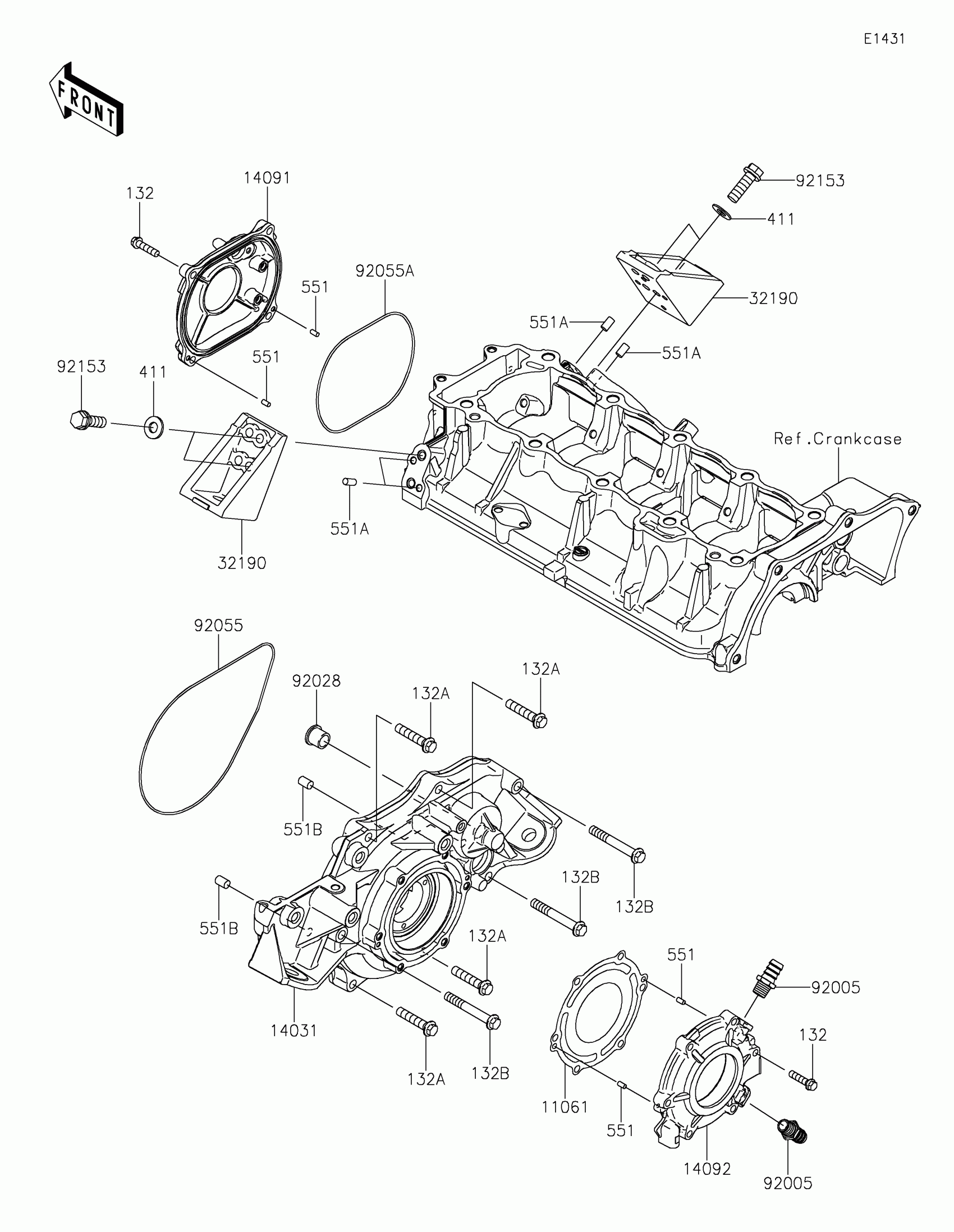

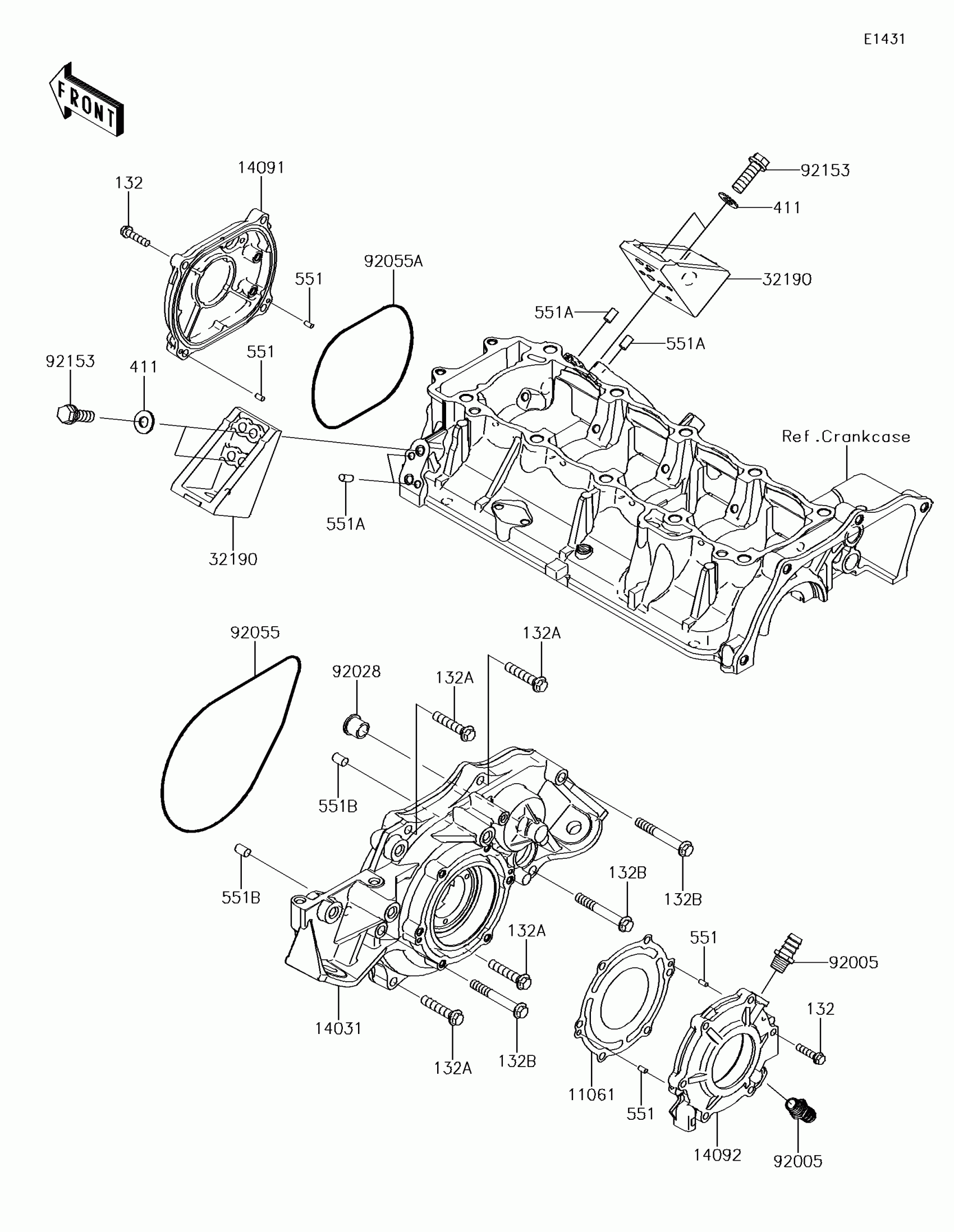

Kawasaki JET SKI® ULTRA® 310X Engine Cover(s) Diagram

Description

Price

11061

GASKET,OUTPUT COVER

11061-0812

$9.28

132

BOLT-FLANGED-SMALL,6X25

132BD0625

$4.09

132A

BOLT-FLANGED-SMALL,8X40

132BD0840

$4.92

132B

BOLT-FLANGED-SMALL,8X60

132BD0860

$2.18

14031

COVER-GENERATOR

14031-3738

$286.70

14091

COVER,PULS

14091-3763

$93.34

14092

COVER,OUTPUT

14092-1048

$111.05

32190

BRACKET-ENGINE

32190-3703

$39.81

411

WASHER-PLAIN,8MM

411S0800

$2.15

551

PIN-DOWEL

551R0408

$4.09

551A

PIN-DOWEL

551R0612

$3.57

551B

PIN-DOWEL

551R0812

$6.04

92005

FITTING

92005-3714

$14.12

92028

BUSHING

92028-3718

$7.18

92055

RING-O,196X3

92055-3761

$11.98

92055A

RING-O,120X3

92055-3762

$8.49

92153

BOLT,FLANGED,8X30

92153-3722

$1.81
