2018 Kawasaki JET SKI® Ultra® 310X Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2018 Kawasaki JET SKI® Ultra® 310X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

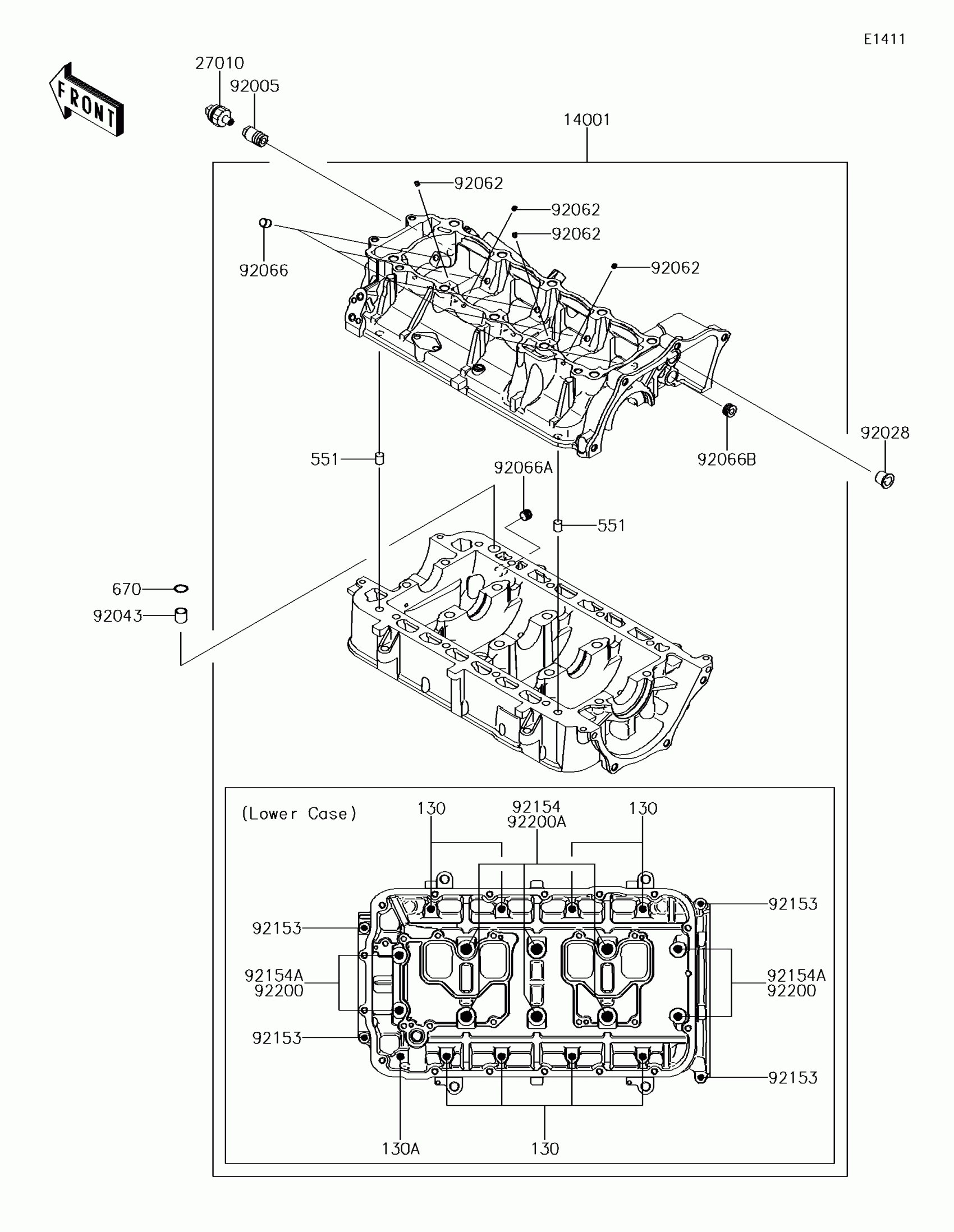

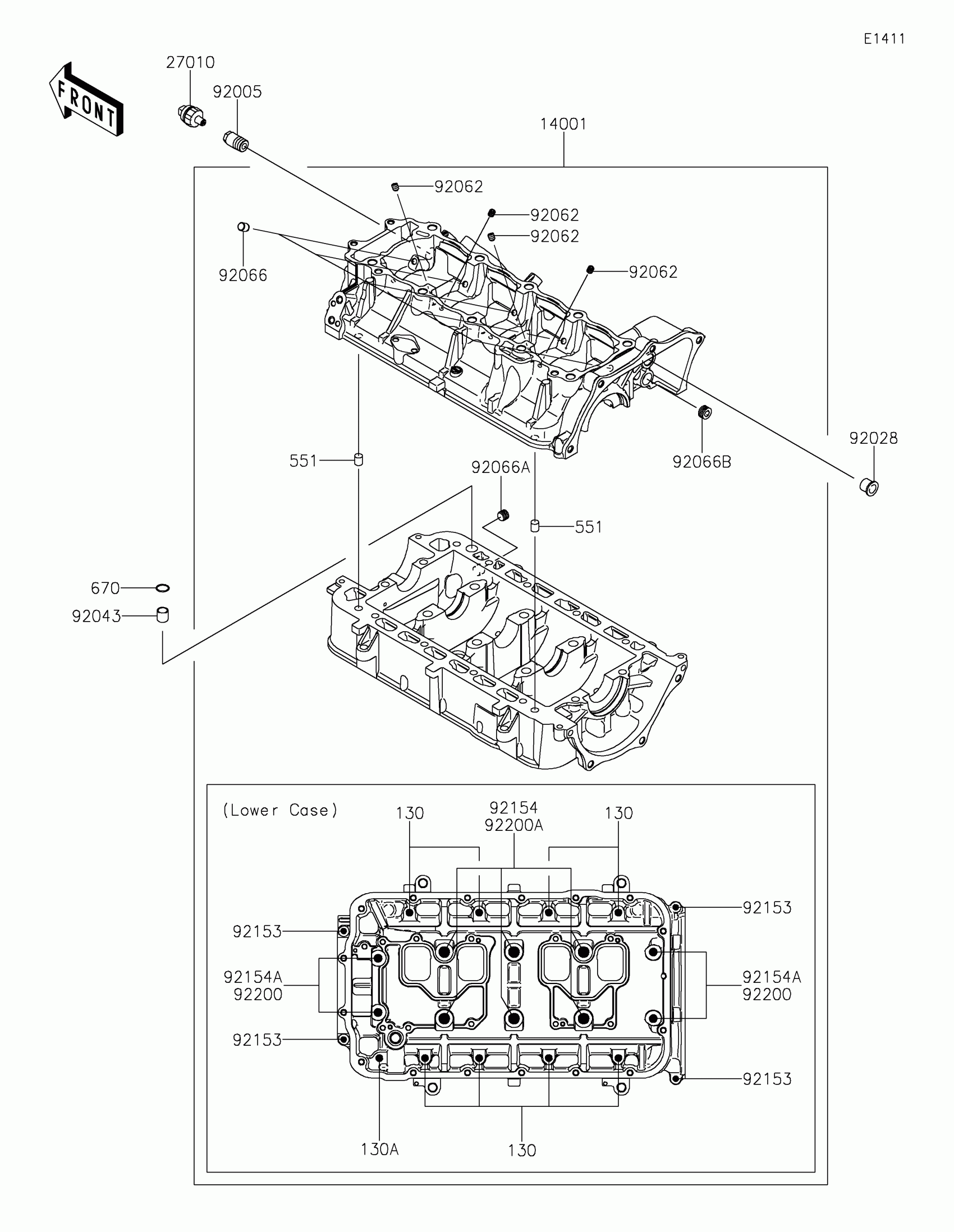

2018 Kawasaki JET SKI® Ultra® 310X Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X45

130CD0845

1

$3.58

In stock

130A

BOLT-FLANGED,8X55

130CD0855

1

$4.90

In stock

14001

SET-CRANKCASE

14001-0614

1

$1,606.02

In stock

27010

SWITCH,OIL PRESSURE

27010-3786

1
Out of stock

551

PIN-DOWEL

551R1012

1
Out of stock

670

O RING,14MM

670D2014

1
Out of stock

92005

FITTING

92005-0714

1
Out of stock

92028

BUSHING

92028-3718

1
Out of stock

92043

PIN,11.5X14X14

92043-1279

1
Out of stock

92062

NOZZLE

92062-0029

1
Out of stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92066A

PLUG

92066-3778

1
Out of stock

92066B

PLUG

92066-3782

1
Out of stock

92153

BOLT,6X30

92153-3707

1
Out of stock

92154

BOLT

92154-0719

1
Out of stock

92154A

BOLT

92154-0720

1
Out of stock

92200

WASHER

92200-0743

1
Out of stock

92200A

WASHER,11.5X20.5X1.6

92200-0747

1
Out of stock
