Description

Price

12046

SPROCKET,17T

12046-3711

$45.63

13031

CRANKSHAFT-COMP

13031-3743

$1,494.21

13107

SHAFT

13107-3810

$106.41

13251

ROD-ASSY-CONNECTING,I

13251-3703-II

$229.92

13251A

ROD-ASSY-CONNECTING,J

13251-3703-JJ

$213.77

42034

COUPLING

42034-3723

$239.92

92015

NUT,CONNECTING ROD

92015-1559

$4.93

92045

BEARING-BALL,6208ZZ AS2S

92045-3739

$51.98

92049

SEAL-OIL,SD347626LHS

92049-3736

$22.37

92049A

SEAL-OIL,FPJ740628.5ZS

92049-3737

$23.42

92049B

SEAL-OIL,S40626NS

92049-3738

$11.64

92055

RING-O,27.7X2.4

92055-091

$4.93

92139

BUSHING,CONNECTING ROD,GREEN

92139-0722

$13.95

92139A

BUSHING,CONNECTING ROD,YELLOW

92139-0723

$13.95

92139B

BUSHING,CONNECTING ROD,PINK

92139-0724

$13.95

92139C

BUSHING,CRANKSHAFT,#1,GREEN

92139-0725

$13.95

92139D

BUSHING,CRANKSHAFT,#1,YEL

92139-0726

$16.63

92139E

BUSHING,CRANKSHAFT,#1,PINK

92139-0727

$16.63

92139F

BUSHING,CRANKSHAFT,#2,GREEN

92139-0728

$13.95

92139G

BUSHING,CRANKSHAFT,#2,YEL

92139-0729

$13.95

92139H

BUSHING,CRANKSHAFT,#2,PINK

92139-0730

$13.95

92139I

BUSHING,CRANKSHAFT,#3,GREEN

92139-0731

$13.95

92139J

BUSHING,CRANKSHAFT,#3,YELLOW

92139-0732

$13.95

92139K

BUSHING,CRANKSHAFT,#3,PINK

92139-0733

$16.63

92152

COLLAR,30X40X18

92152-3759

$60.73

92154

BOLT,CONNECTING ROD,9MM

92154-3720

$3.26

92200

WASHER

92200-3789

$30.05

92200A

WASHER,30.5X52X1.5

92200-3808

$5.46

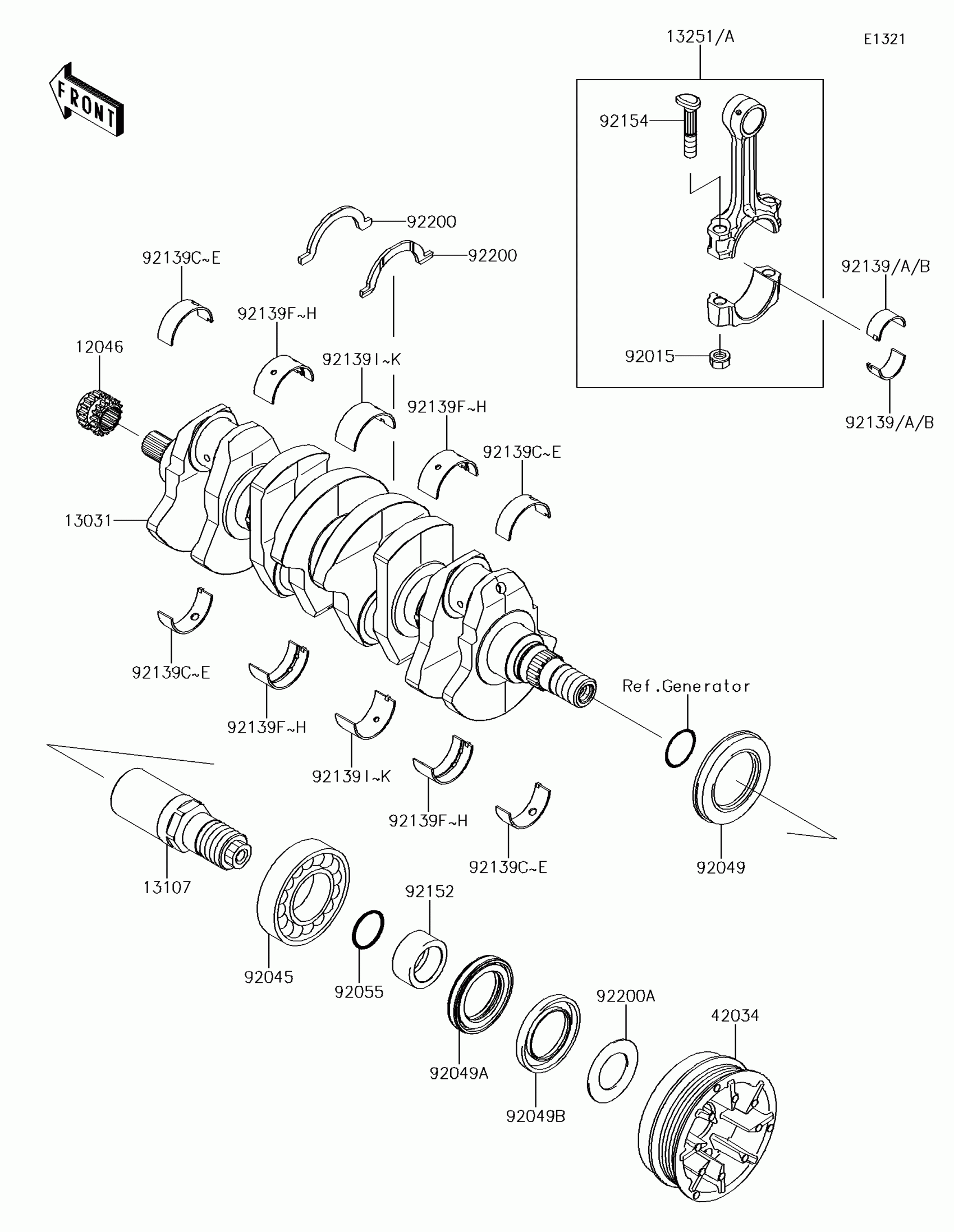

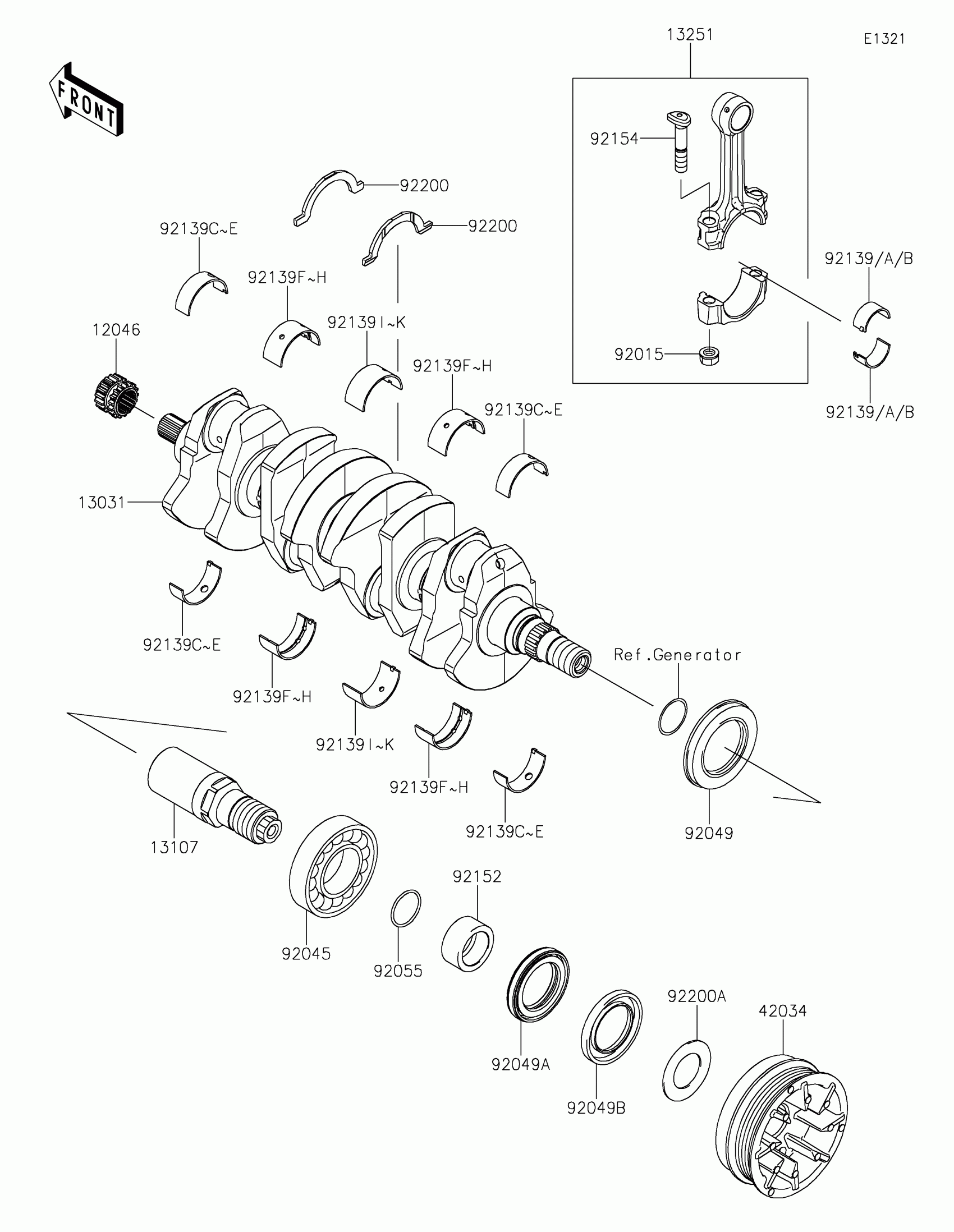

Kawasaki JET SKI® ULTRA® 310X Crankshaft Diagram
