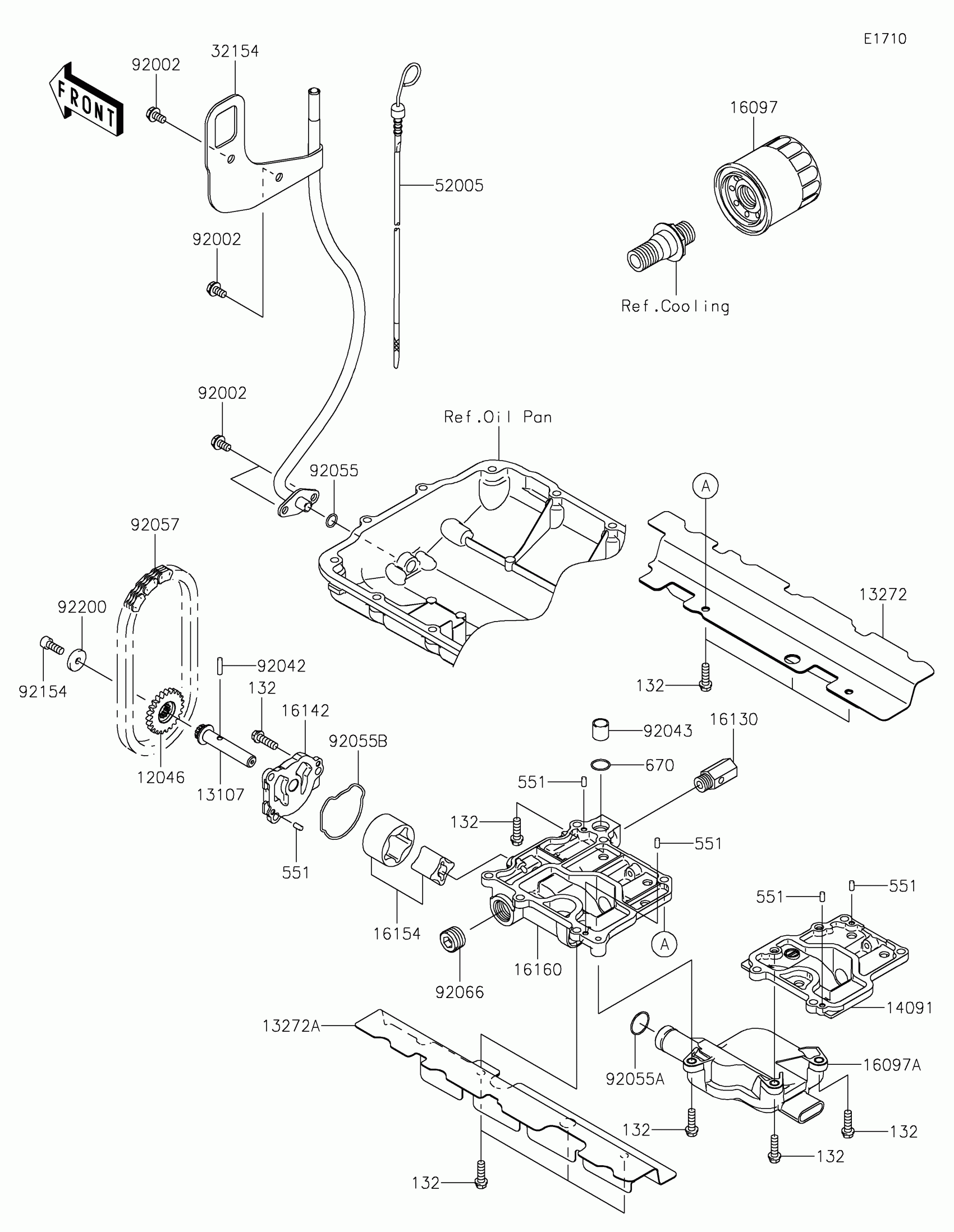

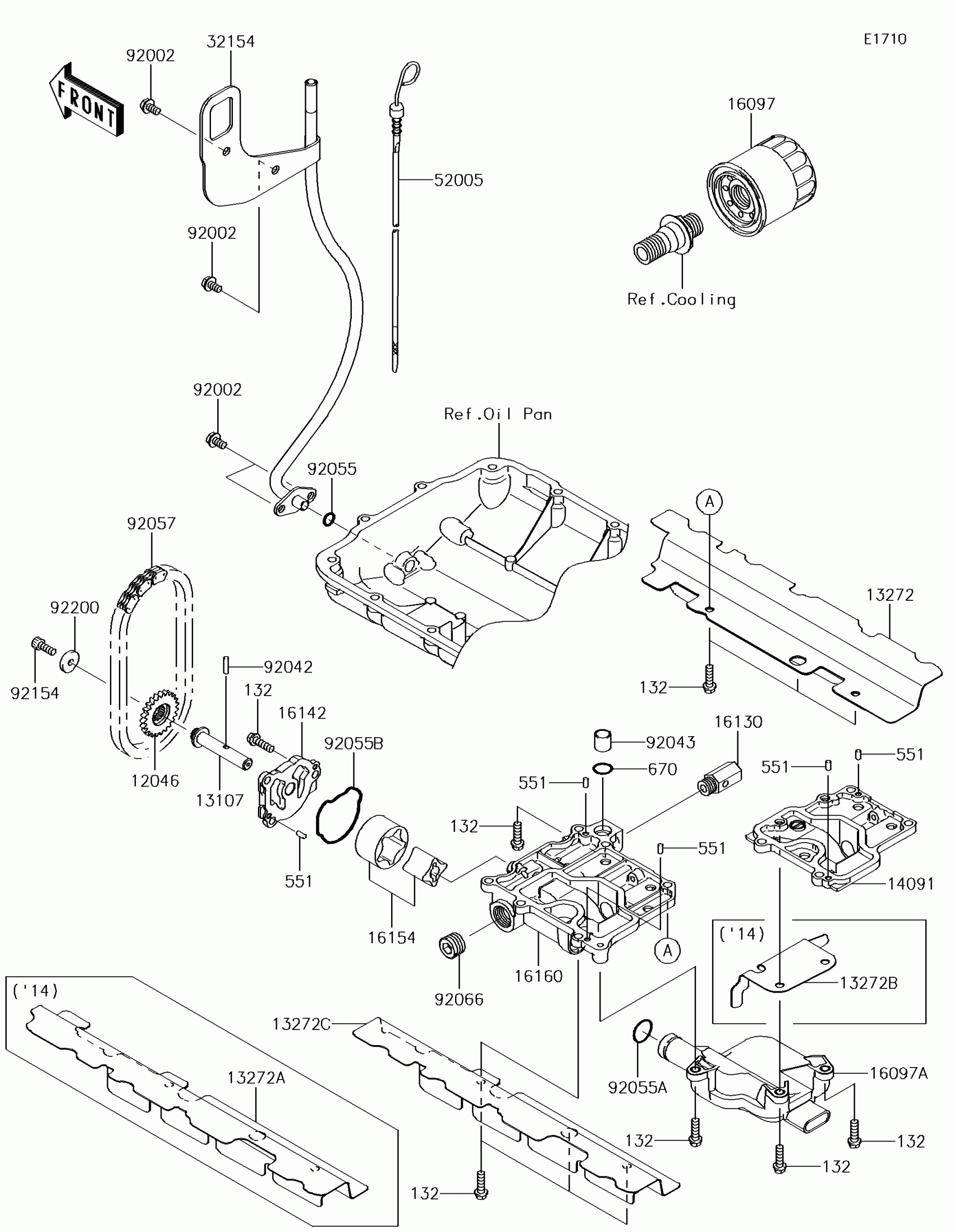

Kawasaki JET SKI® ULTRA® 310LX Oil Pump Diagram

Description

Price

12046

SPROCKET,23T

12046-3708

$17.68

13107

SHAFT

13107-0730

$48.64

132

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.28

13272

PLATE,RH

13272-1563

$36.57

13272C

PLATE,LH

13272-1798

$37.48

14091

COVER

14091-3767

$78.59

16097

FILTER-ASSY-OIL

16097-0007

$12.25

16097A

FILTER-ASSY-OIL

16097-3702

$46.60

16130

VALVE-ASSY-RELIEF

16130-3701

$47.89

16142

COVER-PUMP

16142-3703

$38.28

16154

ROTOR-PUMP

16154-1124

$64.18

16160

BODY,OIL PUMP

16160-0705

$132.11

32154

PIPE,OIL LEVEL

32154-3721

$185.83

52005

GAUGE,OIL LEVEL

52005-0729

$32.66

551

PIN-DOWEL

551R0408

$4.27

670

O RING,14MM

670D2014

$4.37

92002

BOLT,6X12

92002-3763

$3.72

92042

PIN,DOWEL,4X15.8

92042-014

$0.49

92043

PIN,11.5X14X14

92043-1279

$3.97

92055

RING-O,9.8X2.4

92055-1150

$6.44

92055A

RING-O,19.8X1.9

92055-1332

$3.72

92055B

RING-O

92055-3764

$5.21

92057

CHAIN,OIL PUMP,98XRH2010-52L

92057-3713

$26.44

92066

PLUG,PT1/2X12.5

92066-0002

$8.75

92154

BOLT,SOCKET,6X16

92154-3709

$1.66

92200

WASHER,6X20X3.2

92200-0120

$1.78
