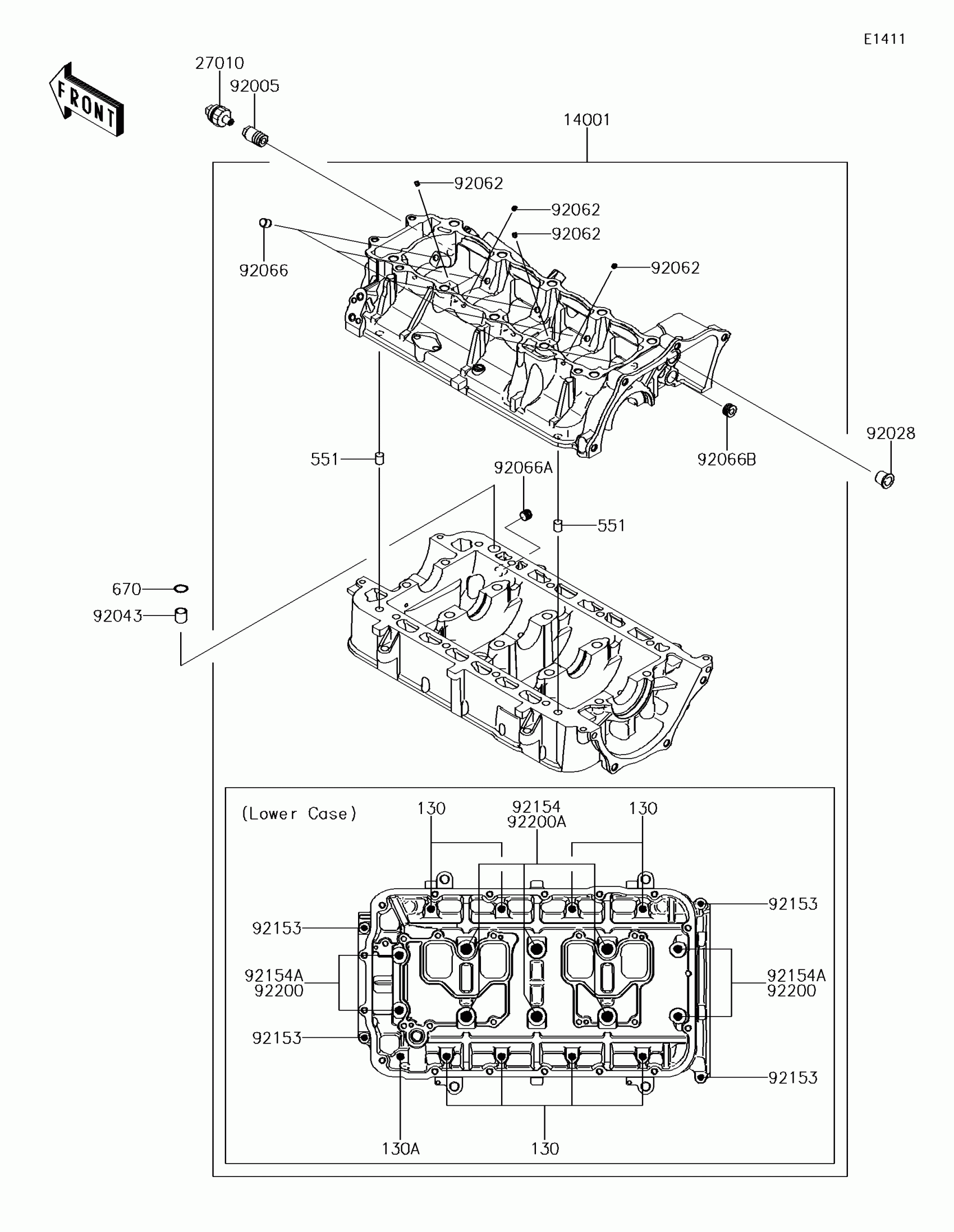

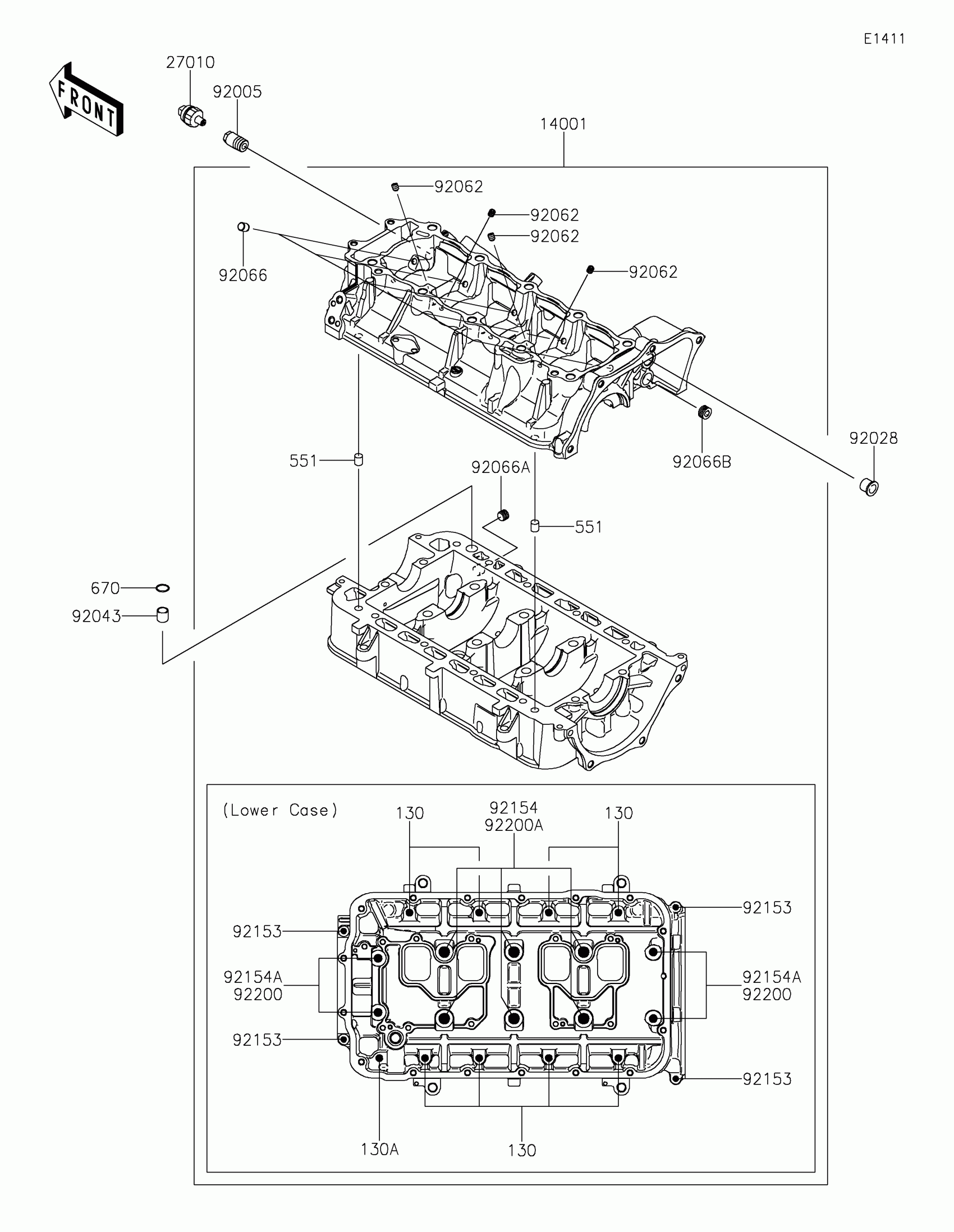

Kawasaki JET SKI® ULTRA® 310LX Crankcase Diagram

Description

Price

130

BOLT-FLANGED,8X45

130CD0845

$3.58

130A

BOLT-FLANGED,8X55

130CD0855

$4.90

14001

SET-CRANKCASE

14001-0614

$1,606.02

27010

SWITCH,OIL PRESSURE

27010-3786

$62.10

551

PIN-DOWEL

551R1012

$5.71

670

O RING,14MM

670D2014

$4.37

92005

FITTING

92005-0714

$26.35

92028

BUSHING

92028-3718

$7.48

92043

PIN,11.5X14X14

92043-1279

$3.97

92062

NOZZLE

92062-0029

$5.44

92066

PLUG,OIL LINE,7.2X8

92066-1012

$5.66

92066A

PLUG

92066-3778

$10.63

92066B

PLUG

92066-3782

$10.63

92153

BOLT,6X30

92153-3707

$2.63

92154

BOLT

92154-0719

$12.02

92154A

BOLT

92154-0720

$9.14

92200

WASHER

92200-0743

$16.78

92200A

WASHER,11.5X20.5X1.6

92200-0747

$18.34
