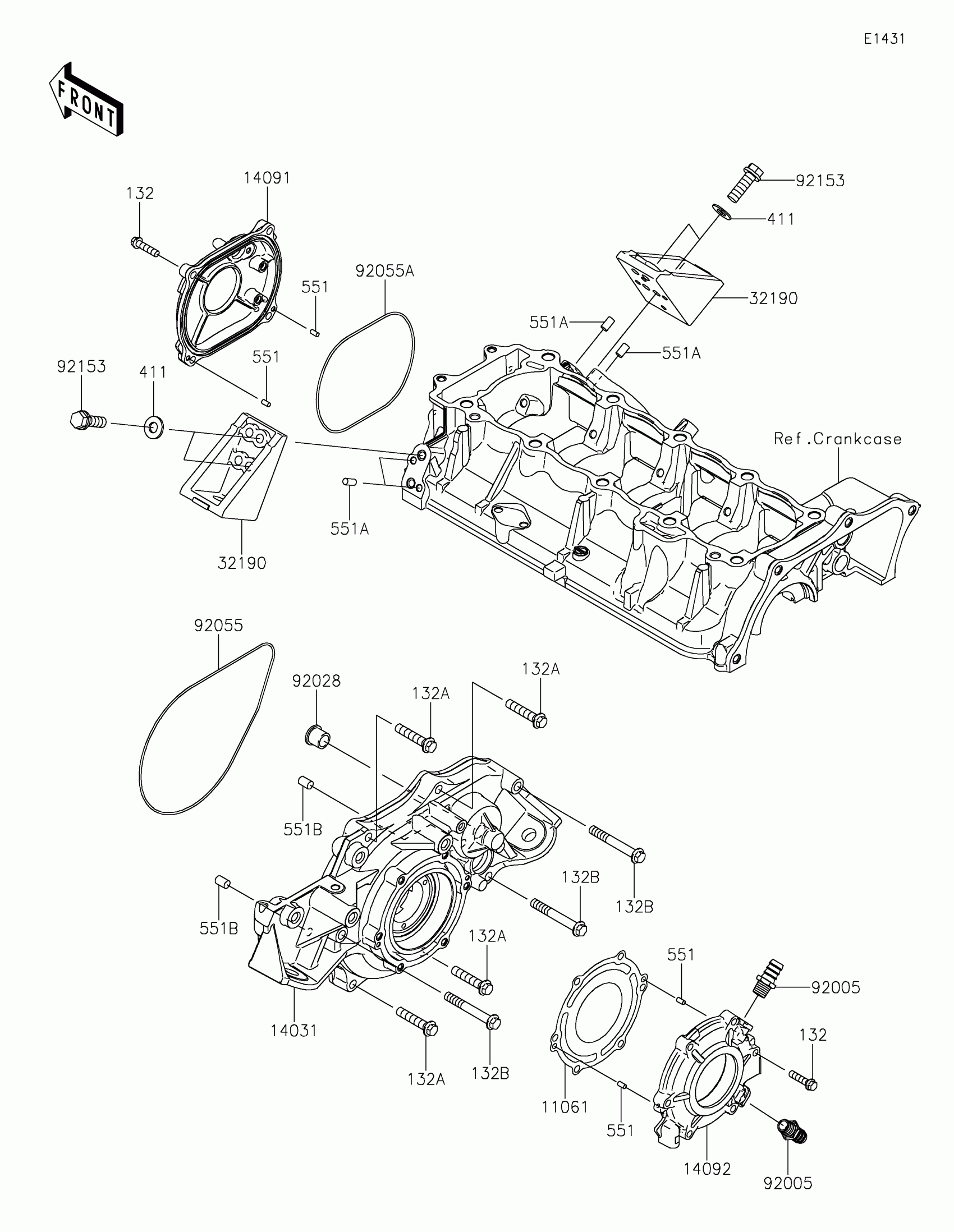

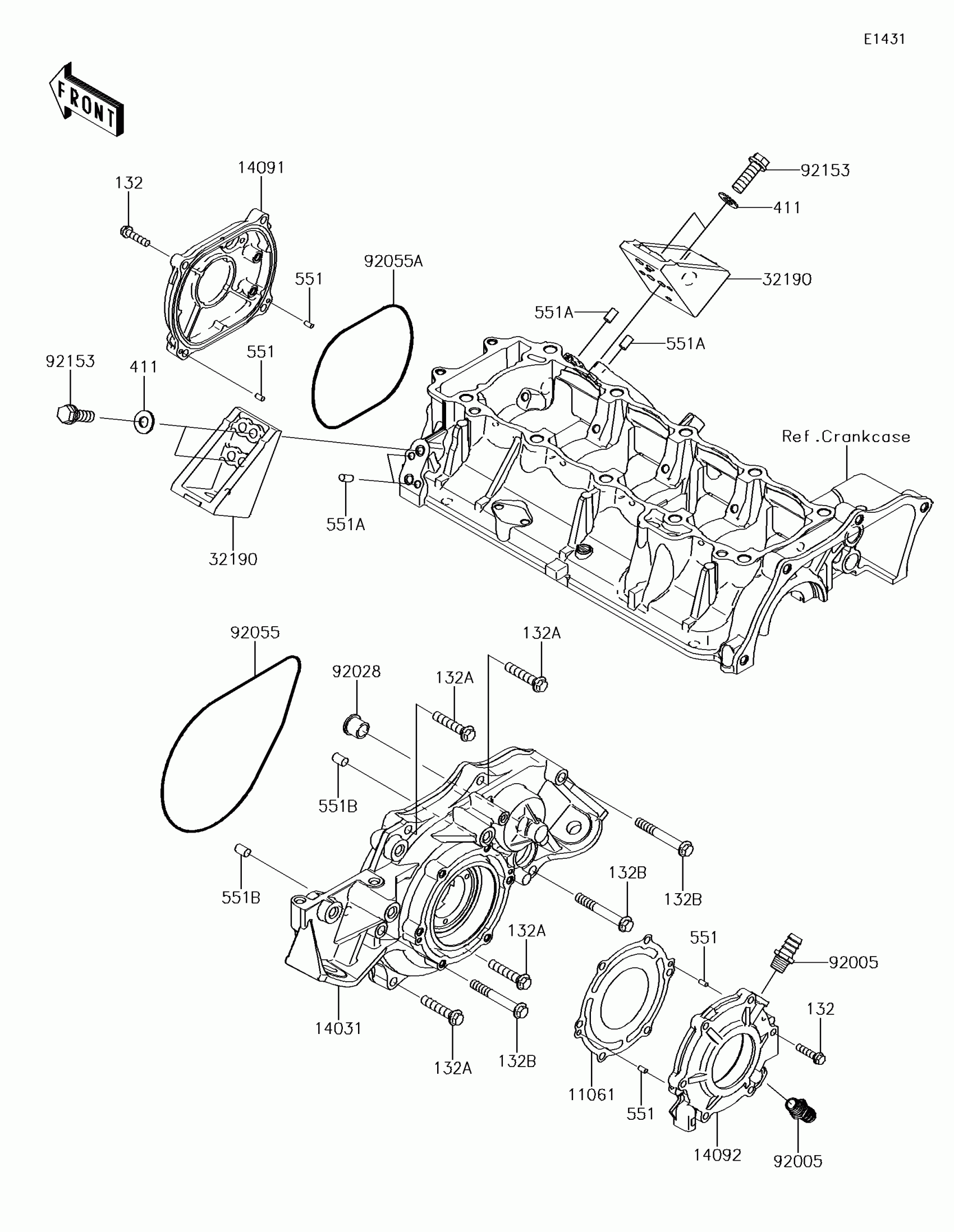

Kawasaki JET SKI® ULTRA® 310LX Engine Cover(s) Diagram

Description

Price

11061

GASKET,OUTPUT COVER

11061-0812

$9.67

132

BOLT-FLANGED-SMALL,6X25

132BD0625

$4.28

132A

BOLT-FLANGED-SMALL,8X40

132BD0840

$4.92

132B

BOLT-FLANGED-SMALL,8X60

132BD0860

$2.53

14031

COVER-GENERATOR

14031-3738

$286.70

14091

COVER,PULS

14091-3763

$93.34

14092

COVER,OUTPUT

14092-1048

$111.05

32190

BRACKET-ENGINE

32190-3703

$39.81

411

WASHER-PLAIN,8MM

411S0800

$2.49

551

PIN-DOWEL

551R0408

$4.27

551A

PIN-DOWEL

551R0612

$3.72

551B

PIN-DOWEL

551R0812

$6.30

92005

FITTING

92005-3714

$14.71

92028

BUSHING

92028-3718

$7.48

92055

RING-O,196X3

92055-3761

$12.48

92055A

RING-O,120X3

92055-3762

$8.85

92153

BOLT,FLANGED,8X30

92153-3722

$2.10
