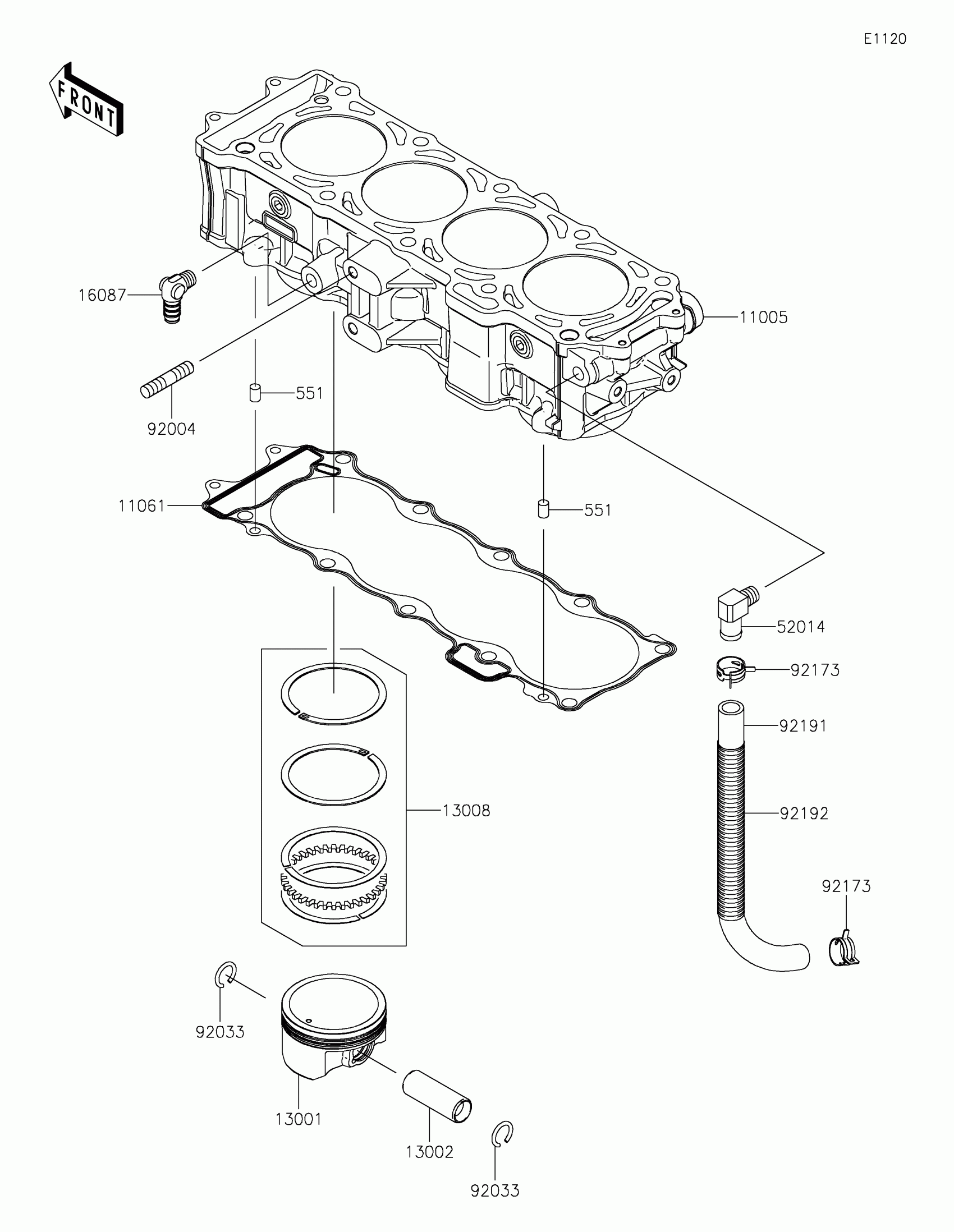

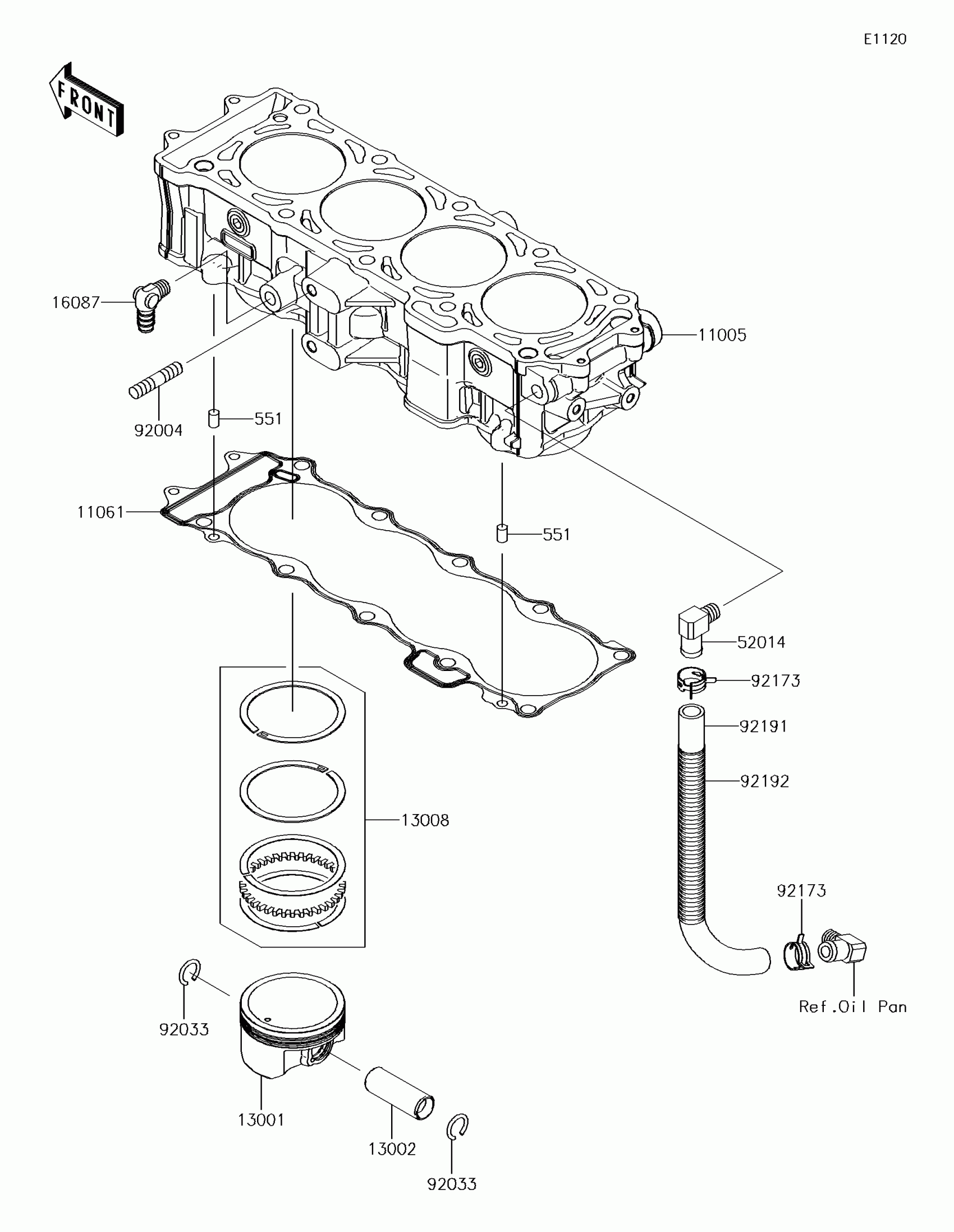

Kawasaki JET SKI® ULTRA® 310LX Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-0630

$1,653.18

11061

GASKET,CYLINDER BASE

11061-3770

$59.61

13001

PISTON-ENGINE

13001-0787

$92.67

13002

PIN-PISTON

13002-1131

$29.80

13008

RING-SET-PISTON

13008-0564

$66.52

16087

VALVE-CHECK

16087-3714

$115.33

52014

ELBOW

52014-3717

$33.70

551

PIN-DOWEL

551R0812

$6.30

92004

STUD,10X32

92004-3759

$7.76

92033

RING-SNAP

92033-1188

$2.83

92173

CLAMP

92173-1039

$2.44

92191

TUBE,BREATHER

92191-3983

$15.36

92192

TUBE,CORRUGATED,L=265

92192-1083

$16.63
