1981 Yamaha IT465 (IT465H) Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1981 Yamaha IT465 (IT465H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

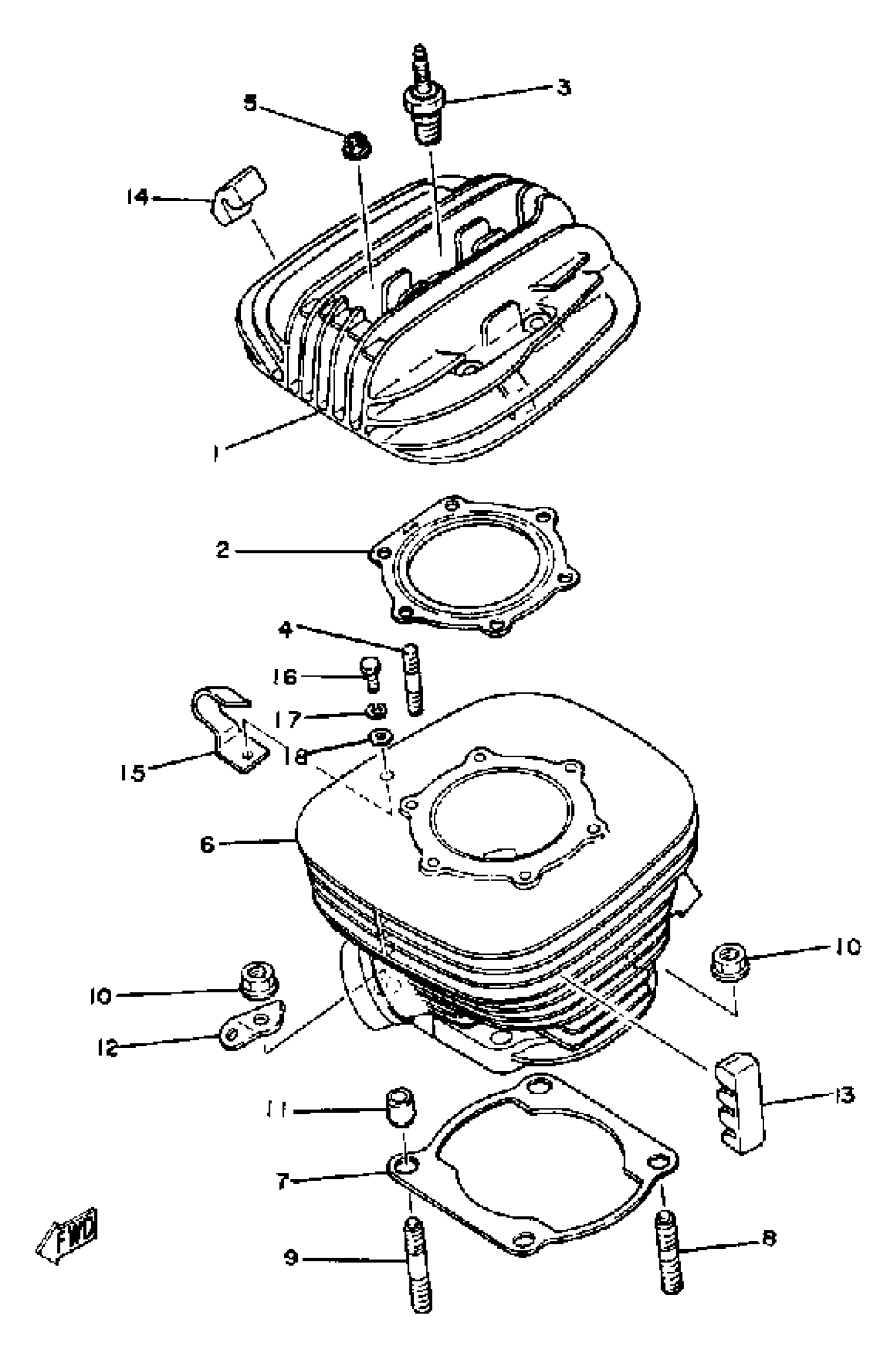

1981 Yamaha IT465 (IT465H) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

(3R5-11111-00-00)

1
Out of stock

2

GASKET, CYLINDER HEAD 1

4V6-11181-00-00

1
Out of stock

3

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

1
Out of stock

4

BOLT, STUD(3XV)

90116-08564-00

1

$9.60

In stock

5

NUT(55X)

90179-08491-00

1
Out of stock

6

CYLINDER 1

4V6-11311-00-00

1
Out of stock

7

GASKET, CYLINDER

40T-11351-01-00

1

$19.46

In stock

8

BOLT, STUD

90116-12315-00

1
Out of stock

9

BOLT, STUD

90116-12316-00

1
Out of stock

10

NUT(3GG)

90179-12588-00

1

$5.65

In stock

11

PIN, DOWEL(MH0)

91815-16017-00

1

$6.82

In stock

12

HOOK, SPRING

3R5-14619-00-00

1
Out of stock

13

ABSORBER 3

2A6-11127-00-00

1
Out of stock

14

ABSORBER 1

4V5-11161-00-00

1
Out of stock

15

HOLDER 1

4V5-1131E-00-00

1
Out of stock

16

BOLT(8CP)

97017-06014-00

—

$5.12

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER, PLATE(36Y)

90201-063J2-00

—

$4.45

In stock
