1981 Yamaha IT465 (IT465H) Crankshaft-Piston Diagram

← All diagrams

Find the part on the Crankshaft-Piston diagram for your 1981 Yamaha IT465 (IT465H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

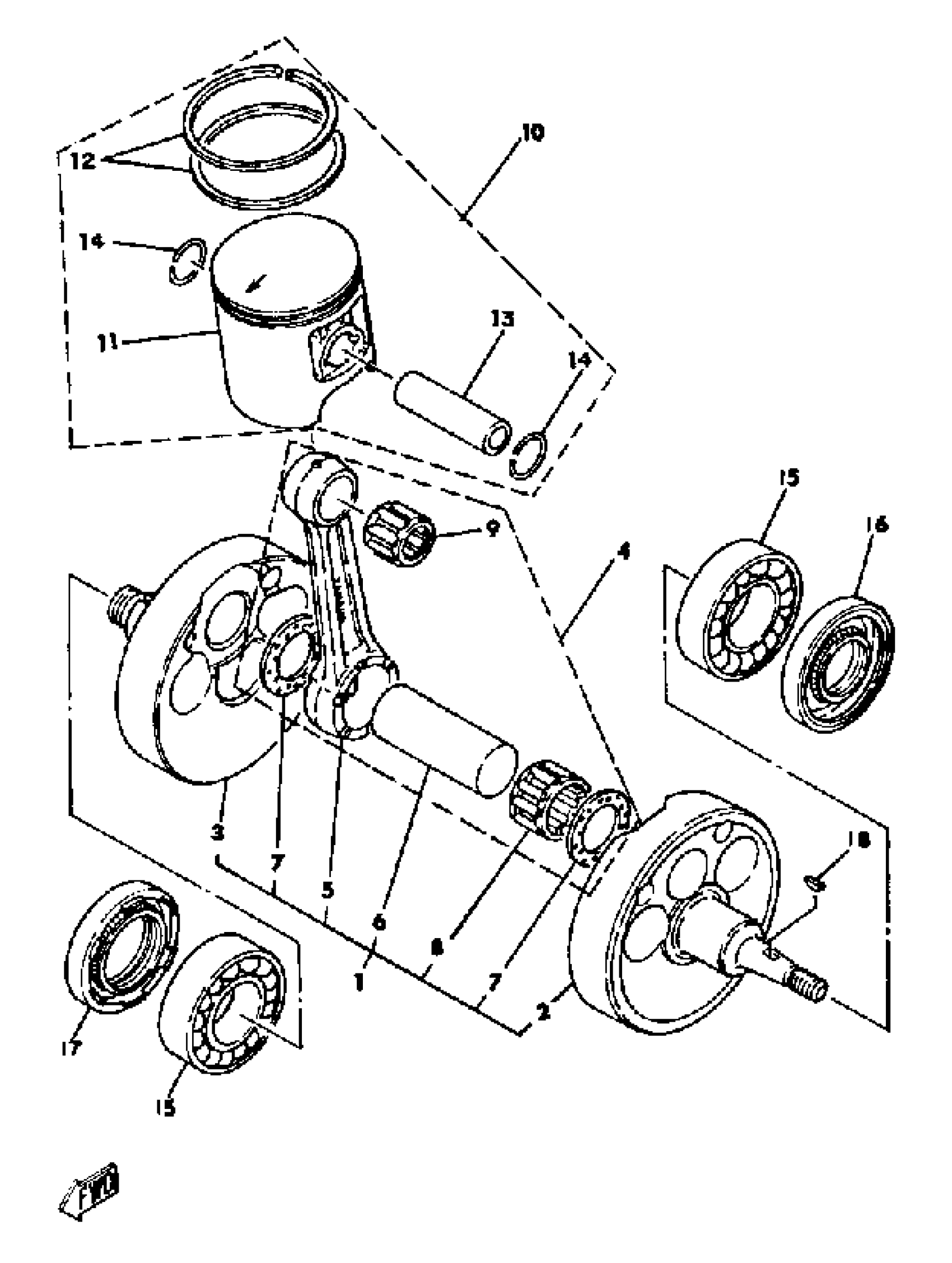

1981 Yamaha IT465 (IT465H) Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(4V6-11400-00-00)

1
Out of stock

2

. CRANK 1

4V6-11412-00-00

1
Out of stock

3

CRANK 2

(4V6-11422-00-00)

1
Out of stock

4

CONNECTING ROD ASSY

3R5-11650-00-00

—

$287.35

In stock

5

ROD, CONNECTING

3R5-11651-00-00

1

$187.49

In stock

6

PIN, CRANK

3R8-11681-00-00

1

$43.63

In stock

7

WASHER 275116850000

90209-25085-00

1

$10.43

In stock

8

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

9

1

$41.97

In stock

10

PISTON KIT STD

(4V6-11630-00-00)

1
Out of stock

11

. PISTON STD

4V6-11631-00-94

1
Out of stock

12

. PISTON RINGSET STD

4V6-11610-00-00

1
Out of stock

13

PIN, PISTON

275-11633-00-00

1

$30.66

In stock

14

CIRCLIP (2F1)

93450-19052-00

1

$5.85

In stock

15

BRG,R-B 6306 72MM 351G KY

93306-30615-00

1

$72.96

In stock

16

OIL SEAL(38V)

93103-30150-00

—

$19.71

In stock

17

OIL SEAL (434)

93103-40091-00

—

$27.25

In stock

18

PISTON RINGSET 1ST

4V6-11610-10-00

1
Out of stock

18

PISTON RINGSET 2ND

4V6-11610-20-00

1
Out of stock

18

PISTON RINGSET 3RD

4V6-11610-30-00

1
Out of stock

18

PISTON RINGSET 4TH

4V6-11610-40-00

1
Out of stock

18

PISTON KIT 1ST

4V6-11630-10-00

1
Out of stock

18

PISTON KIT 3RD

4V6-11630-30-00

1
Out of stock

18

PISTON KIT 4TH

4V6-11630-40-00

1
Out of stock

18

PISTON 1 O/S 0.25

4V6-11635-00-00

1
Out of stock

18

PISTON 2 O/S 0.50

4V6-11636-00-00

1
Out of stock

18

PISTON 3 O/S 0.75

4V6-11637-00-00

1
Out of stock

18

PISTON 4 O/S 1.00

4V6-11638-00-00

1
Out of stock

18

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock
