1981 Yamaha IT465 (IT465H) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1981 Yamaha IT465 (IT465H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

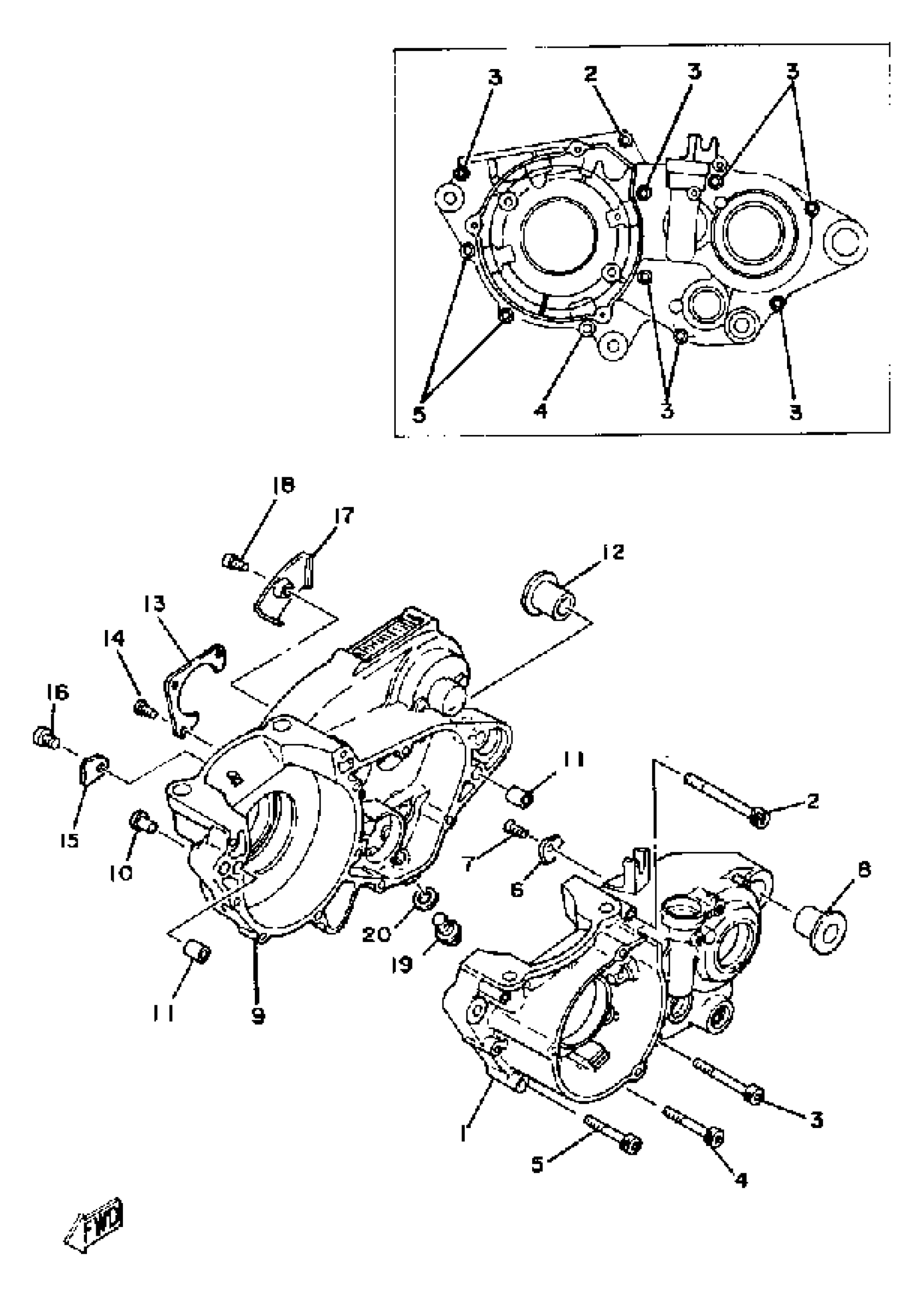

1981 Yamaha IT465 (IT465H) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET (3R5)

99999-01366-00

1
Out of stock

2

BOLT, SOCKET

91317-06075-00

1
Out of stock

3

BOLT,SOCKET

91317-06060-00

1
Out of stock

4

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

5

BOLT,SOCKET

91317-06045-00

1
Out of stock

6

PLATE, BEARING COVER

3AK-15383-01-00

1

$7.91

In stock

7

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

8

COLLAR

90387-16776-00

1
Out of stock

9

CRANKCASE SET (3R5)

99999-01366-00

1
Out of stock

10

PLUG (17J)

90338-07124-00

1

$8.55

In stock

11

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

12

COLLAR

90387-16776-00

1
Out of stock

13

PLATE, BEARING COVER

3R4-15381-00-00

1

$4.28

In stock

14

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

15

HOLDER

4V4-15118-00-00

1

$25.38

In stock

16

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

17

PLATE

3R4-15113-00-00

1
Out of stock

18

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

19

—

$2.82

In stock

20

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock
Crankcase Cover →
