1981 Yamaha IT465 (IT465H) Kick-Starter Diagram

← All diagrams

Find the part on the Kick-Starter diagram for your 1981 Yamaha IT465 (IT465H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

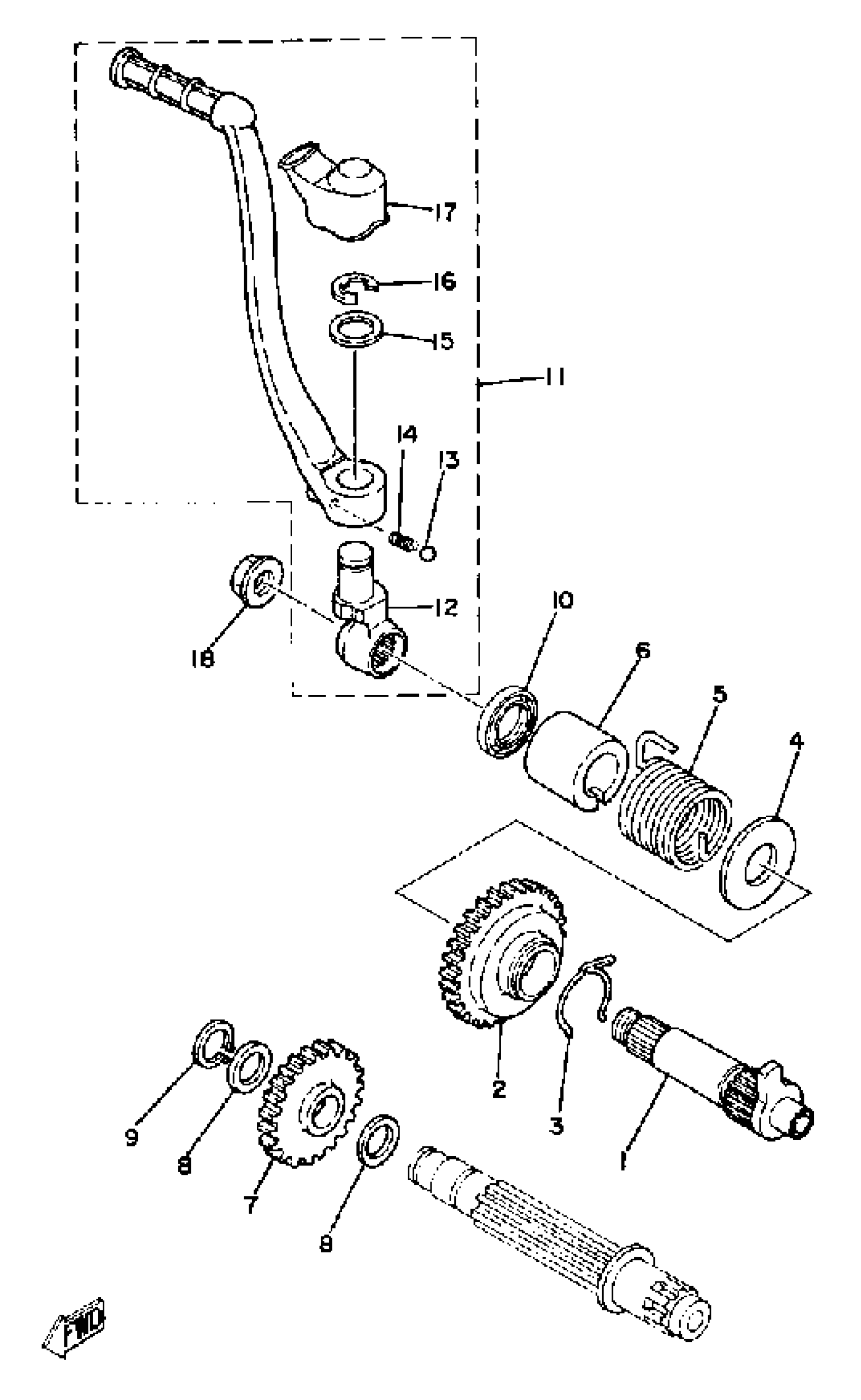

1981 Yamaha IT465 (IT465H) Kick-Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, KICK

56A-15661-01-00

1
Out of stock

2

GEAR, KICK

3R4-15641-00-00

1
Out of stock

3

CLIP 315156870000

90468-26048-00

1
Out of stock

4

WASHER, PLATE

90201-20358-00

1
Out of stock

5

SPRING, TORSION (3R4)

90508-30422-00

1

$18.75

In stock

6

GUIDE, SPRING

3R4-15664-00-00

1
Out of stock

7

GEAR, KICK IDLE

3R4-15651-00-00

1
Out of stock

8

WASHER, PLATE (525)

90201-17545-00

1

$6.68

In stock

9

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

10

OIL SEAL,SD-TYPE

93102-20309-00

1

$8.77

In stock

11

KICK CRANK ASSEMBLY

3R4-15620-00-00

1
Out of stock

12

. BOSS, KICK CRANK

3R4-15621-01-00

1
Out of stock

13

BALL (12R)

93507-32031-00

1
Out of stock

14

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

15

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

16

CIRCLIP

99006-10600-00

—

$6.91

In stock

17

COVER, KICK LEVER

2K7-15618-00-00

1
Out of stock

18

NUT(1EE)

90179-12659-00

—

$5.37

In stock
