1980 Yamaha IT425 (IT425G) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1980 Yamaha IT425 (IT425G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

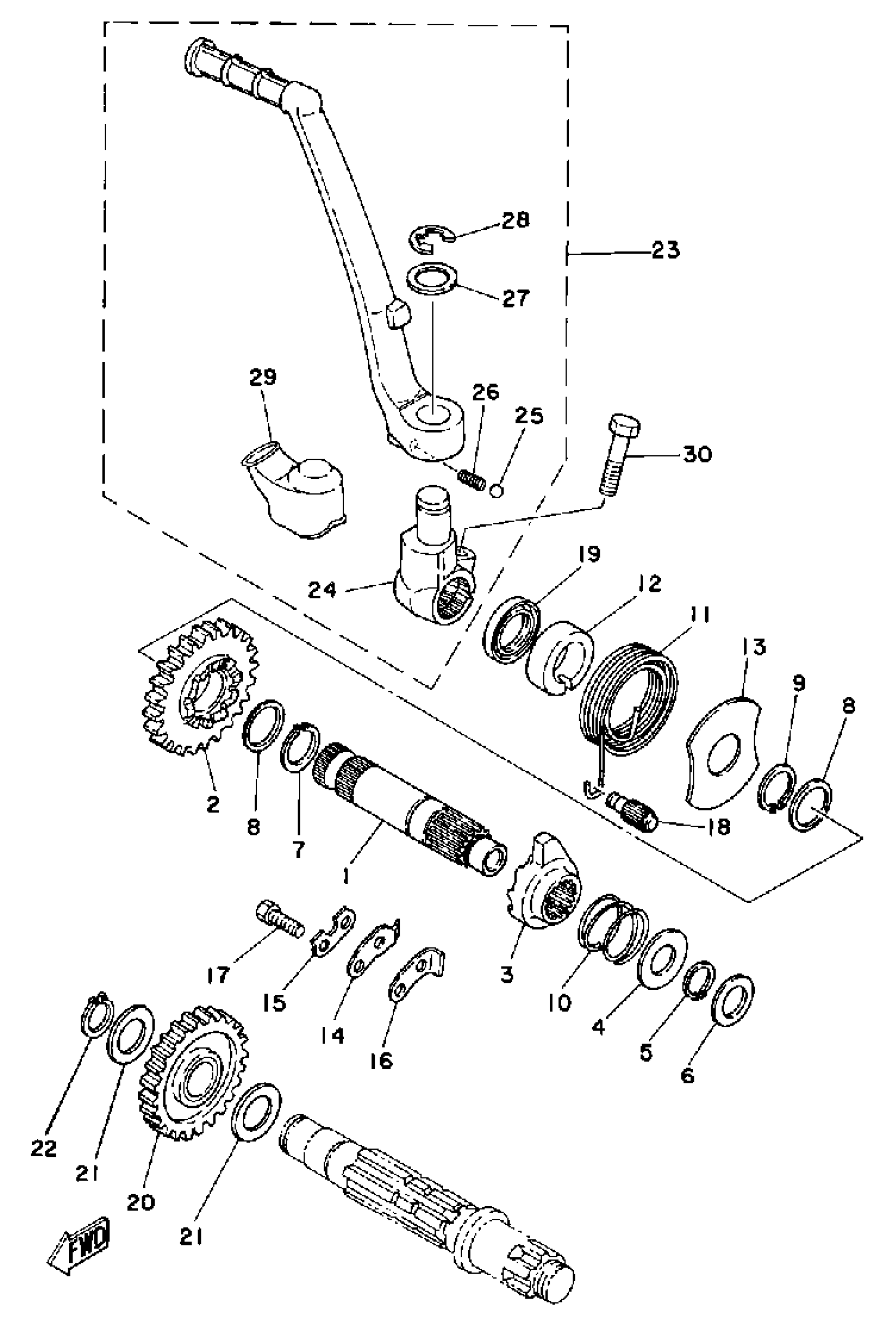

1980 Yamaha IT425 (IT425G) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK, KICK (2K7-15611-00-33)

2K7-15611-00-00

1
Out of stock

1

AXLE, KICK

(2K7-15661-01-00)

1
Out of stock

2

GEAR, KICK

(2K7-15641-01-00)

1
Out of stock

3

WHEEL, RATCHET

2K7-15671-01-00

1
Out of stock

4

WASHER, PLAIN (1JL)

90201-155K6-00

—
Out of stock

5

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

6

SHIM

132-15644-00-00

1
Out of stock

7

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

8

WASHER, PLATE (2K7)

90201-20685-00

1

$5.69

In stock

9

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

10

SPRING COMPRESSION168156750000

90501-16107-00

—
Out of stock

11

SPRING TORSION 291156650000

90508-32061-00

1
Out of stock

12

GUIDE, SPRING

3Y6-15664-00-00

—
Out of stock

13

COVER,SPRING

278-15676-00-00

1
Out of stock

14

GUIDE, RATCHET WHEEL

2NX-15674-00-00

1

$8.71

In stock

15

WASHER, LOCK

214-15686-00-00

—

$6.38

In stock

16

STOPPER

2NX-15668-00-00

—
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

18

STOPPER, KICK SPRING

248-15668-00-00

—
Out of stock

19

OIL SEAL,SD-TYPE

93102-20309-00

—

$8.77

In stock

20

GEAR, KICK IDLE

3R4-15651-00-00

1
Out of stock

21

WASHER, PLATE (525)

90201-17545-00

—

$6.68

In stock

22

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

23

KICK CRANK ASSEMBLY

(2K7-15620-00-00)

1
Out of stock

24

BOSS, KICK CRANK

583-15621-00-00

—
Out of stock

25

BALL (12R)

93507-32031-00

—
Out of stock

26

SPRING COMPRESSION278156220000

90501-12081-00

—
Out of stock

27

WASHER PLATE 278156130000

90201-15234-00

—

$6.78

In stock

28

CIRCLIP

99006-10600-00

—

$6.91

In stock

29

COVER, KICK LEVER

2K7-15618-00-00

1
Out of stock

30

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock
