1980 Yamaha IT425 (IT425G) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1980 Yamaha IT425 (IT425G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

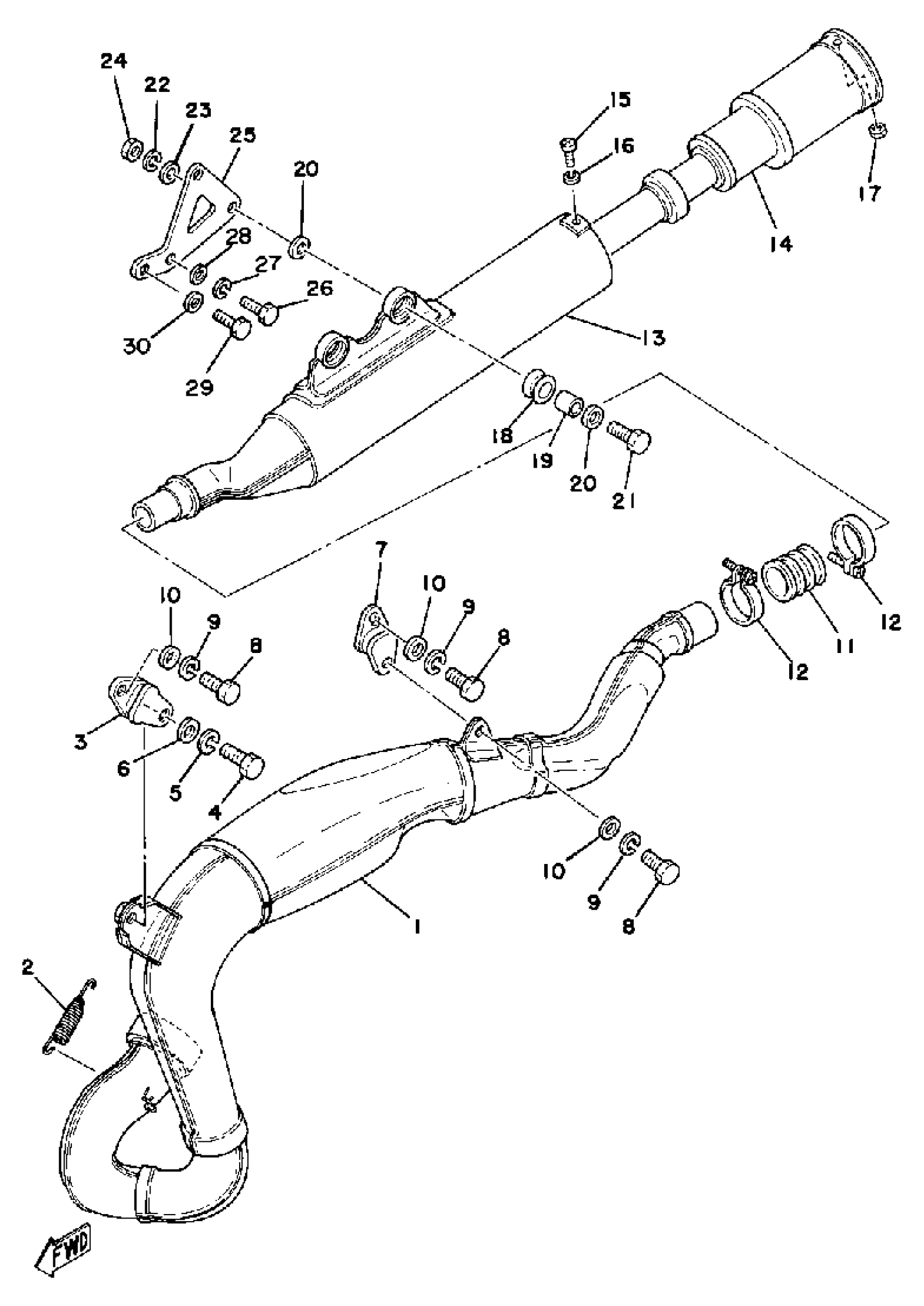

1980 Yamaha IT425 (IT425G) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(2X8-14610-01-00)

1
Out of stock

2

SPRING, TENSION (1W4)

90507-20030-00

1
Out of stock

3

STAY, MUFFLER 2

483-14781-03-00

—
Out of stock

4

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

7

STAY, MUFFLER 1

565-14771-01-00

1

$16.68

In stock

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

GASKET, MUFFLER JOINT

1M1-14714-00-00

—

$64.14

In stock

12

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

13

SILENCER, EXHAUST

(2X7-14753-00-00)

1
Out of stock

14

PIPE, OUTLET

2X8-14752-00-00

1
Out of stock

15

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

DAMPER

565-14747-00-00

—
Out of stock

19

COLLAR (437)

90387-08258-00

—
Out of stock

20

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

21

BOLT

97013-08035-00

—

$4.80

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

23

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

24

. NUT

95380-08700-00

1

$3.07

In stock

25

STAY, MUFFLER 2

1W6-14781-00-00

1
Out of stock

26

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

28

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

29

BOLT, HEXAGON (2X4)

90109-08512-00

—

$8.97

In stock

30

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

31

PIPE, CHOKE

(2X8-14634-00-00)

1
Out of stock

32

CAP, SILENCER

(2X7-14787-00-00)

1
Out of stock
