1980 Yamaha IT425 (IT425G) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1980 Yamaha IT425 (IT425G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

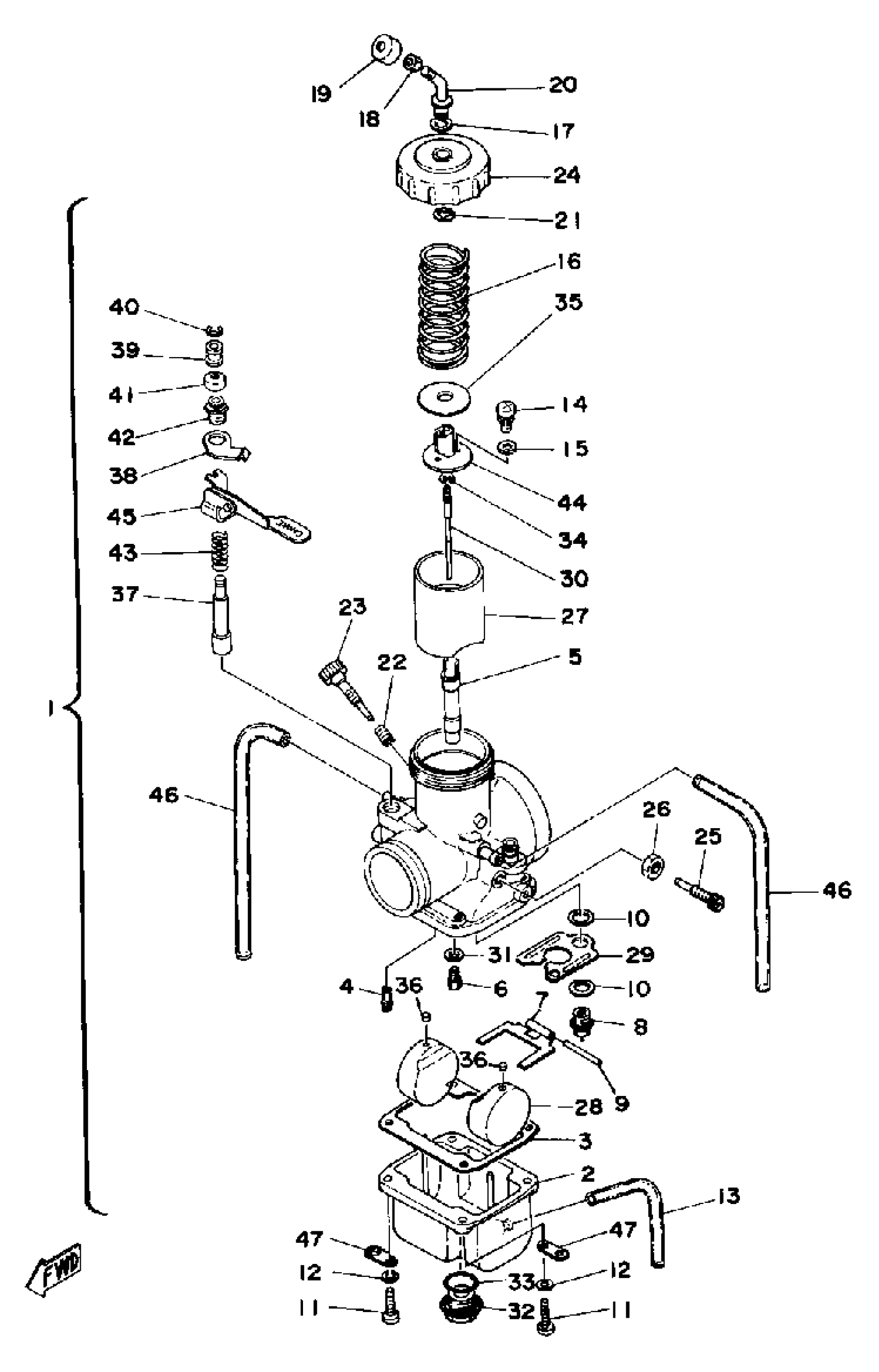

1980 Yamaha IT425 (IT425G) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(3R8-14101-00-00)

1
Out of stock

2

BODY, FLOAT CHMBR 1

(510-14181-16-00)

1
Out of stock

3

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

1

$20.86

In stock

4

. JET, PILOT #60

193-14142-60-00

1
Out of stock

5

. NOZZLE, MAIN (250G)

510-14141-48-00

1
Out of stock

6

JET,MAIN #400

137-14143-80-00

1

$6.38

In stock

6

JET,MAIN #410

137-14143-82-00

1

$6.38

In stock

6

JET,MAIN #420

137-14143-84-00

1

$6.38

In stock

7

. ARM, FLOAT

363-14187-00-00

1
Out of stock

8

NEEDLE VALVE SET

23X-14107-35-00

1

$39.59

In stock

9

PIN, FLOAT

537-14186-00-00

1
Out of stock

10

WASHER,VALVE SEAT

239-14195-00-00

—

$11.47

In stock

11

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

HOSE

88R-14987-00-00

1
Out of stock

14

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

15

WASHER(3SX)

92907-03600-00

—

$6.69

In stock

16

. SPRING, THROTTLE VALVE

363-14131-00-00

1
Out of stock

17

GASKET

509-14198-00-00

—

$16.34

In stock

18

NUT, WIRE ADJUSTING

127-14161-00-00

—

$7.20

In stock

19

CAP

3X3-14169-00-00

—

$15.20

In stock

20

. CABLE ADJUST SCREW SET

23X-14106-00-00

1
Out of stock

21

CLIP

363-14137-00-00

—

$9.95

In stock

22

SPRING, THROTTLE STOP

137-14133-00-00

—

$6.15

In stock

23

. AIR SCREW SET (1W3-14123-00)

26A-14104-00-00

1
Out of stock

24

. TOP, MIXING CHAMBER

1W3-14158-00-00

1
Out of stock

25

THROTTLE SCREW SET

23X-14103-00-00

—

$41.12

In stock

26

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

27

. VALVE, THROTTLE 1

2X8-14112-40-00

1
Out of stock

28

. FLOAT

214-14185-00-00

1
Out of stock

29

. PLATE

510-14146-00-00

1
Out of stock

30

. NEEDLE

239-14116-16-00

1
Out of stock

31

. WASHER, MAIN JET

2X8-14153-00-00

1
Out of stock

32

PLUG, SCREW

500-14115-00-00

—

$25.29

In stock

33

O-RING (541)

558-14147-00-00

—
Out of stock

34

CLIP

3FA-14137-00-00

—

$6.80

In stock

35

. SEAT, SPRING

509-14136-00-00

1
Out of stock

36

CAP

214-14118-00-00

—

$6.72

In stock

37

. PLUNGER, STARTER

1W1-14171-00-00

1
Out of stock

38

PLATE, STARTER LVR

(1W3-14178-00-00)

1
Out of stock

39

. BUSH

737-14241-00-00

1
Out of stock

40

. CLIP

737-14137-00-00

1
Out of stock

41

COVER, PLUNGER CAP

(2X7-14173-00-00)

1
Out of stock

42

. CAP, PLUNGER

802-14174-00-00

1
Out of stock

43

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

44

. CONNECTOR

509-14274-00-00

1
Out of stock

45

. COVER, PLUNGER CAP (1W3-14173-00-00)

1W3-14175-00-00

1
Out of stock

46

HOSE

89A-14987-00-00

—

$12.62

In stock

47

. PLATE

313-14146-00-00

1
Out of stock
