1979 Yamaha IT400 (IT400F) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1979 Yamaha IT400 (IT400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

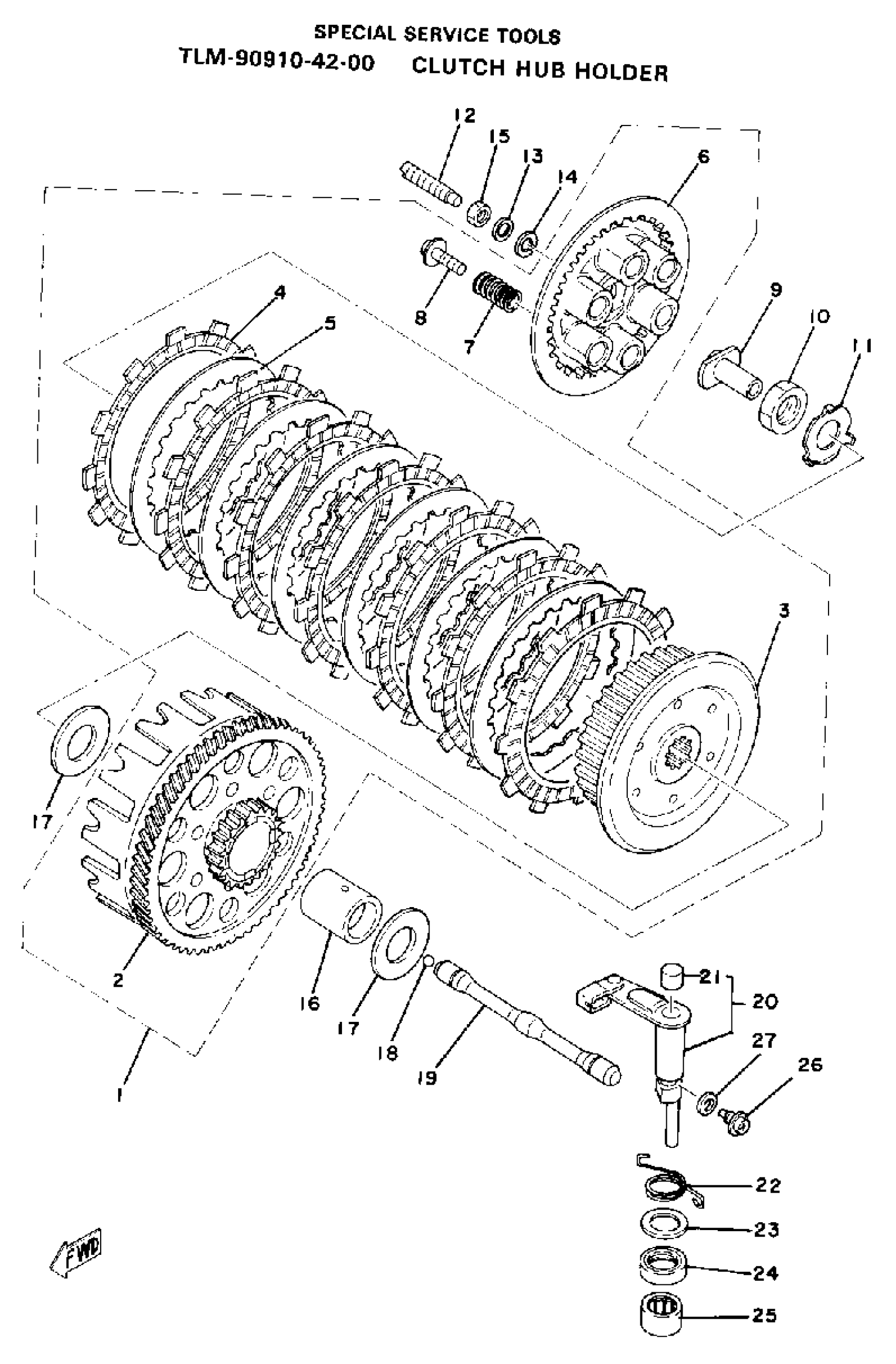

1979 Yamaha IT400 (IT400F) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH ASSEMBLY

(2X5-16300-00-00)

1
Out of stock

2

. PRI DRVN GEAR

2K7-16150-00-00

1
Out of stock

3

. BOSS, CLUTCH

2X5-16371-00-00

1
Out of stock

4

PLATE, FRICTION

4H7-16321-02-00

1

$20.06

In stock

5

PLATE, CLUTCH 2

360-16325-10-00

1
Out of stock

6

. PLATE, PRESSURE 1

1M1-16351-00-00

1
Out of stock

7

SPRING, COMPRESSION (510)

90501-24408-00

1

$3.00

In stock

8

SCREW, WITH WASHER (1W4)

90159-06016-00

1
Out of stock

9

ROD, PUSH 1

1M1-16356-00-00

1
Out of stock

10

NUT (3R4)

90170-20255-00

1

$8.78

In stock

11

WASHER, LOCK (3Y1)

90215-20159-00

—

$6.74

In stock

12

SCREW, SPECIAL SHAPE

90149-08105-00

1
Out of stock

13

WASHER, PLATE(49E)

90201-087H6-00

1

$1.62

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

NUT, HEXAGON SMALL

95317-08700-00

1

$7.05

In stock

16

SPACER 1

2K7-16181-00-00

1
Out of stock

17

PLATE, THRUST

2K7-16154-00-00

—

$18.11

In stock

18

BALL (1M1)

93515-32029-00

—
Out of stock

19

ROD, PUSH 2

1W4-16357-00-00

1
Out of stock

20

PUSH LEVER ASSEMBLY

2X4-16380-00-00

1
Out of stock

21

. PLUG, BLIND

214-17481-00-00

1
Out of stock

22

SPRING, TORSION

90508-14373-00

1
Out of stock

23

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

24

OIL SEAL (17X28X6-101)

93102-17004-00

—
Out of stock

25

BRG,CYL-CAL ROLLER 12G KY

93315-21721-00

—

$41.17

In stock

26

SCREW (1M1)

90149-08108-00

—

$12.06

In stock

27

GASKET(3AJ)

90430-08204-00

—

$6.36

In stock
