1979 Yamaha IT400 (IT400F) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1979 Yamaha IT400 (IT400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

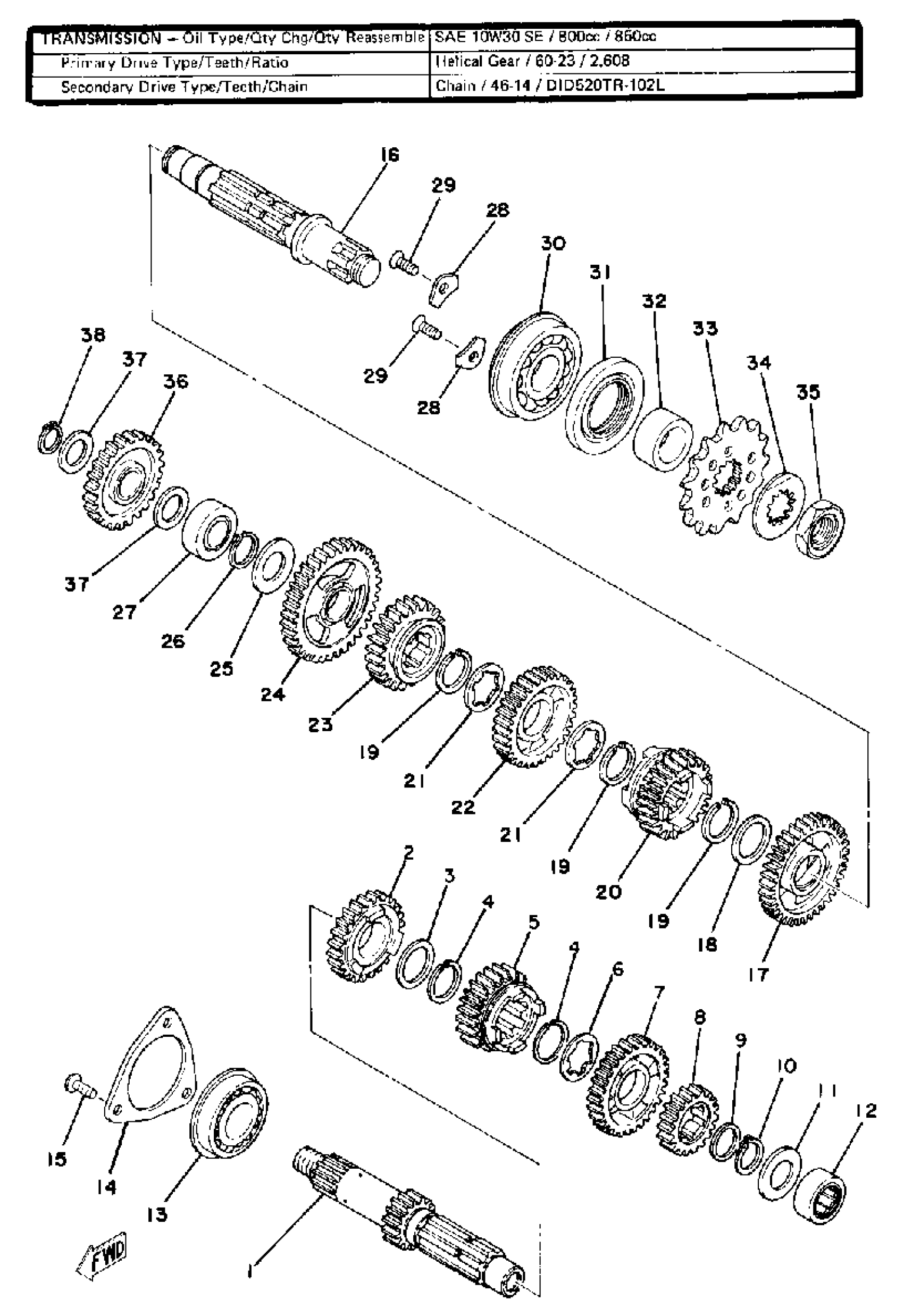

1979 Yamaha IT400 (IT400F) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(2X8-17411-00-00)

1
Out of stock

2

GEAR, 4TH PINION

2X8-17141-00-00

1
Out of stock

3

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

4

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

5

GEAR, 3RD PINION

(2X5-17131-01-00)

1
Out of stock

6

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

7

GEAR, 5TH PINION

(2X8-17151-01-00)

1
Out of stock

8

GEAR, 2ND PINION

(2X5-17121-00-00)

1
Out of stock

9

WASHER, PLATE

90201-20613-00

1
Out of stock

10

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

11

WASHER PLATE 168171160000

90201-20278-00

1
Out of stock

12

BEARING (2X7)

93311-62035-00

1

$48.30

In stock

13

BEARING (93306-20515)

93306-20535-00

1
Out of stock

14

PLATE,BRNG COVER

363-15383-00-00

1
Out of stock

15

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

16

AXLE, DRIVE

2X5-17421-00-00

1
Out of stock

17

GEAR, 2ND WHEEL

2X5-17221-00-00

1
Out of stock

18

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

19

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

20

GEAR, 5TH WHEEL

(2X8-17251-01-00)

1
Out of stock

21

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

22

GEAR, 3RD WHEEL

2X5-17231-00-00

1
Out of stock

23

GEAR, 4TH WHEEL

(2X8-17241-00-00)

1
Out of stock

24

GEAR, 1ST WHEEL

(2X8-17211-00-00)

1
Out of stock

25

WASHER PLATE 168171160000

90201-20278-00

1
Out of stock

26

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

27

BEARING (2X7)

93311-62035-00

1

$48.30

In stock

28

PLATE, BEARING COVER

4XM-15383-00-00

—

$11.03

In stock

29

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

30

BRG,R-B 4205 52MM 185G KY

93304-20501-00

—

$90.57

In stock

31

OIL SEAL (697)

93102-32M07-00

—

$16.32

In stock

32

COLLAR (2K7)

90387-25663-00

—

$25.15

In stock

33

—

$18.29

In stock

33

SPROCKET, DRIVE

93834-14051-00

1
Out of stock

33

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

1
Out of stock

34

WASHER, LOCK (23X)

90215-21239-00

—

$7.56

In stock

35

NUT (2K7)

90179-20255-00

—

$9.40

In stock

36

GEAR, KICK IDLE

3R4-15651-00-00

1
Out of stock

37

WASHER, PLATE (525)

90201-17545-00

—

$6.68

In stock

38

CIRCLIP(1EY)

99009-17400-00

—
Out of stock
