1979 Yamaha IT400 (IT400F) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1979 Yamaha IT400 (IT400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

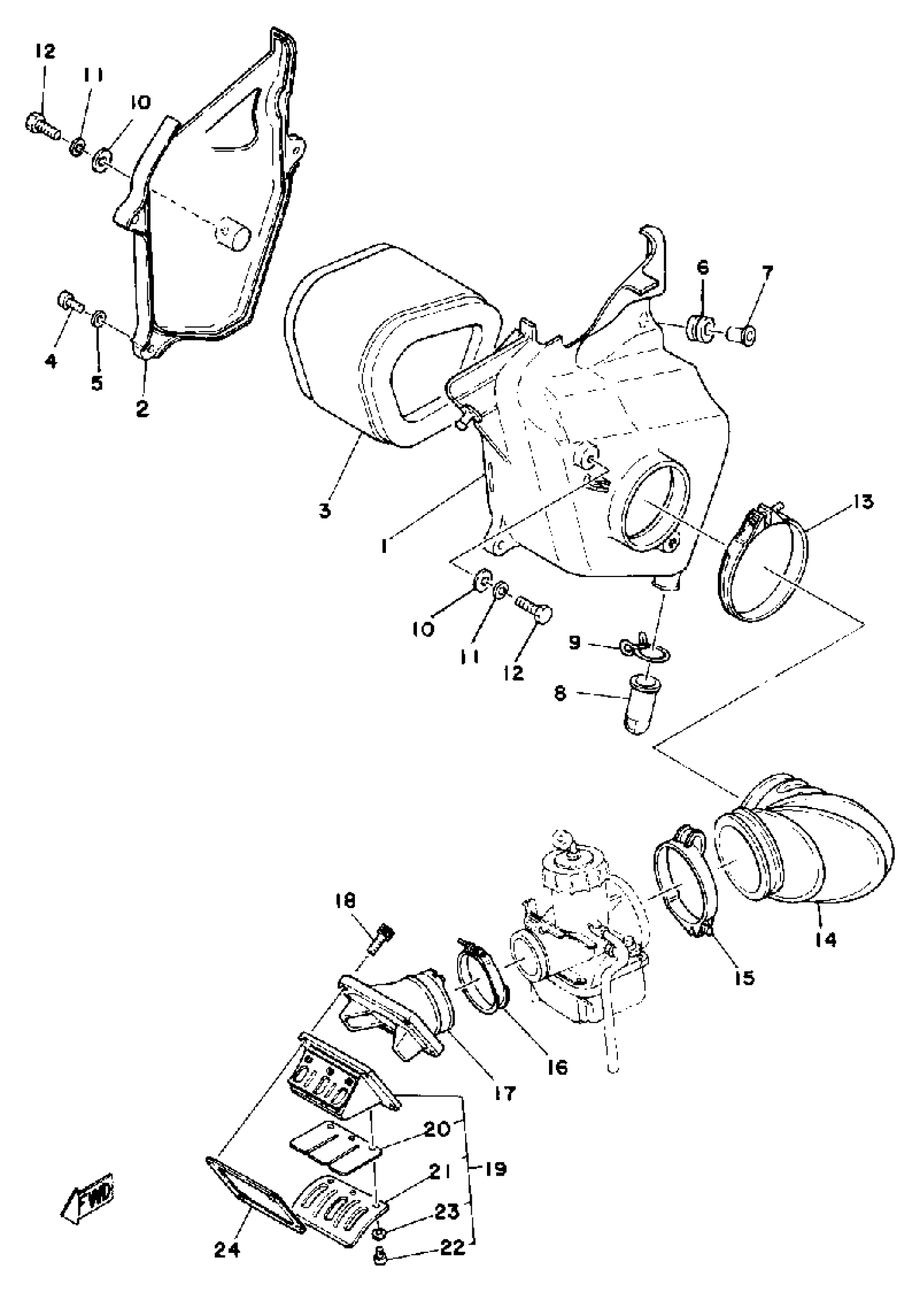

1979 Yamaha IT400 (IT400F) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(2K7-14411-01-00)

1
Out of stock

2

CAP, CLEANER CASE 1

2K7-14412-00-00

1
Out of stock

3

ELEMENT ASSEMBLY

2K7-14450-00-00

1
Out of stock

4

SCREW, PAN

98507-06014-00

1

$6.18

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

7

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

8

SEAL

1W4-14457-00-00

1
Out of stock

9

CLIP

90467-20M15-00

1

$6.23

In stock

10

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

CLAMP, HOSE(59V)

90460-85277-00

1

$12.62

In stock

14

JOINT, AIR CLNR 1

(2X5-14453-00-00)

1
Out of stock

15

CLAMP, HOSE

90460-68231-00

1
Out of stock

16

CLAMP, HOSE

90460-51109-00

1
Out of stock

17

JOINT, CARBURETOR

2K7-13565-00-00

1
Out of stock

18

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

19

REED VALVE ASSEMBLY

2X5-13610-00-00

1
Out of stock

20

. REED, VALVE

2K7-13613-00-00

1
Out of stock

21

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

22

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

23

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

24

GASKET, VALVE SEAT

80L-13621-01-00

—

$9.80

In stock
