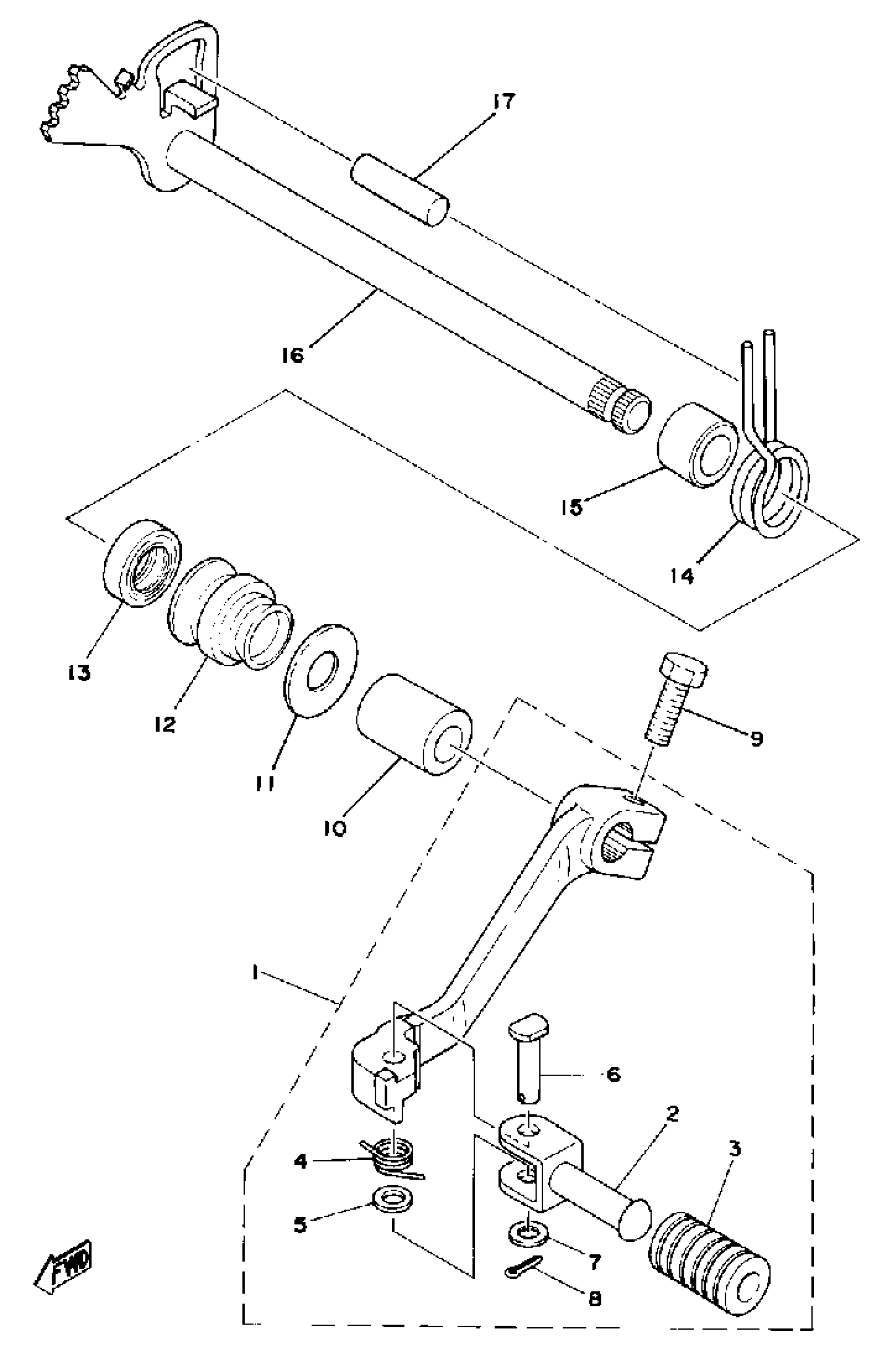

Yamaha IT400F (IT400) 1979 SHIFTER 2 Diagram

#

Description
Price

1

SHIFT PEDAL ASSY

2HF-18110-02-00

$47.56

2

PEDAL, SHIFT

1W6-18162-00-00

Unavailable

3

COVER, CHANGE PEDAL

1W6-18113-00-00

$3.65

4

SPRING, TORSION

90508-16351-00

Unavailable

5

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

6

PIN, CLEVIS

90240-06057-00

Unavailable

7

WASHER, PLAIN (646)

92990-06600-00

$1.84

8

PIN, COTTER

91490-20025-00

$1.23

9

BOLT, HEXAGON

97017-06020-00

$2.37

10

SPACER (3Y1)

90560-12191-00

$5.61

11

WASHER

90201-12588-00

$5.93

12

BOOT

214-18131-00-00

Unavailable

13

SEAL, OIL (30X)

93102-12321-00

$9.45

14

SPRING, TORSION (2K7)

90508-32374-00

$5.30

15

SPACER

90560-12171-00

Unavailable

16

SHIFT SHAFT ASSEMBLY.1

2K7-18101-00-00

Unavailable

17

PIN, DOWEL

93608-30152-00

Unavailable
