1977 Yamaha IT400D (IT400D) Kick Starter Diagram

← All diagrams

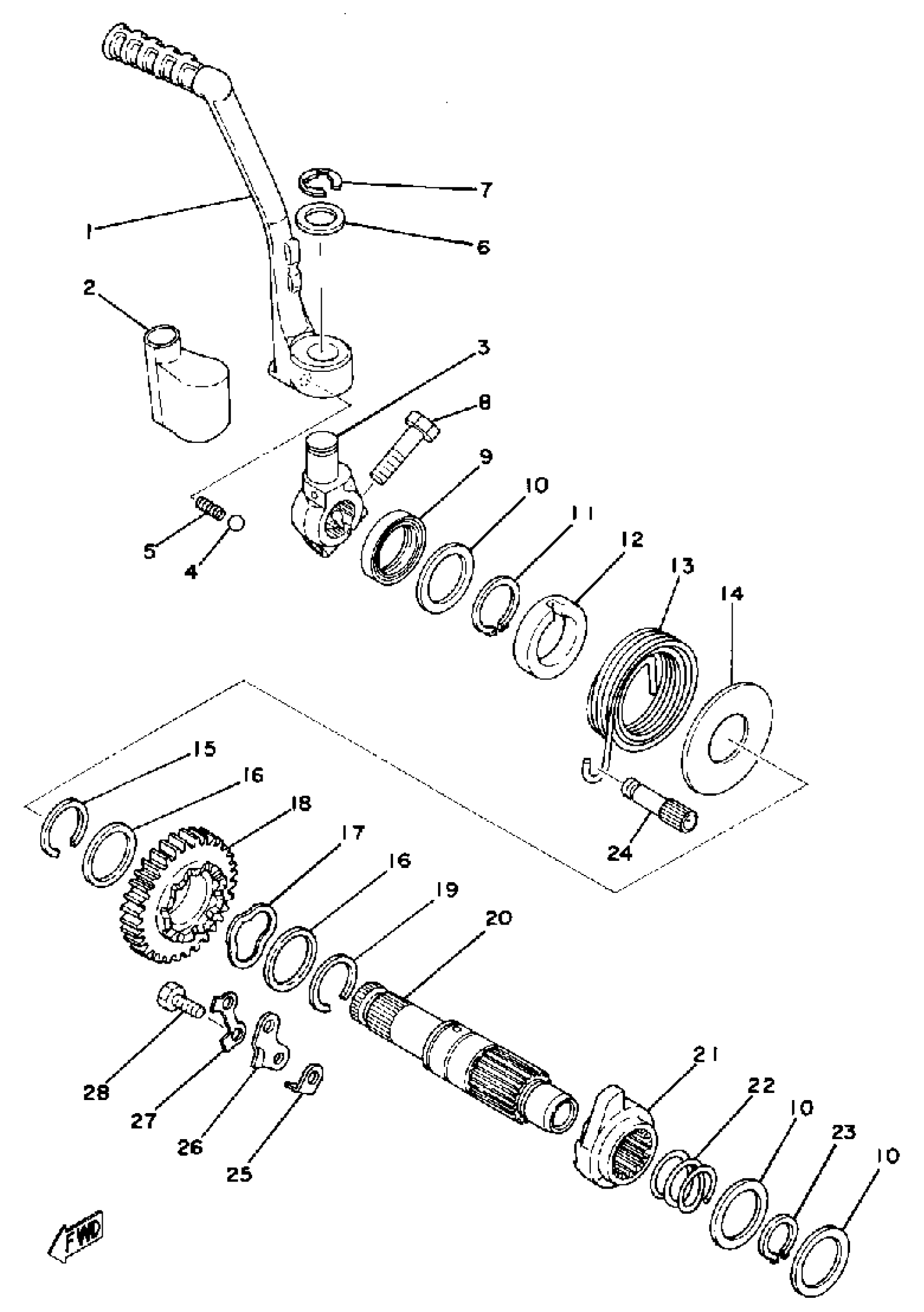

Find the part on the Kick Starter diagram for your 1977 Yamaha IT400D (IT400D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha IT400D (IT400D) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK, KICK

1W4-15611-00-00

1
Out of stock

2

COVER, KICK LEVER

1W4-15618-00-00

1
Out of stock

3

BOSS, KICK CRANK

583-15621-00-00

1
Out of stock

4

BALL (12R)

93507-32031-00

1
Out of stock

5

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

6

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

7

CIRCLIP

99006-10600-00

1

$6.91

In stock

8

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

9

OIL SEAL,SD-TYPE

93102-20309-00

1

$8.77

In stock

10

WASHER PLATE 168171160000

90201-20278-00

1
Out of stock

11

CIRCLIP(JF7)

99009-25400-00

1

$6.68

In stock

12

GUIDE, SPRING

(1M1-15664-00-00)

1
Out of stock

13

SPRING, TORSION

90508-32317-00

1
Out of stock

14

WASHER, PLATE

(90201-25637-00)

1
Out of stock

15

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

16

WASHER, PLATE(59W)

90201-253K0-00

—

$6.18

In stock

17

WASHER, WAVE

90206-25059-00

1
Out of stock

18

GEAR, KICK

1W4-15641-01-00

1
Out of stock

19

1 CIRCLIP, OUTER

93440-25027-00

1
Out of stock

20

AXLE, KICK

(1W4-15661-00-00)

1
Out of stock

21

WHEEL, RATCHET

(1W4-15671-00-00)

1
Out of stock

22

SPRING, COMPRESSION

(90501-16462-00)

1
Out of stock

23

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

24

STOPPER

(1M1-15668-01-00)

1
Out of stock

25

STOPPER

(1W4-15668-00-00)

1
Out of stock

26

GUIDE, RATCHET WHL

(1W4-15674-00-00)

1
Out of stock

27

WASHER, LOCK

(1W4-15686-00-00)

1
Out of stock

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock
