1977 Yamaha IT400D (IT400D) Crankcase Diagram

← All diagrams

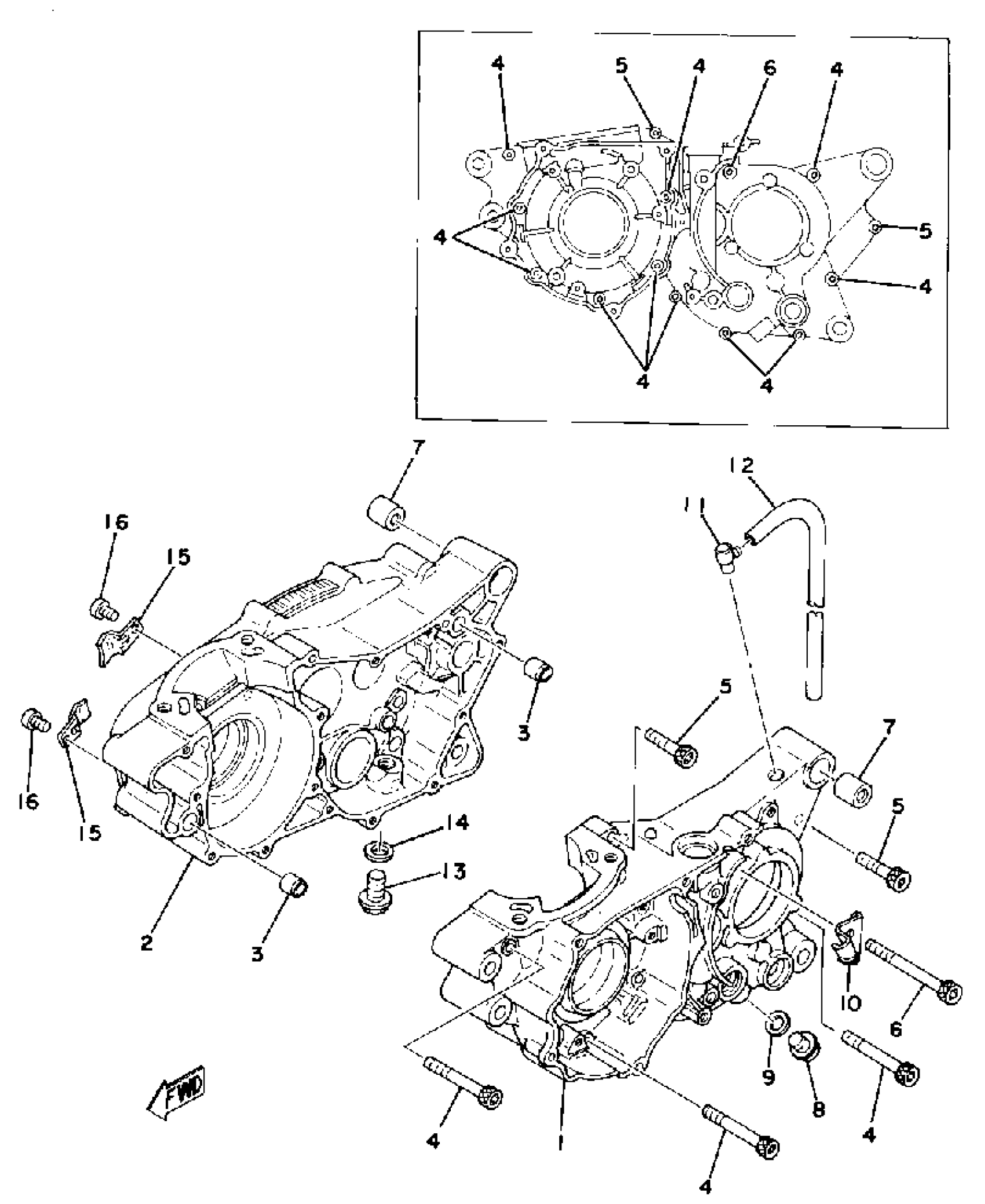

Find the part on the Crankcase diagram for your 1977 Yamaha IT400D (IT400D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha IT400D (IT400D) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1 (1M2-15111-00)

1M2-15111-01-00

1
Out of stock

1

CRANKCASE 1

(1W3-15111-00-00)

1
Out of stock

2

CRANKCASE 2

1M1-15121-00-00

1
Out of stock

2

CRANKCASE 2

(1M2-15121-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT,SOCKET

91317-06060-00

1
Out of stock

5

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

6

BOLT,SOCKET

91317-06080-00

1

$3.78

In stock

7

COLLAR

(90387-08607-00)

1
Out of stock

8

BOLT, WASHER BASED (7H3)

90105-10147-00

1

$8.75

In stock

9

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

10

CLAMP

(90462-14033-00)

1
Out of stock

11

BREATHER

583-15371-00-00

1
Out of stock

12

HOSE (L1050)

90445-072G8-00

1

$23.46

In stock

13

PLUG, STRAIGHT SCRW

90340-14048-00

1
Out of stock

14

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

15

HOLDER

434-15118-00-00

1
Out of stock

16

SCREW, PAN

98507-08010-00

—
Out of stock
