1982 Yamaha IT250 (IT250J) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1982 Yamaha IT250 (IT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

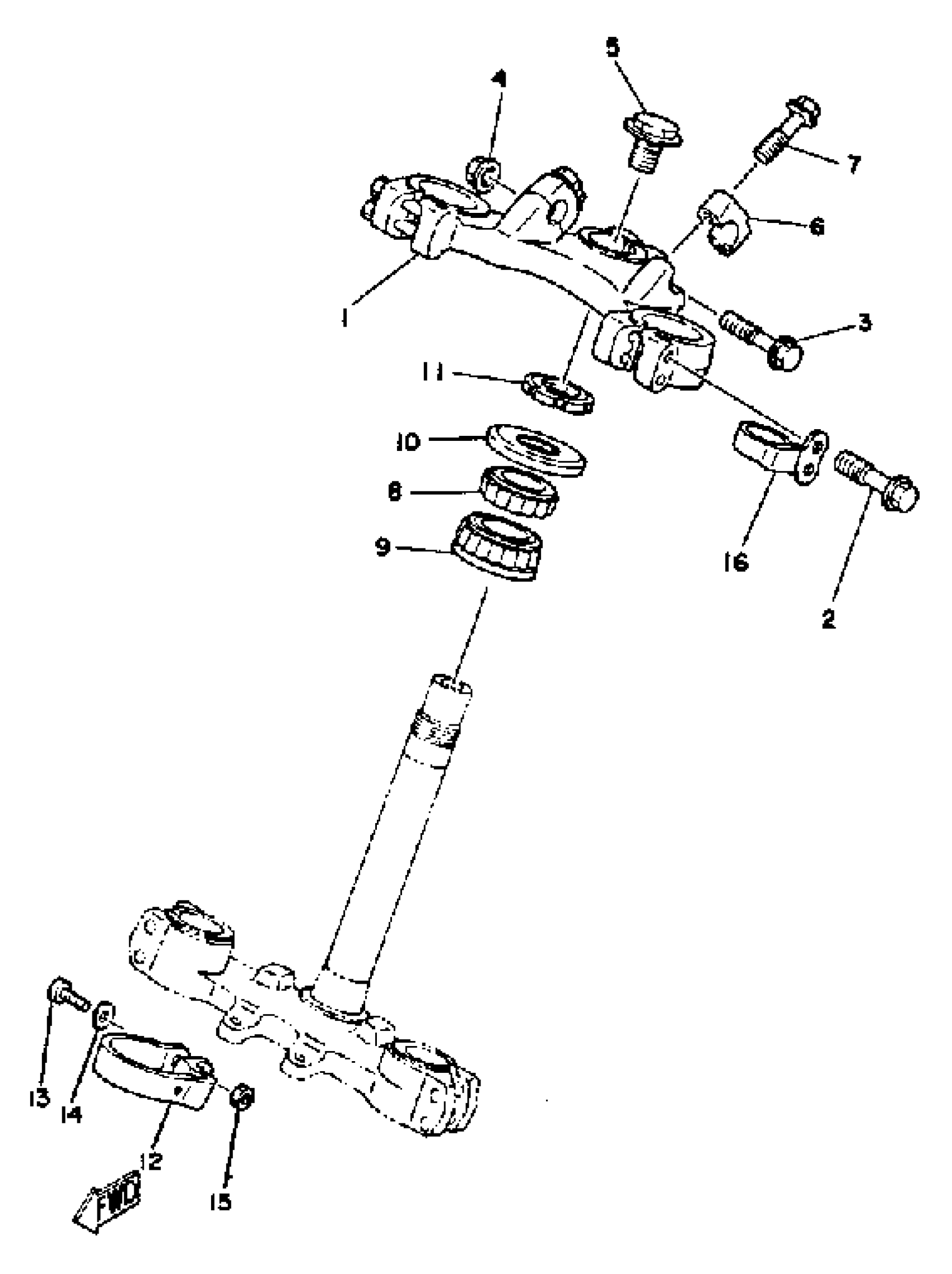

1982 Yamaha IT250 (IT250J) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CROWN, HANDLE

1W4-23435-00-98

1
Out of stock

2

BOLT, FLANGE

95814-08040-00

1

$3.15

In stock

3

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

4

NUT, FLANGE

95704-08500-00

1
Out of stock

5

1

$3.91

In stock

6

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

7

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

8

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

9

1

$60.13

In stock

10

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

11

NUT

90179-25004-00

1

$20.78

In stock

12

HOLDER, CABLE 1

1W2-23318-00-00

1
Out of stock

13

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

14

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

GUIDE, WIRE

3R4-23389-00-00

—
Out of stock
