1982 Yamaha IT250 (IT250J) Handlebar-Cable Diagram

← All diagrams

Find the part on the Handlebar-Cable diagram for your 1982 Yamaha IT250 (IT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

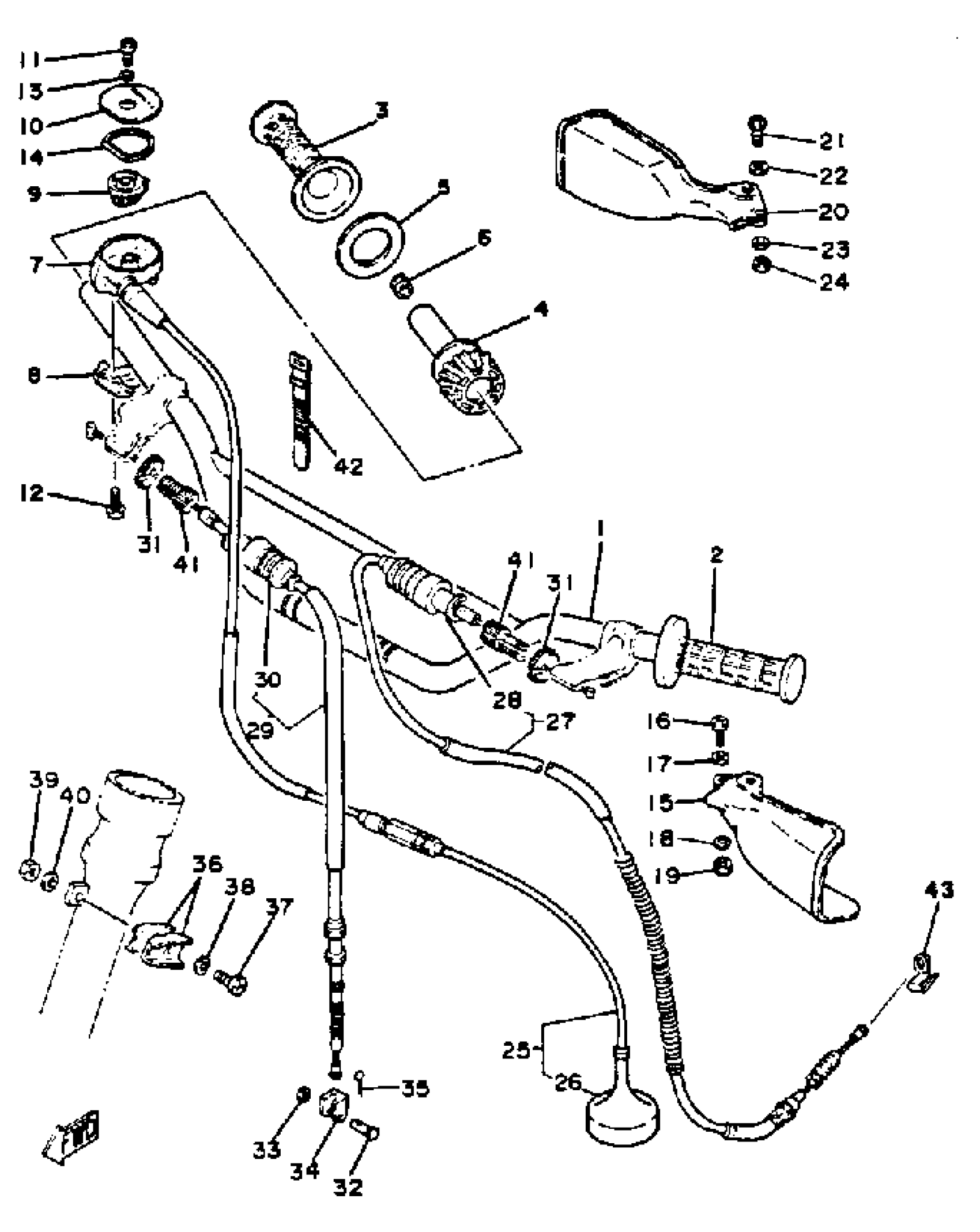

1982 Yamaha IT250 (IT250J) Handlebar-Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

2A8-26111-00-00

1

$113.06

In stock

2

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

3

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

4

TUBE, THRTL GUIDE

4V6-26243-00-00

1
Out of stock

5

RING, LEAF

4V4-26249-00-00

1
Out of stock

6

PLUG(2GU)

90338-12192-00

1

$6.18

In stock

7

CAP, GRIP UPPER

4V4-26281-00-00

1
Out of stock

8

CAP, GRIP LOWER

4V4-26282-00-00

1
Out of stock

9

GEAR, BEVEL

4V6-2628E-00-00

1
Out of stock

10

CAP, GEAR

4V4-2628F-09-00

—

$26.52

In stock

11

SCREW, BINDING

98907-05010-00

1
Out of stock

12

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

13

GASKET

90430-05009-00

1
Out of stock

14

PACKING

4V4-2628G-00-00

1
Out of stock

15

GUARD, BRUSH 1

3R9-26141-00-00

1
Out of stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

19

NUT(650)

95380-06700-00

—

$6.17

In stock

20

GUARD, BRUSH 2

3R9-26142-00-00

1
Out of stock

21

SCREW, PAN

98507-06014-00

—

$6.18

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

NUT(650)

95380-06700-00

—

$6.17

In stock

25

CABLE, THROTTLE 1

4V4-26311-00-00

1
Out of stock

26

CAP, RUBBER

510-26329-01-00

—
Out of stock

27

CABLE, CLUTCH

4V5-26335-01-00

1
Out of stock

28

BOOT, WIRE

1E6-26342-00-00

—

$26.82

In stock

29

CABLE, BRAKE

4V5-26341-00-00

1
Out of stock

30

BOOT, WIRE

1E6-26342-00-00

—

$26.82

In stock

31

NUT

90179-08030-00

—

$3.78

In stock

32

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

33

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

34

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

35

PIN, COTTER

91490-20025-00

—

$1.31

In stock

36

CLAMP (3R0)

90462-14055-00

—

$8.31

In stock

37

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

38

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

39

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

40

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

41

BOLT

90123-08002-00

—

$8.93

In stock

42

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

43

HOLDER

3R4-26393-00-00

—

$90.65

In stock
