REAR ARM

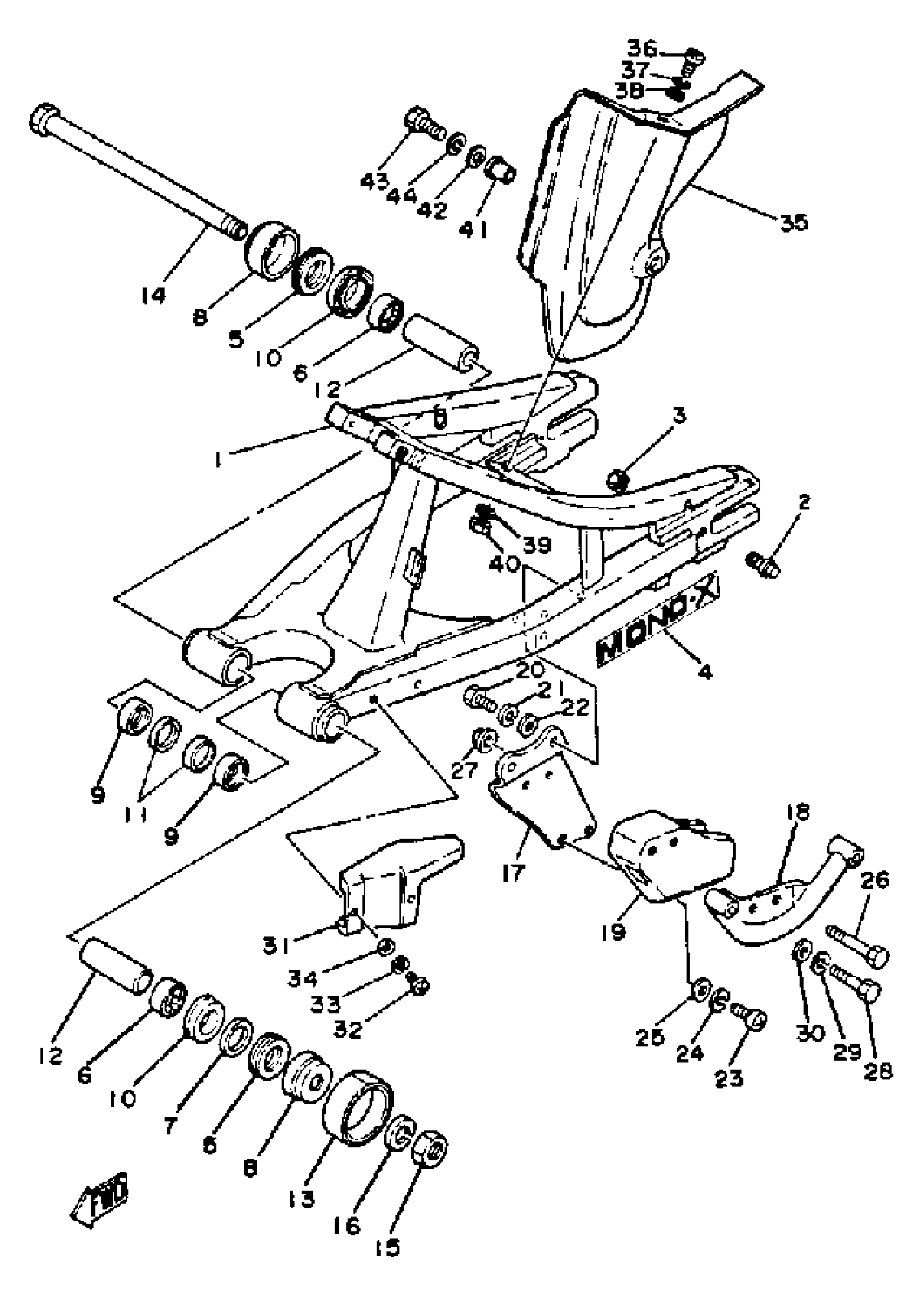

1982 Yamaha IT250 (IT250J) Rear ARM Diagram
Find the part on the Rear ARM diagram for your 1982 Yamaha IT250 (IT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
REAR ARM
(4V5-22110-00-35)
2
BOLT
90109-08599-00
3
NUT, FLANGE
95704-08500-00
4
REFLECTOR (250H)
4V4-2218A-00-00
7
WASHER, PLATE
90201-22284-04
8
COVER, THRUST2
3R4-22129-00-00
9
BUSH, SPEC''L NYLON
90386-22097-00
11
OIL SEAL, SDO-TYPE
93109-22018-00
13
SEAL, GUARD
431-22151-03-00
14
SHAFT, PIVOT
5X6-22141-01-00
15
NUT
90170-16111-00
16
WASHER, PLATE (5X6)
90201-160F6-00
17
ARM, TENSIONER
2X4-22179-00-00
18
GUARD, CHAIN
3R5-22153-00-00
33
YBS67-5 WASHER, SPRING
92990-05100-00
35
CASE, CHAIN
4V5-22311-00-00
41
COLLAR
90387-08079-00
